XGY-8L10261636
XGY-8L10261636
| Quantity: | |
|---|---|
Our products are not OEM, they are only compatible parts.
Product Description

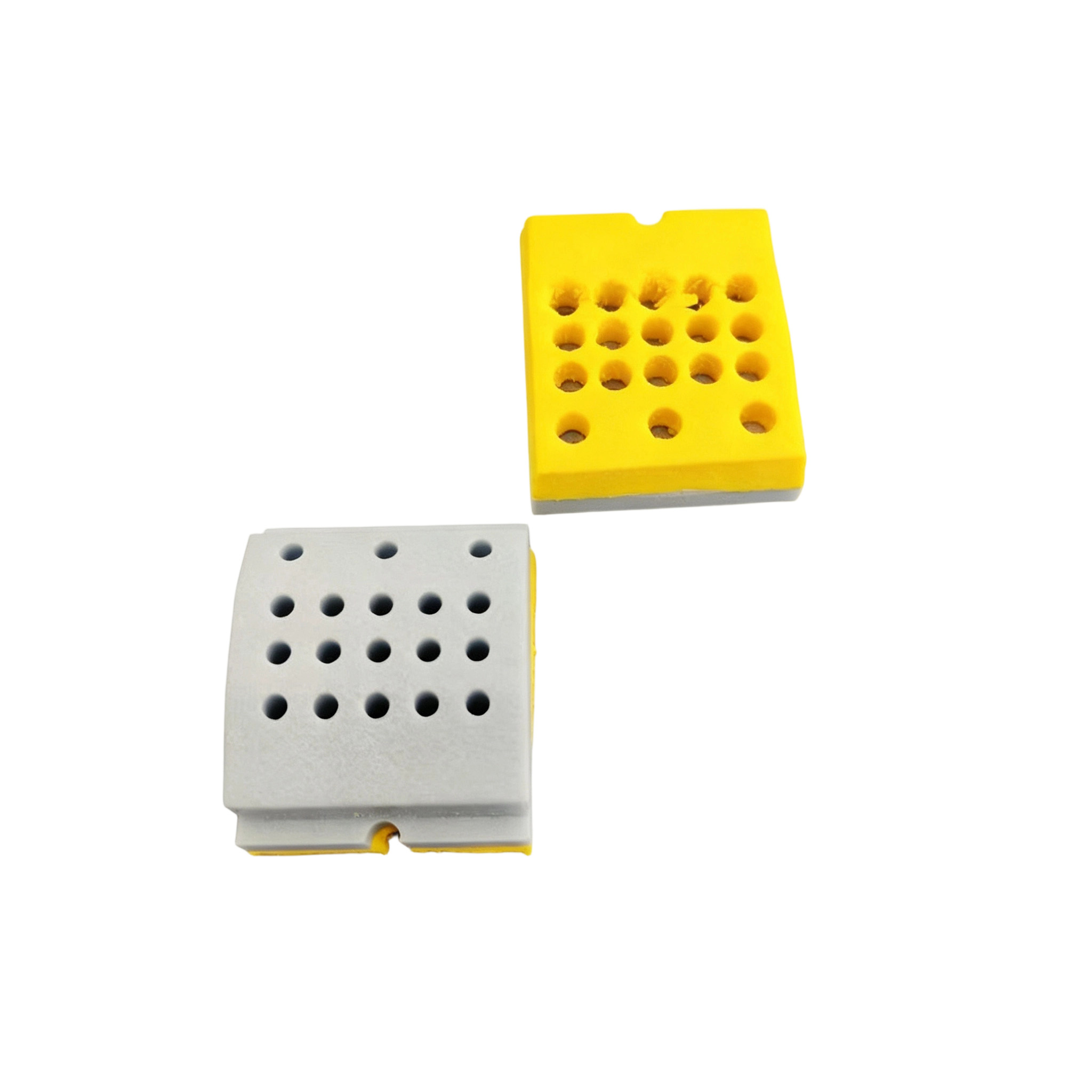

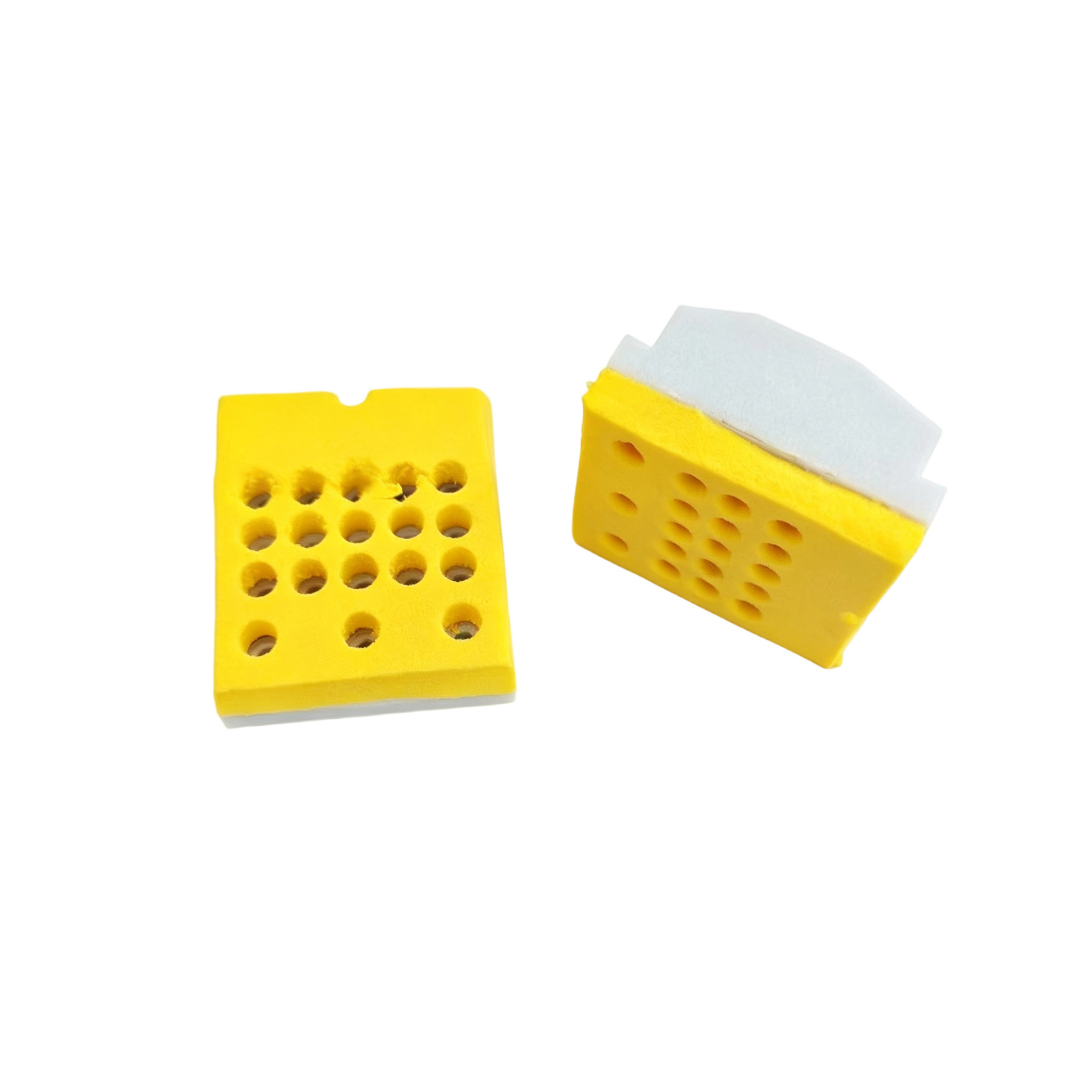

This suction pad features a curved, block-shaped structure with a regular array of small vacuum holes on its surface and an adhesive backing on the bottom. It is molded as a single piece from a wear-resistant, porous adhesive material. The part’s curved shape matches the contour of a 500-ml bottle, and the vacuum holes are evenly spaced to ensure uniform suction. It is a dedicated consumable for the bottle-removal station on Sacmi blow molding machines. The porous structure allows for stable vacuum formation and conforms to the curved surface of the bottle, preventing scratches on the PET bottle’s surface.
Application Location
The bottle retrieval station (rear suction station) in the downstream section of the Sacmi blow molding machine is used to suction the formed 500-ml PET bottles from the mold after the blow molding process is complete and transfer them to the conveyor track. It is part of the suction assembly of the blow molding machine’s bottle-discharge manipulator.
Functions
Using vacuum suction, the system picks up the molded 500-ml PET bottles, enabling the automated transfer of the bottles from the mold to the conveyor line. The vacuum vent holes distribute the suction force evenly, ensuring stable bottle pickup without drop-offs during high-speed, continuous production, and working in conjunction with the robotic arm to perform high-speed transfer operations.
Features
1. Curved contour design: The curvature is tailored to fit the 500ml bottle body, ensuring a snug fit and even force distribution, which helps prevent dents and scratches on PET bottles.
2. Porous vacuum hole array: Provides uniform suction distribution, ensuring stable bottle pickup during high-speed production and reducing bottle drop and slippage failures.
3. Specialized porous polymer material: Wear-resistant, highly resilient, fatigue-resistant, and heat-resistant, making it suitable for the operating environment of blow molding machines; does not shed particles that could contaminate the bottles.
4. Pre-applied adhesive backing allows for easy installation and removal; simply stick it in place to secure it, saving time on spare part replacement and reducing downtime.
5. Designed as a wear part for regular replacement to maintain high-speed production stability on the production line.
Why Choose Us
Company introduction
Xinguangyuan Precision Machinery Co., Ltd.Produces a large number of machine and equipment parts, as well as high-performance PET blow molding machines, filling machines, capping machines, and labeling machine precision parts. Suitable for various brands, including KRONES/SIDEL/KHS/Sacmi/Newam star/TECH-IONG/Tetra Pak Wait, you can provide a drawing or customize according to a sample. With over ten years of experience in the PET industry, we have accumulated rich R&D and manufacturing experience, and we continuously improve our processes. All spare parts we produce meet high-quality standards.
*Replacement parts are not manufactured by the original equipment manufacturer. These SPARPAE RTS parts for brands such as KRONES®, SIDEL®, KHS®, SACMI®, AROL®, SIG®, SIPA®, and TECH-LONG® are alternatives to original equipment manufacturer parts; they are primarily manufactured in China and sold worldwide. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
