Product Description

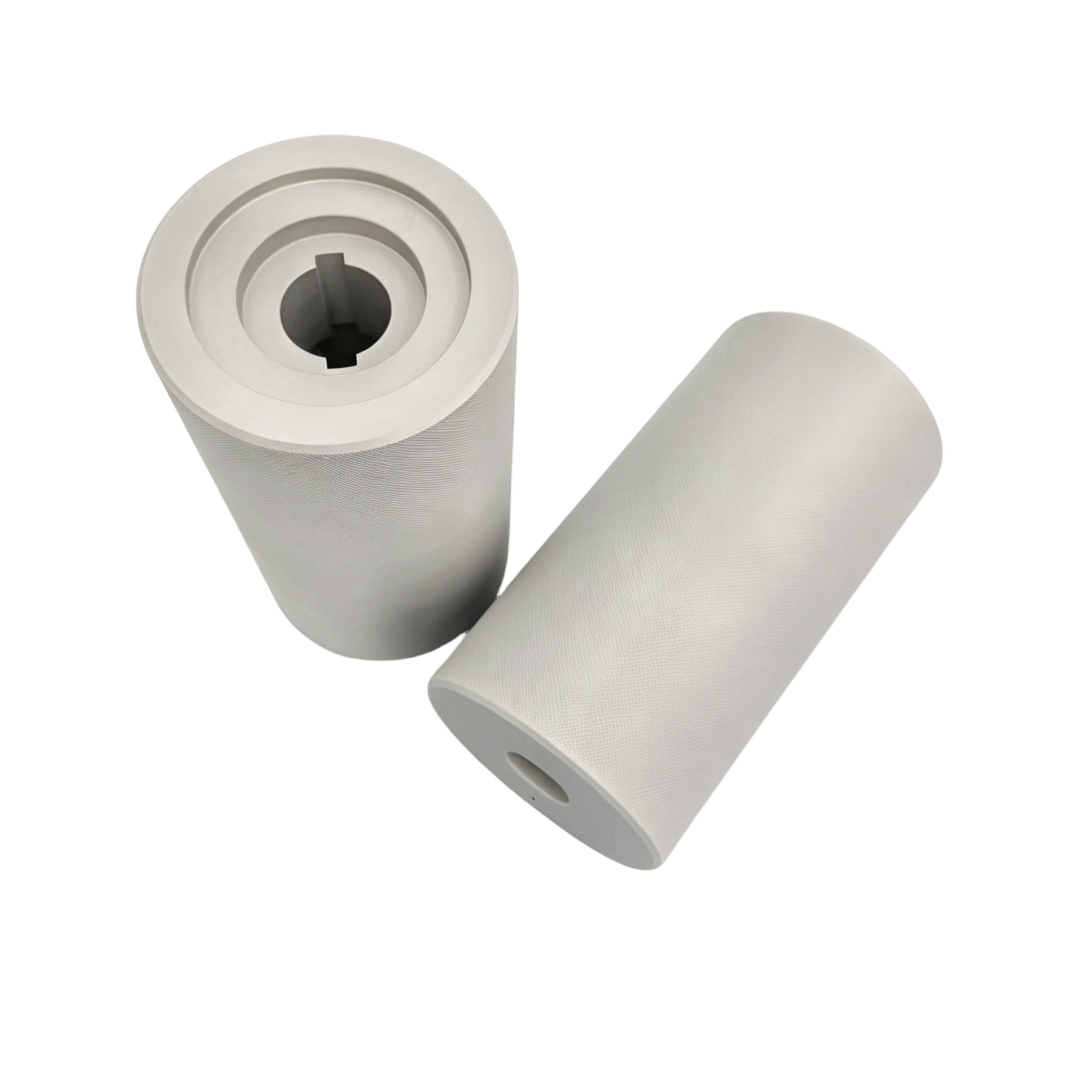

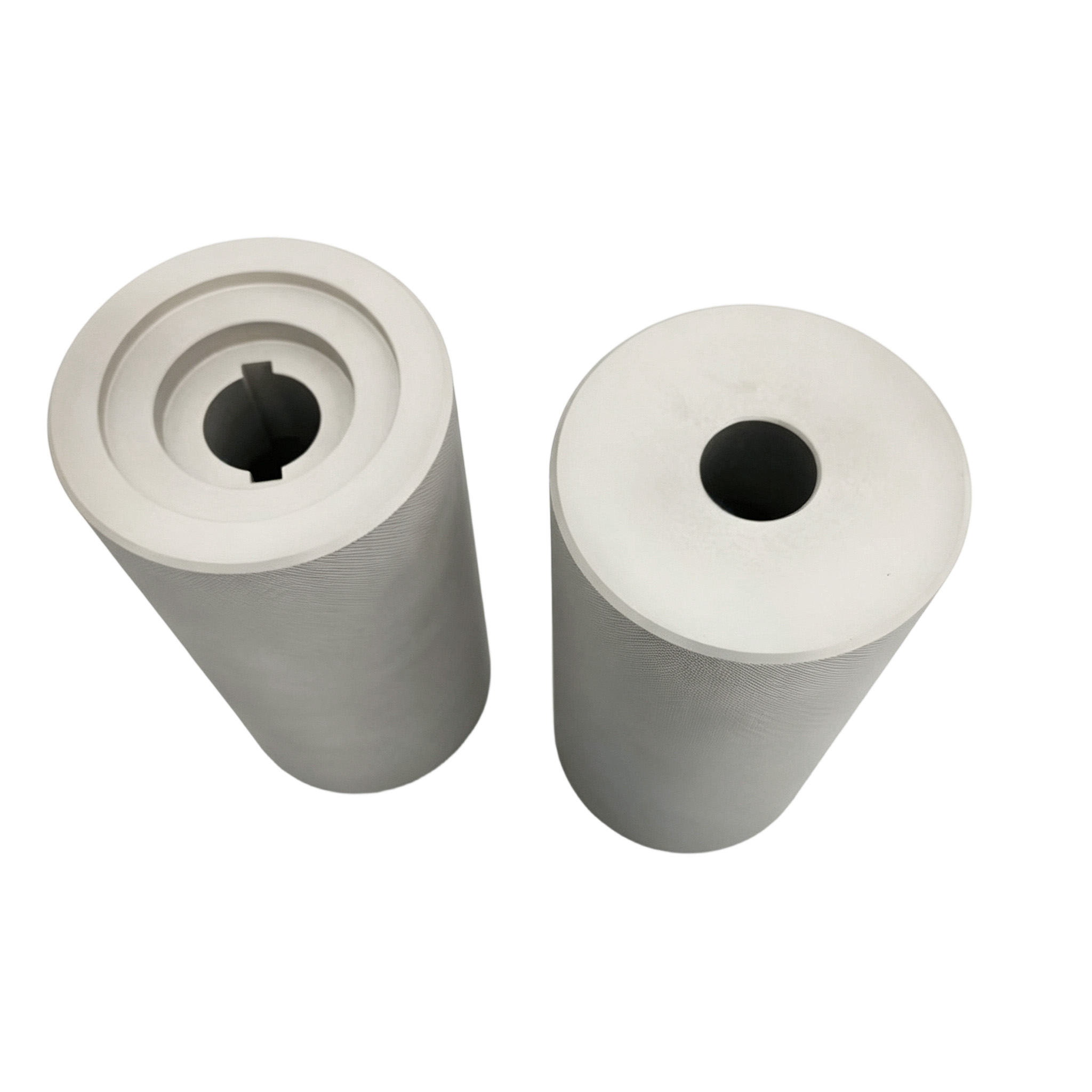

XGY-8L10000376: This conveyor roller is a one-piece metal roller with a precision knurled surface. It features integrally machined flanges at both ends and a spline drive hole in the center, allowing it to be directly mounted on Sacmi equipment drive shafts. The entire unit has undergone dynamic balancing and surface hardening for wear resistance; each roller is individually machined to ensure uniform knurling. The dimensions of the drive splines strictly conform to the original manufacturer’s specifications, ensuring high interchangeability and allowing for installation without modifying the equipment frame.
Application Location
Used in the conveying systems of Sacmi ceramic tile production lines, common installation locations include:
1. The green body conveyor table after the press and the green body transfer conveyor section.
2. The green body conveyor roller tables at the inlets and outlets of the drying kiln.
3. The tile conveyor units before and after the glazing and printing lines.
4. The pre-conveyor lines for tile sorting and packaging prior to the final output.
Functions
1. Power Transmission: As a drive roller, it transmits torque to drive the conveyor belt or ceramic green bodies at a constant speed;
2. Anti-Slip Transmission: The knurled surface increases the coefficient of friction, preventing the conveyor belt from slipping, the green bodies from veering off course, and speed loss;
3. Positioning Drive: The spline groove structure at the end engages with the equipment’s drive shaft to ensure synchronized transmission and maintain a consistent speed along the entire conveyor line;
4. Support and Bearing: The roller body supports the weight of the green bodies and maintains a level conveying surface.
Features
1. Original Equipment Manufacturer (OEM) Size Interchangeability: Part number XGY-8L10000376; the outer dimensions, splines, and length and diameter are fully compatible with Sacmi equipment, allowing for direct replacement of old rollers;
2. Precision-patterned wear-resistant surface: A special knurling process ensures stable friction, long wear life, and resistance to smoothing;
3. Dynamic balancing: Factory-calibrated dynamic balancing minimizes vibration during high-speed rotation, reducing the risk of green body shaking and chipping;
4. One-piece construction: The roller and both end flanges are machined as a single unit, ensuring high strength and resistance to breakage or deformation;
5. Dust-resistant design: Suitable for high-dust environments in ceramic workshops; the knurled surface prevents powder buildup and jamming, extending maintenance intervals;
6. Reliable power transmission: Built-in spline drive holes ensure stable torque transmission, preventing slippage or speed fluctuations, and guaranteeing a stable production line cycle.
