Our products are not OEM, they are only compatible parts
XGY-8L70004263
XGY-8L70004263
| Quantity: | |
|---|---|
Our products are not OEM, they are only compatible parts.
Product Description

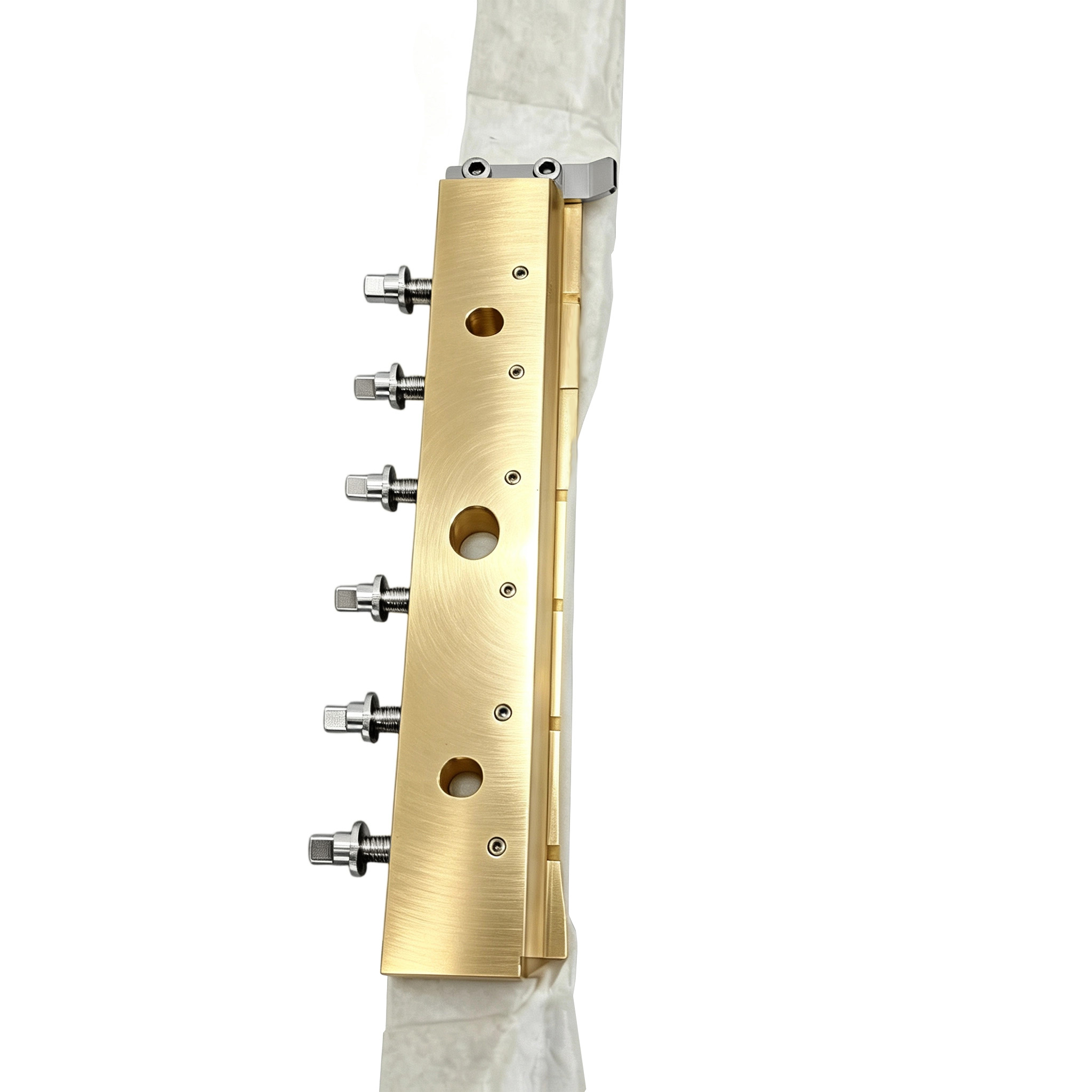

1. Brass tool holder body: A long, vertical block with a brushed brass finish, designed to support the cutting edge, distribute heat evenly, and provide a mounting reference.

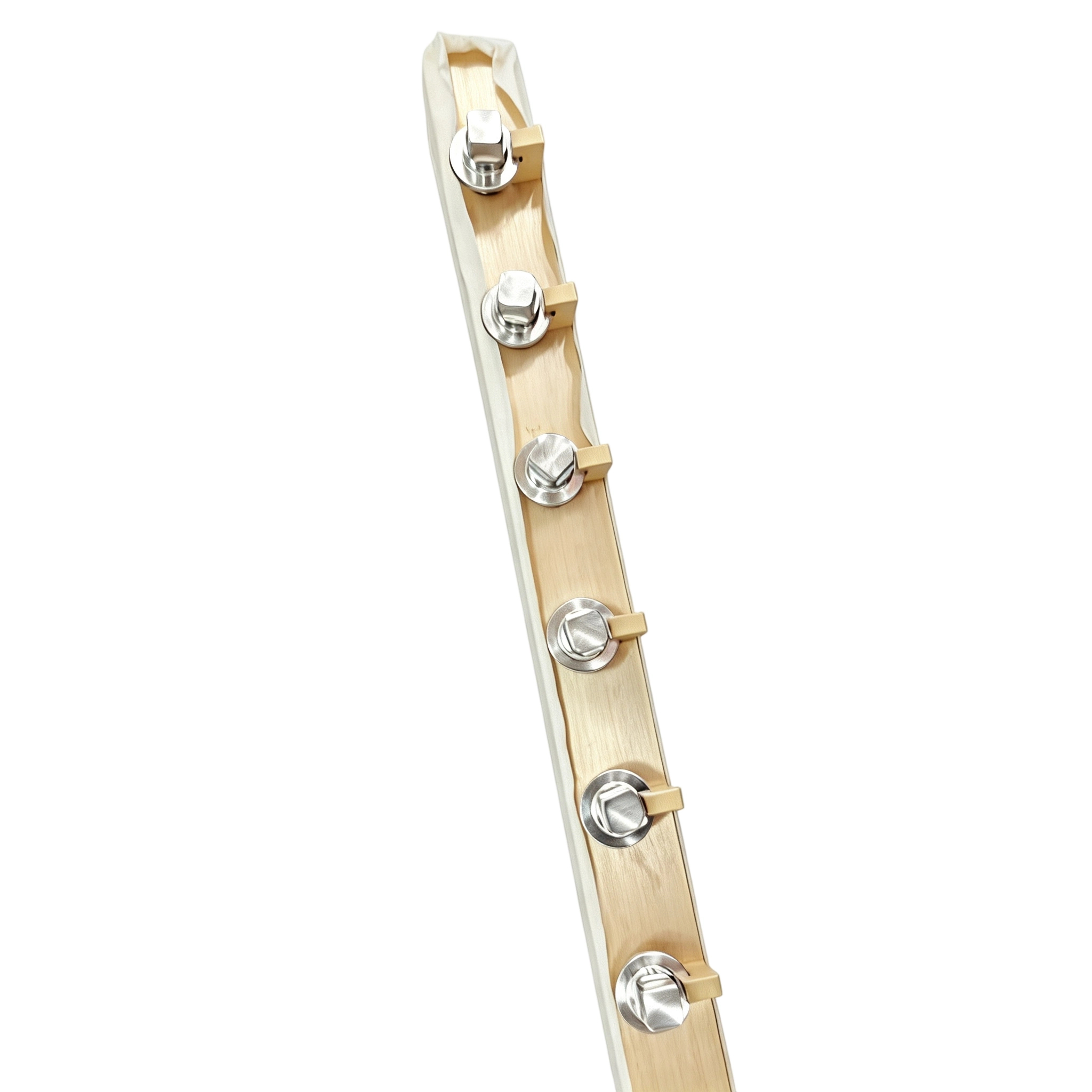

2. 6 equidistant adjustment bolts (protruding from the left side, hex/knurled heads with threads): Arranged in a straight line along the length of the tool, used for independent fine-tuning of the clearance and parallelism between the cutting edge and the work surface.
3. 3 large axial round holes (front): Distributed along the length of the blade body, these are used to insert heating rods or channel heat-conducting media, ensuring uniform temperature across the entire blade.
4. 4 small countersunk screw holes (front, along the centerline): Used to secure the blade lip clamping plate and blade lip to the blade holder.
5. Full-length cutting lip groove on the right side: Contains a thin, silvery-white cutting edge that makes direct contact with the rubber roller or substrate; this is a replaceable wear part.
6. Silver clamping block on top: Secured with two hex socket screws to mount the entire blade body to the machine’s swing arm or mounting bracket.
Application Location
Based on its structure and the typical installation locations of similar SACMI components, this adhesive scraper is most commonly found in the following adhesive application stations:
Hot-melt labeling machines (SACMI Rotary / Modular Labeler) — The adhesive scraping station on the outer side of the adhesive roller, which scrapes the hot-melt adhesive on the roller into a uniform film and transfers it to the edge of the label stock and the overlap area.
Functions
1. Quantitative Adhesive Scraping: Removes excess hot melt adhesive from the adhesive roller or film, retaining only a uniform adhesive layer of the set thickness.
2. Wide-Width Uniform Coating: Six independent fine-tuning points allow for segment-by-segment leveling, compensating for blade straightness, roller surface runout, and thermal deformation to ensure consistent adhesive application across the entire width.
3. Heat Retention and Anti-Condensation: Built-in heating channels and heating elements within the knife holder maintain the hot melt adhesive at its proper melting viscosity across the entire coating width, preventing condensation, stringing, and adhesive breaks at the edges.
4. Transfer Lamination: Transfers the controlled adhesive film onto labels, nonwoven fabrics, or substrates to complete bonding, splicing, or lamination.
Features
1. Brass blade holder: Fast heat conduction, uniform temperature distribution, non-stick to hot melt adhesive, easy to clean, and corrosion-resistant.
2. 6-point independent fine adjustment: Allows for segment-by-segment parallelism adjustment even with long blade widths, providing better adhesive film consistency than single-point clamping scrapers, and is suitable for high-speed continuous production.
3. Integrated Heating: Heating holes are directly machined into the blade holder, bringing the temperature distribution close to the blade lip and eliminating the need for an external heating block.
4. Replaceable Blade Lip: The thin blade edge is a wear part; when worn, only the blade lip needs to be replaced while retaining the brass blade holder, resulting in low maintenance costs.
