Our products are not OEM, they are only compatible parts
XGY-8L10000945
XGY-8L10000945
| Quantity: | |
|---|---|
Our products are not OEM, they are only compatible parts.
Product Description

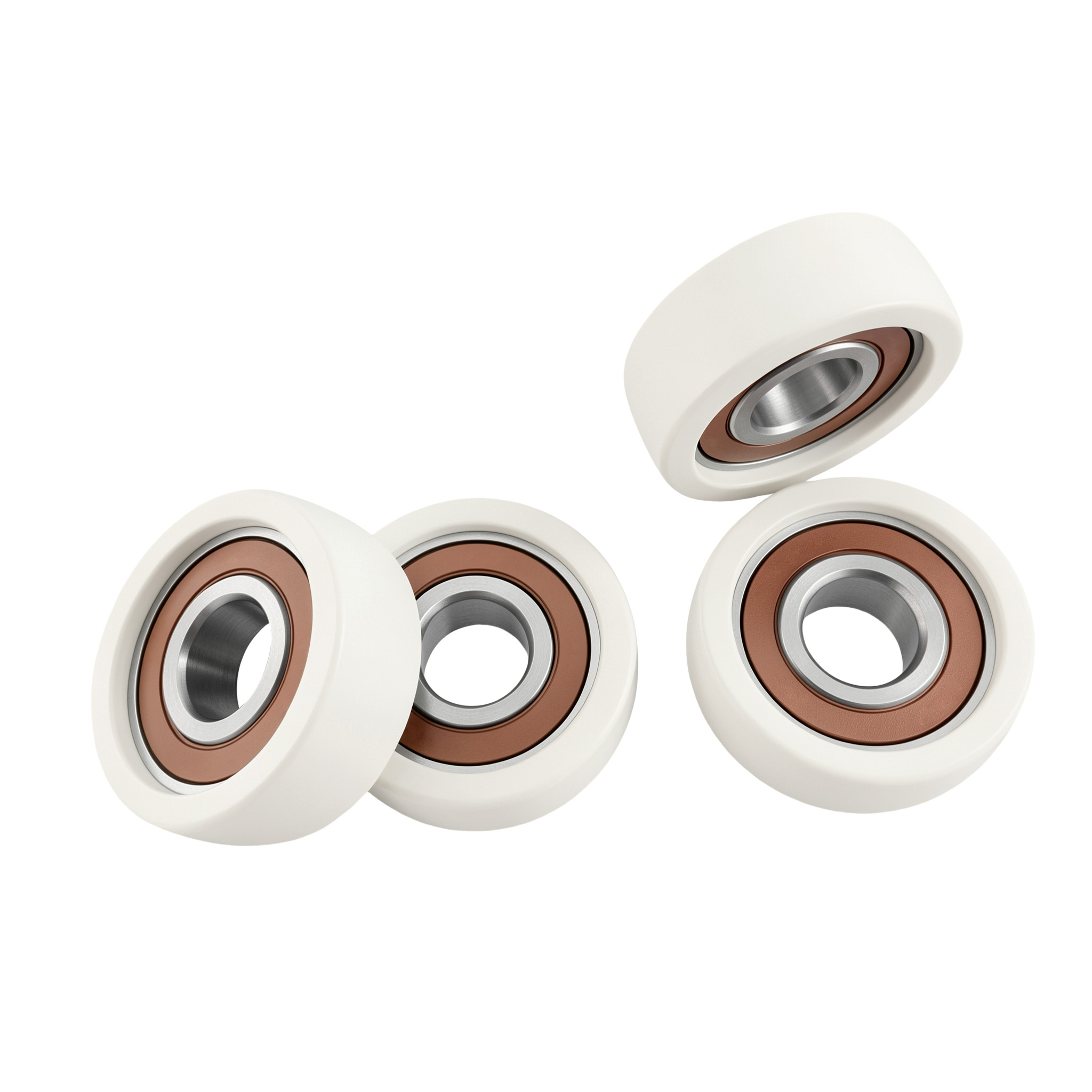

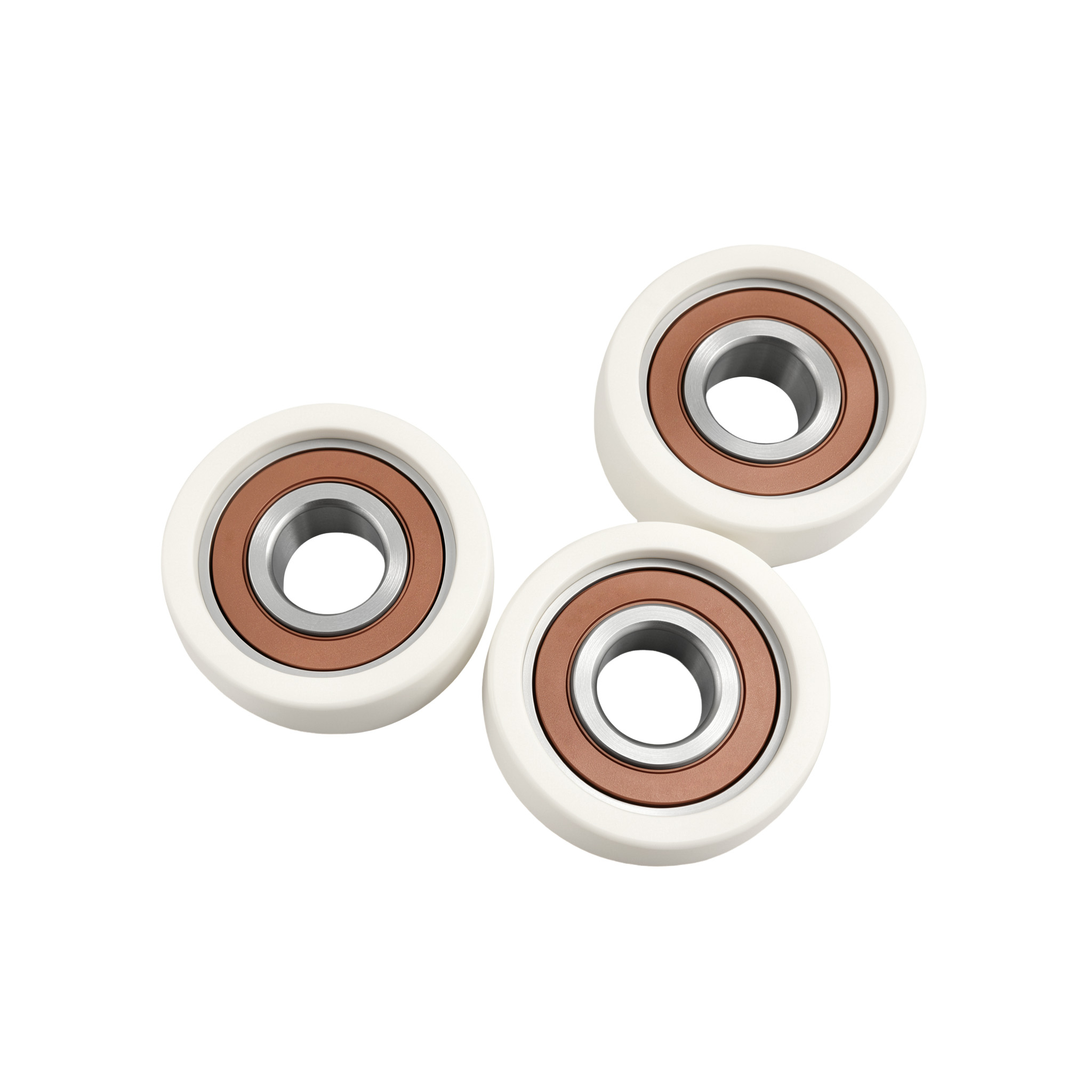

This product features a built-in precision NSK deep-groove ball bearing with a brown, high-temperature-resistant sealed cap. The outer ring of the bearing is encased in a one-piece injection-molded white polymer material; the rubber coating is tightly bonded to the bearing and is resistant to peeling. The unit features a wheel-type design, with an inner bore for securing the shaft and an outer circumference serving as the rolling contact surface. It rotates smoothly, combining the rotational precision of the bearings with the protective properties of the outer rubber wheel, and is classified as a replacement part for equipment.
Application Location
These are commonly used in beverage bottle-blowing machines, filling production lines, automated conveyor tracks, and mechanical side-guiding mechanisms. They are installed in the mold opening and closing assembly (clamping mechanism) of a bottle-blowing machine’s turret as guide follow-up wheels for mold opening and closing. During high-speed, continuous rotational production, the wheels roll along a fixed cam track, driving the rapid opening and closing of the mold.
Functions
1. Guide Support: Provides limit stops and guidance for moving parts, withstands radial loads, and ensures smooth operation of the mechanism;
2. Rolling Transmission: Enables low-friction rotation through internal precision bearings, reducing friction during mechanism movement;
3. Cushioning and Protection: The outer white rubber coating prevents direct metal-to-metal friction, protects the guide rails and workpieces, and reduces impact;
4. Tracking and Positioning: Follows the mold’s movements during the mold opening and closing cycle to ensure positioning accuracy.
Features
1. Wear-resistant and surface-friendly: The outer layer is coated with a polymer that prevents scratches on metal guide rails and mold surfaces;
2. Smooth operation: Built-in precision bearings ensure low rotational resistance and stable rotation even at high speeds;
3. Temperature and corrosion resistance: The coating material is oil- and chemical-resistant, making it suitable for the high-temperature operating environments of bottle-blowing equipment;
4. Shock Absorption and Noise Reduction: Produces less operational noise than metal rollers and absorbs impact during movement;
5. One-Piece Construction: The rubber coating is firmly bonded to the bearings, preventing delamination; assembly is simple, allowing for direct replacement;
6. Sealed and Dust-Proof: The bearings feature built-in seals that prevent dust and oil from entering the bearing interior, extending service life.
Why Choose Us
Company introduction
Xinguangyuan Precision Machinery Co., Ltd.Produces a large number of machine and equipment parts, as well as high-performance PET blow molding machines, filling machines, capping machines, and labeling machine precision parts. Suitable for various brands, including KRONES/SIDEL/KHS/Sacmi/Newam star/TECH-IONG/Tetra Pak Wait, you can provide a drawing or customize according to a sample. With over ten years of experience in the PET industry, we have accumulated rich R&D and manufacturing experience, and we continuously improve our processes. All spare parts we produce meet high-quality standards.
*Replacement parts are not manufactured by the original equipment manufacturer. These SPARPAE RTS parts for brands such as KRONES®, SIDEL®, KHS®, SACMI®, AROL®, SIG®, SIPA®, and TECH-LONG® are alternatives to original equipment manufacturer parts; they are primarily manufactured in China and sold worldwide. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
