XGY-8L10362524
XGY-8L10362524
| Quantity: | |
|---|---|
Our products are not OEM, they are only compatible parts.
Product Description

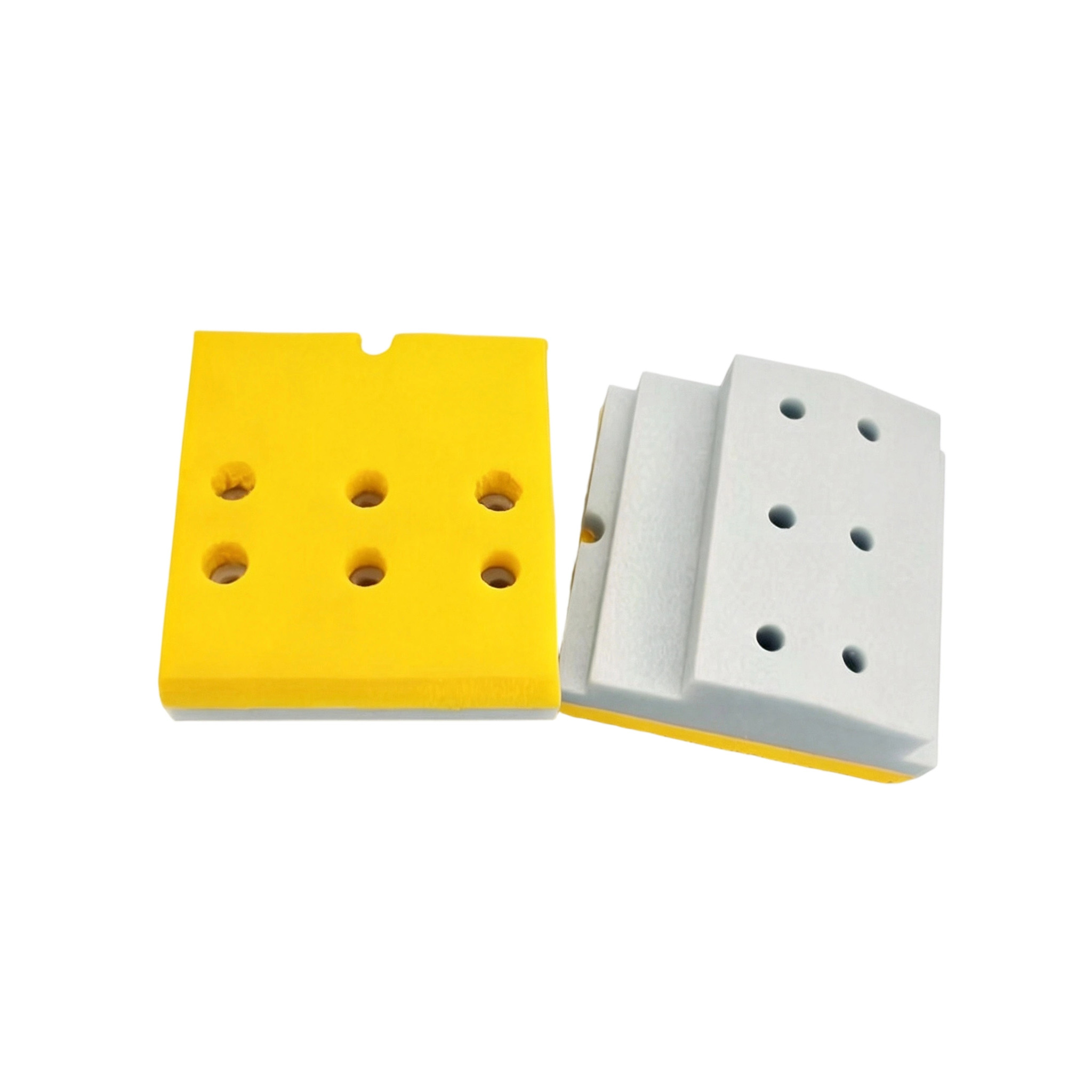

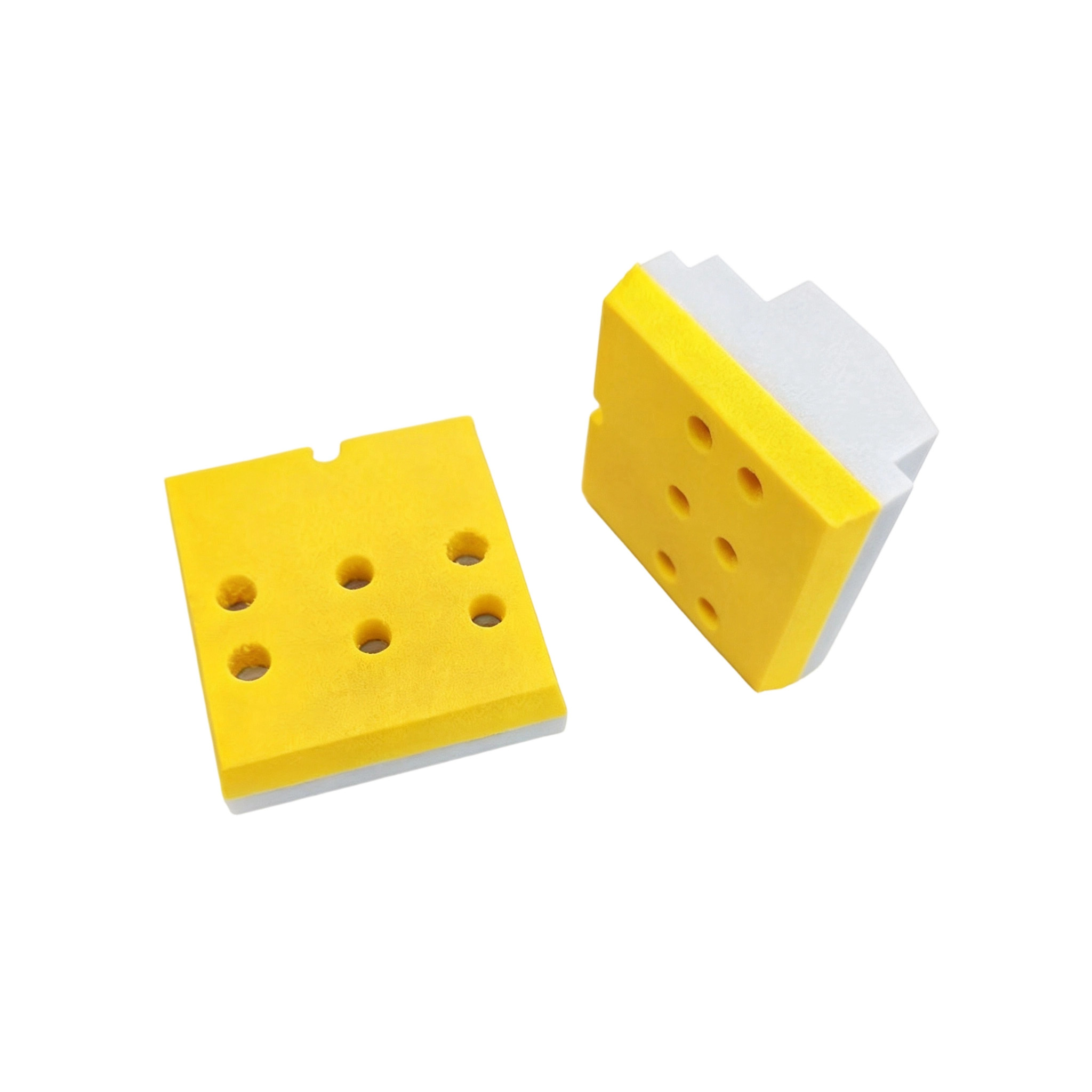

This suction pad features a stepped, one-piece design. One side consists of gray, wear-resistant vacuum foam with six mounting holes pre-drilled in the plate; the other side is a composite layer of yellow, porous vacuum foam. The foam is breathable and provides a tight seal, with internal vacuum airflow channels. Once connected to the vacuum line, a negative pressure is generated on the sponge surface, firmly holding the PET preform in place. The part’s dimensions and opening size are specifically designed for 350-ml preforms, making it a replacement part for the preform feeding station of Sacmi blow molding machines.
Application Location
Product Number XGY-8L10362524, designed for SACMI rotary PET bottle blow molding machines, for use at the front end of the preform feeding/conveying station (front suction station). Mounted on the preform transfer manipulator or preform retrieval mechanism, it is responsible for gripping and conveying 350 mL PET preforms before they enter the heating oven.
Functions
1. Vacuum Suction of Preforms: A vacuum is applied to pick up the PET preforms using the negative pressure generated by the sponge surface;
2. Preform Transfer: The preforms are transferred from the feed chute to the heating track, completing the loading process;
3. Positioning and cushioning: The flexible sponge makes contact with the preform to position it, cushioning the impact of contact and preventing scratches on the preform;
4. Compatibility with 350 ml preforms: The outer contour matches the curved surface of this preform size, ensuring a snug fit during suction.
Features
1. Gentle adhesion that does not damage preforms: The yellow, porous sponge contact surface ensures a soft touch that will not scratch the surface of PET preforms;
2. Excellent vacuum sealing: The porous, breathable sponge maintains stable negative pressure, preventing preforms from dropping during handling;
3. Wear-resistant and durable base material: The white engineering plastic substrate is heat-resistant and resistant to deformation, making it suitable for bottle-blowing machine workshop conditions;
4. Specification-specific: Designed specifically for 350ml preforms, with a contoured fit that ensures even adsorption force;
5. Easy to install, remove, and replace: Pre-drilled mounting holes allow for direct replacement of old parts; each replacement kit contains 4 pieces;
6. Aging resistance: The sponge withstands high temperatures, resists hardening and flaking, reduces contamination of preforms, and extends service life.
