Product Description

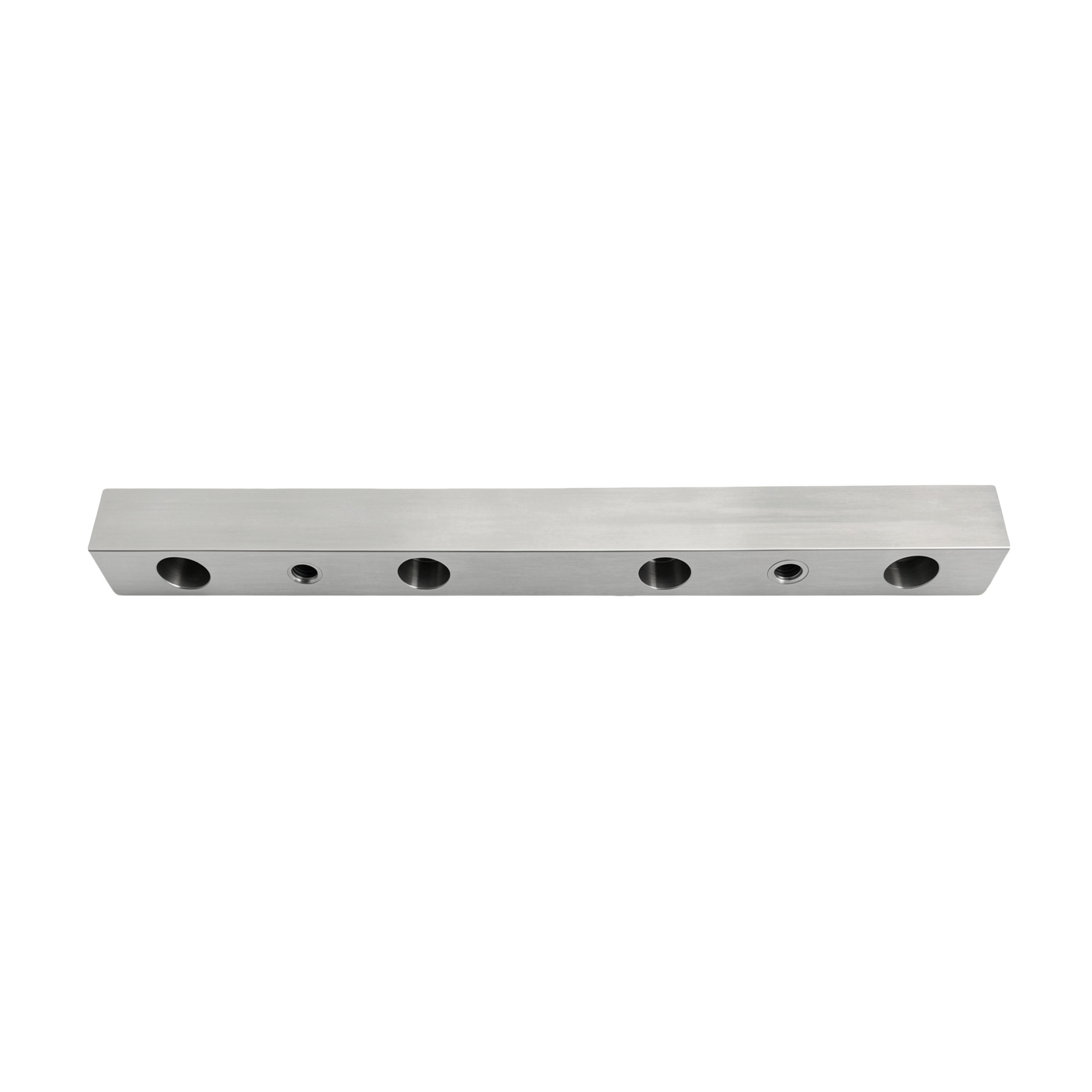

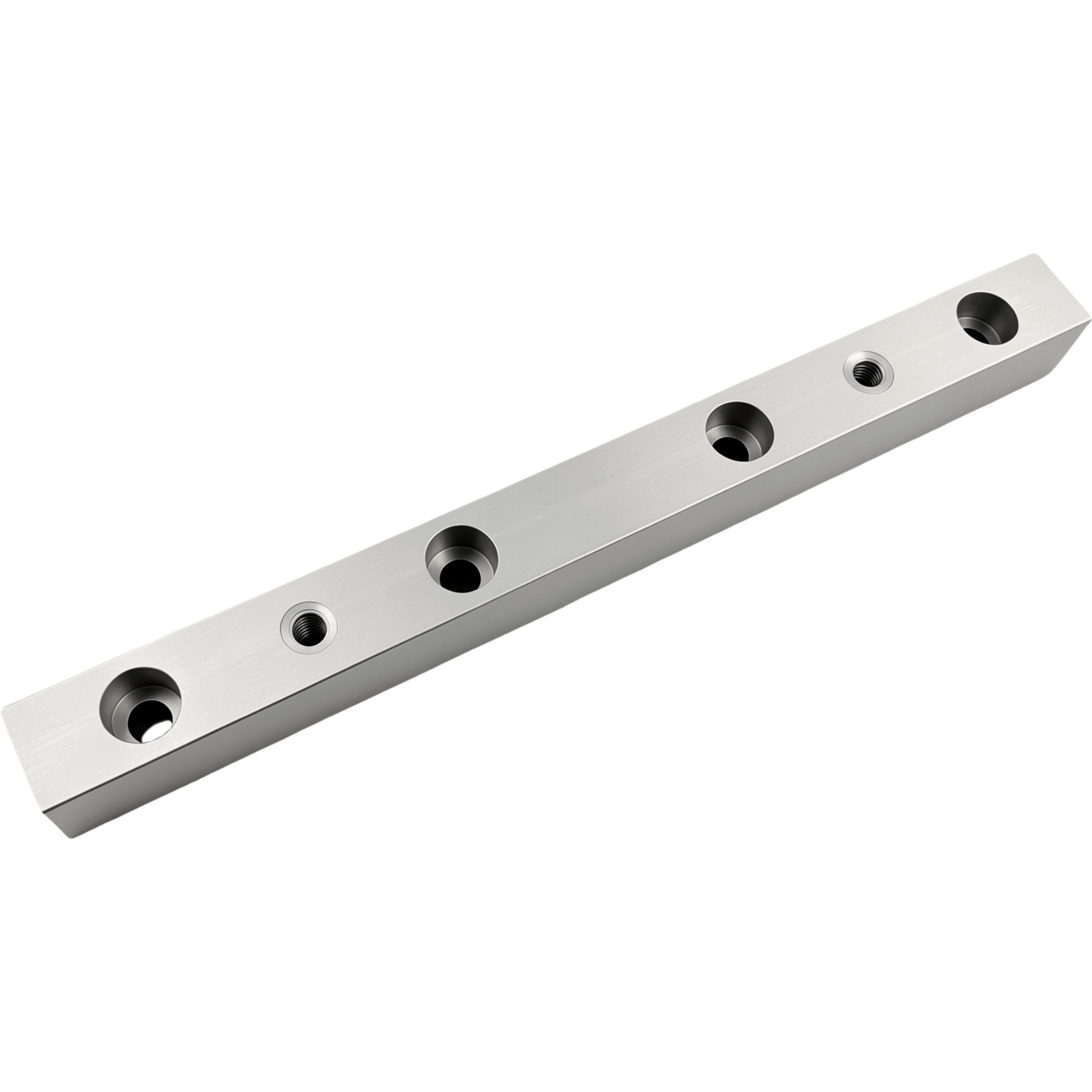

Product Name: SACMI CCM Bottle Cap Machine iSlit Anti-Theft Ring Cutting Rotating Blade
Part Number: XGY-8L10006688 (abbreviated as 8L10006688)
This blade is a rotating ring-cutting moving blade specifically designed for SACMI CCM compression-molding cap production equipment. It is paired with stationary blades of the same model series to form a ring-cutting blade set, used for cutting the tamper-evident rings on HDPE beverage caps. It is compatible with 28mm and 30mm diameter mineral water and beverage bottle caps. The blade body is manufactured from high-alloy tool steel with precision-ground cutting edges and can be treated with a wear-resistant coating upon request; The assembly features high positioning accuracy, and once the moving and stationary blades are paired, the cutting gap is controlled to the micrometer level, ensuring smooth, burr-free cuts on bottle caps and uniform thickness of the tamper-evident bridge, meeting the demands of high-speed cap production. As a consumable spare part for bottle cap production lines, replacement requires pairing and calibration of the moving and stationary blades to prevent issues such as burrs, unstable bridge breaks, or blade chipping.
Application Location
The product with code XGY-8L10006688 is a spare part for the anti-tamper ring cutting blade (iSlit cutting blade, used in conjunction with a stationary blade) of the Sacmi bottle cap equipment (CCM compression molding machine).
This spare part is designed for Sacmi’s CCM series compression molding cap machines and is used to cut the tamper-evident bridge (tamper-evident ring notch) on plastic bottle caps. It serves as a core consumable cutting component in beverage cap (mineral water/beverage cap) production lines.
Functions
1. Working in conjunction with a stationary cutter, it cuts the notch in the tamper-evident ring at the bottle cap forming station, creating a uniform connecting bridge between the bottle cap body and the tamper-evident ring;
2. Precisely controls the residual thickness of the tamper-evident bridge to ensure the tamper-evident ring breaks when opened but remains securely connected when unopened;
3. High-speed rotary cutting ensures smooth, burr-free cuts during high-volume continuous production, reducing the defect rate of bottle caps;
4. The cutter body positioning structure ensures assembly repeatability, maintains a micron-level clearance between the moving and stationary cutters, and provides stable performance for high-speed production of 28/30-mouth HDPE beverage bottle caps.
Features
1. Dedicated Compatibility: A cutting blade specifically designed for the Sacmi CCM iSlit cap-making machine system, part number 8L10006688, featuring precise positioning and excellent interchangeability.
2. High Cutting Edge Precision: The cutting edge is precision-ground to consistently control the residual thickness of the anti-theft bridge, ensuring burr-free cuts and consistent performance in both cap opening and ring separation.
3. Superior Material Properties: Made from original high-alloy tool steel with an optional wear-resistant coating, it offers excellent wear resistance and chip resistance, making it suitable for long-term, high-speed production of HDPE bottle caps.
4. Matched Cutting Design: Must be ground in conjunction with a stationary blade from the same series to control the gap between the moving and stationary blades at the micron level, thereby reducing issues such as unstable bridge breaking and blade chipping.
5. Strong Adaptability to Operating Conditions: Capable of supporting continuous, high-speed operation on bottle cap production lines, reducing the frequency of downtime for blade changes and minimizing production defects.
