XGY-8L10006690
XGY-8L10006690
| Quantity: | |
|---|---|
Our products are not OEM, they are only compatible parts.
Product Description

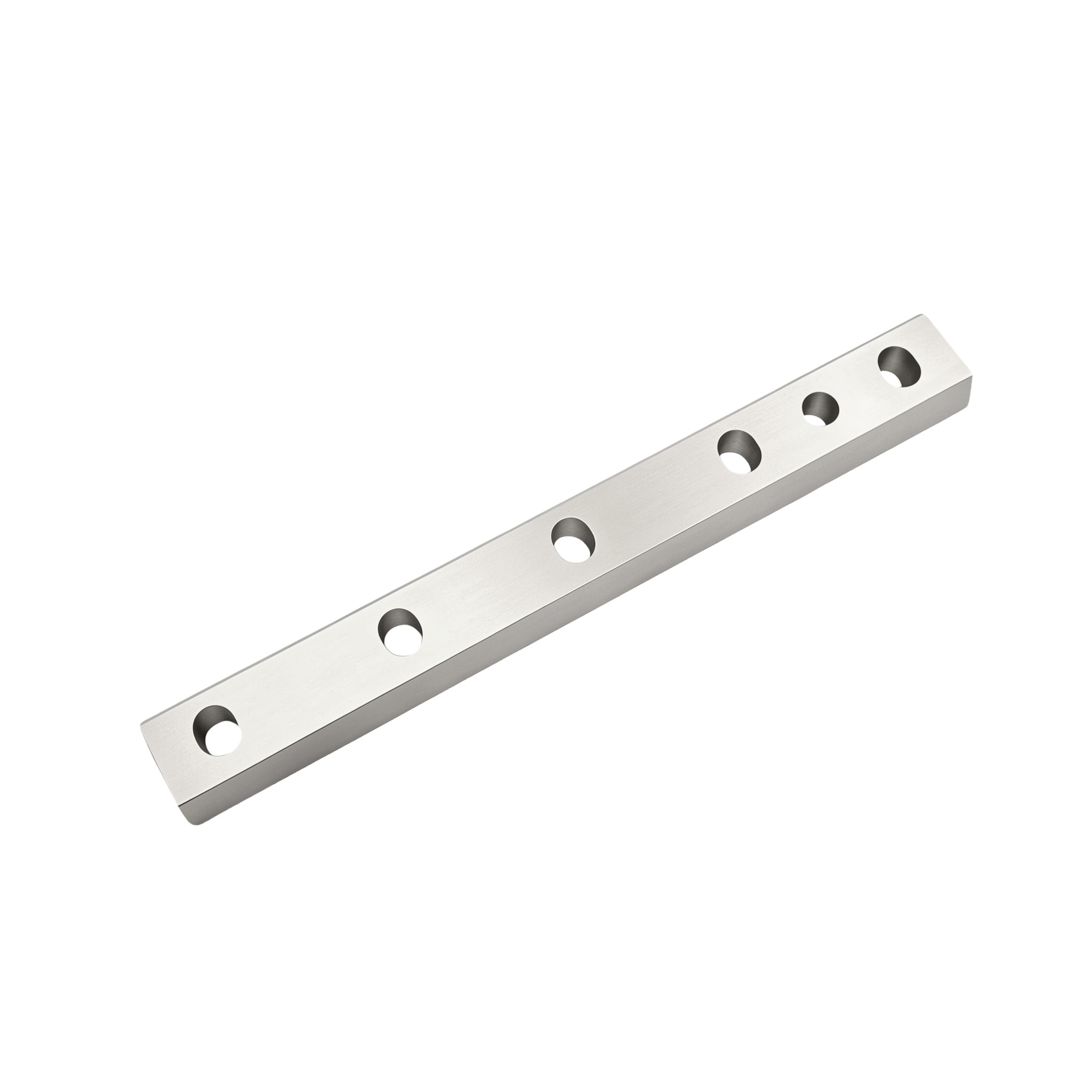

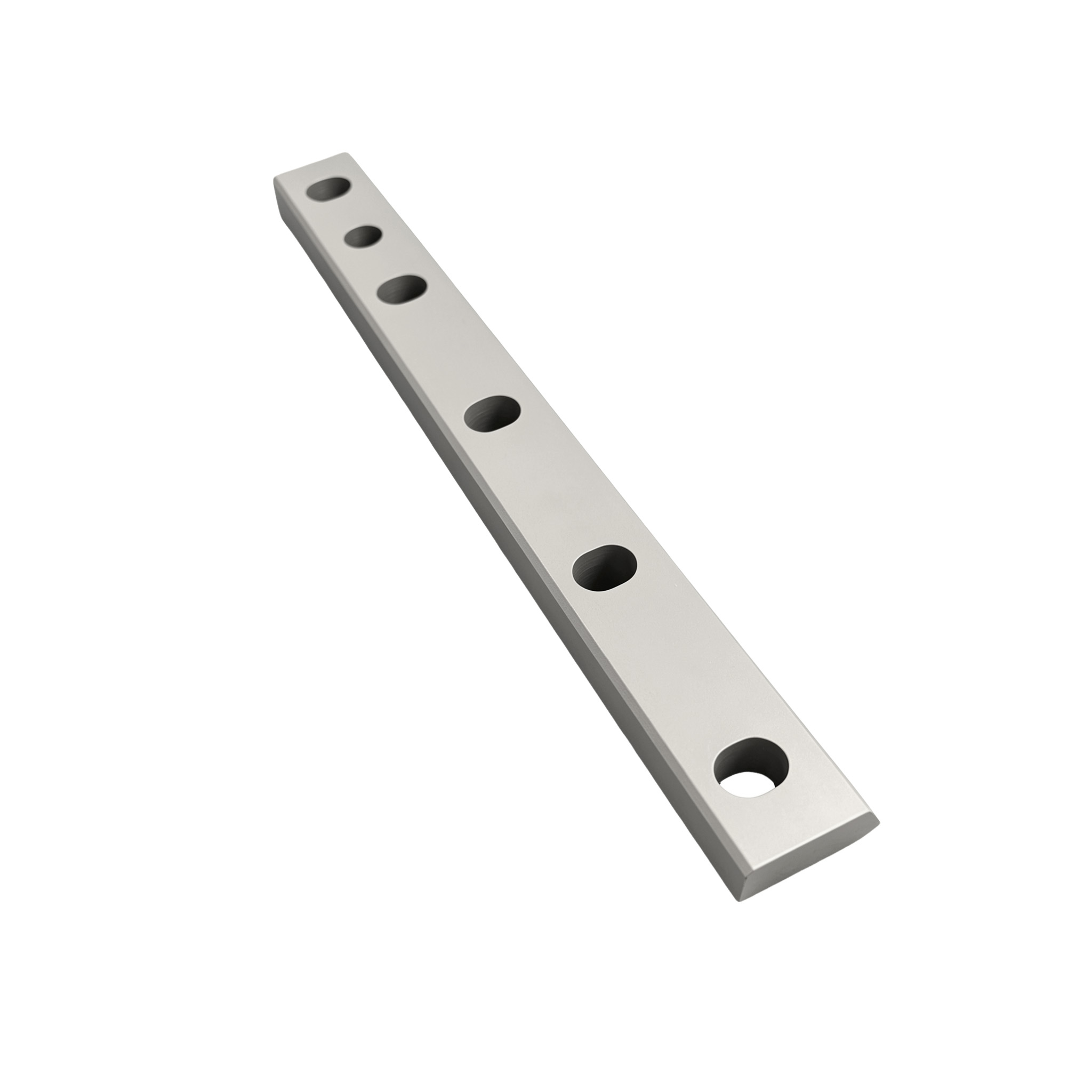

SACMI CCM iSlit Bottle Cap Machine—Stem-Cutting Blade for Tamper-Evident Rings, Part Number: 8L10006690. This elongated blade features multiple mounting holes. The blade body is manufactured from high-alloy tool steel with a precision-ground cutting edge. It is designed to be used in conjunction with the 8L10006688 moving blade. Once assembled, the cutting gap is controlled to the micron level, enabling the cutting of tamper-evident bridges on HDPE bottle caps during high-speed production while ensuring a smooth cut and uniform bridge thickness. Designed specifically as a fixed blade for bottle cap injection molding equipment.
Application Location
Installed on the iSlit ring-cutting station of the Sacmi CCM compression-molding cap machine, this blade holder remains stationary and is positioned to align with the rotating cutting blade. It serves as the fixed-side cutting tool for the cap tamper-evident ring cutting unit, where the cut is made in the tamper-evident ring after the cap is formed.
Functions
1. As a stationary cutting tool, it forms a micrometer-level shear gap with the rotating cutting tool (8L10006688) to collaboratively cut the tamper-evident ring on HDPE bottle caps.
2. It supports the bottle cap cutting process by stably controlling the residual connection thickness of the tamper-evident ring, ensuring that the ring remains secure when the cap is unopened and breaks cleanly when unscrewed.
3. Works in conjunction with the moving cutter to achieve high-speed, continuous cutting, ensuring smooth, burr-free cuts for high-volume bottle cap production and reducing the defect rate associated with ring breakage.
4. Precisely positioned and locked in place via mounting holes on the body, ensuring repeatable assembly accuracy for the cutter set and maintaining a stable cutting gap throughout extended production runs.
Features
1. Equipment-Specific Matching: Static blade specifically designed for the Sacmi CCM bottle cap iSlit system (Part No. 8L10006690), ground to pair with the rotating blade (Part No. 8L10006688), ensuring high interchangeability.
2. High Positioning Accuracy: The elongated blade body features precision-machined mounting holes, ensuring stable assembly and positioning. Once locked in place, it resists displacement, guaranteeing consistent cutting clearance.
3. Wear- and Impact-Resistant Material: Made of high-alloy tool steel with precision-ground cutting edges, it is available with an optional wear-resistant coating to resist wear and chipping, making it suitable for prolonged, high-speed bottle cap production.
4. Consistent Cutting Quality: The cutting surfaces feature high flatness; when the moving and stationary blades are paired, shearing is uniform, resulting in burr-free bottle cap cuts, consistent thickness of the tamper-evident ring, and stable break-off performance.
5. Easy Assembly and Maintenance: The split-type blade assembly design allows for convenient replacement of spare parts, facilitating routine maintenance and replacements on the production line.
