Product Description

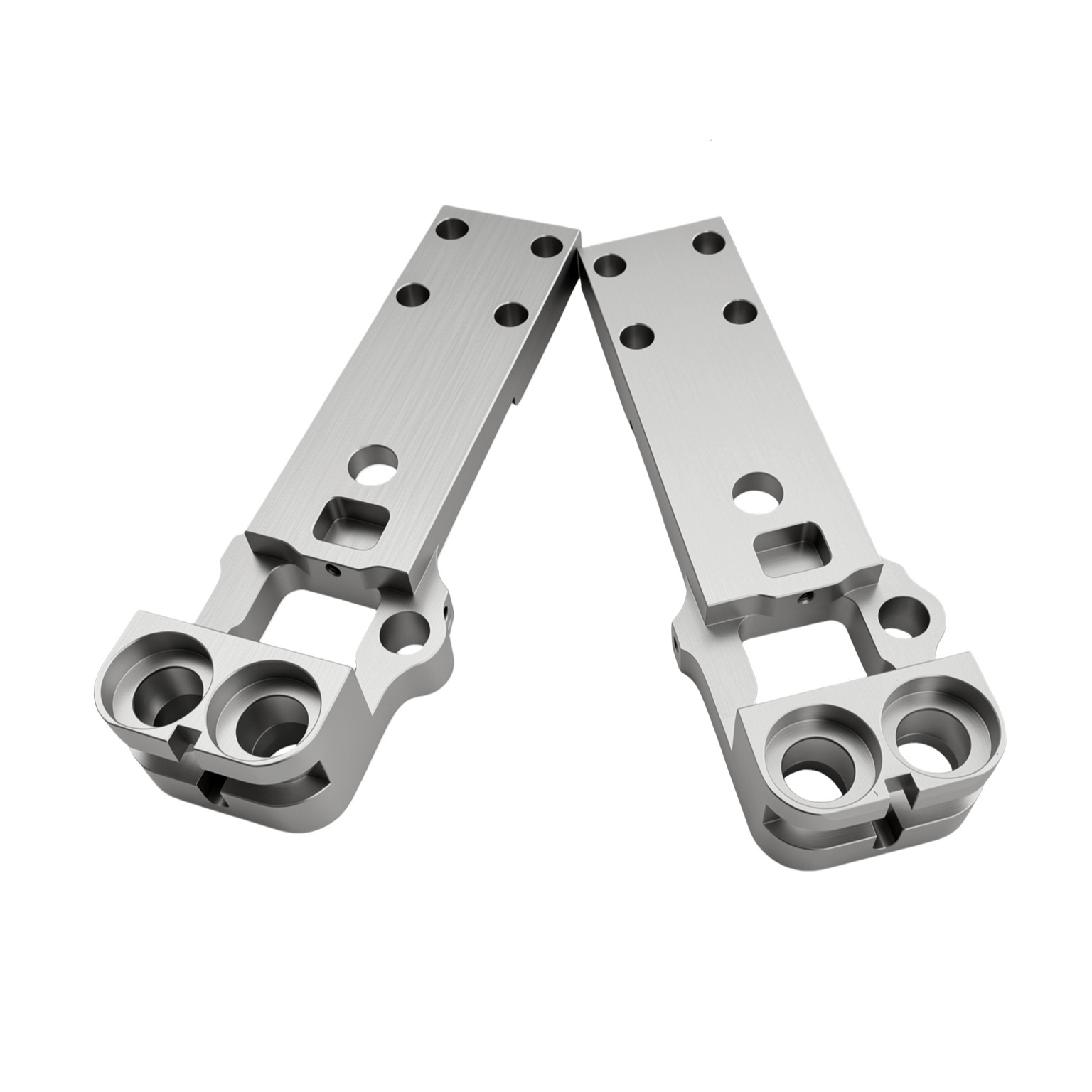

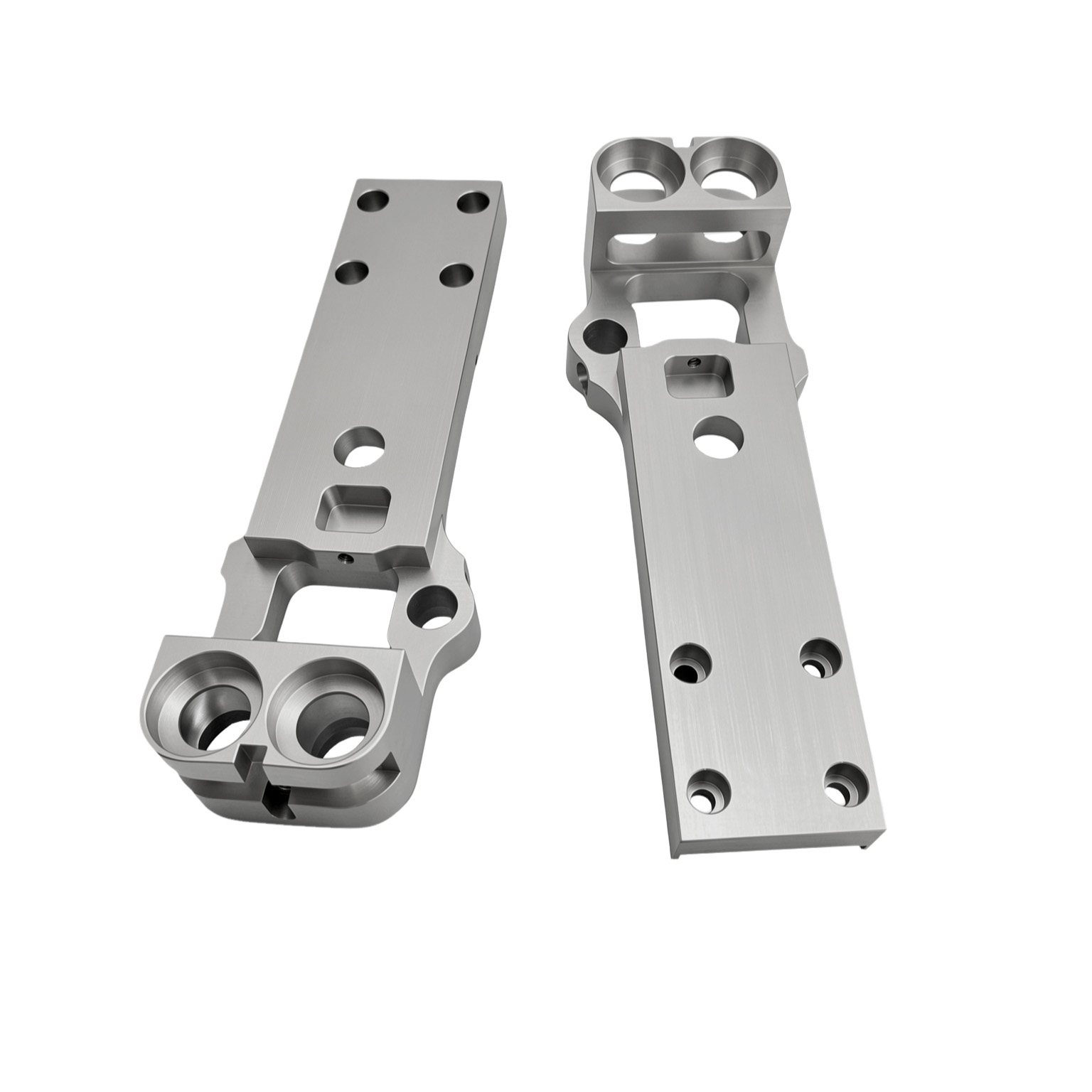

This part is a CNC-machined, integrally formed aluminum alloy push rod. It features a unique composite structure, with a dual-hole mounting bracket and weight-reducing cutouts at the top, and multiple sets of positioning threaded holes and through holes in the lower body. It exhibits high dimensional accuracy and strict geometric and positional tolerances; the part’s surface is smooth, free of sand holes and porosity, and features uniform machining marks. The part integrates mounting, positioning, and force transmission functions. It is bolted to the equipment’s cam/swing arm drive assembly and performs reciprocating push-and-pull motions in tandem with the mechanism. It serves as an actuator in the beverage filling and capping areas.
Application Location
Used in Krones beverage filling lines (filling machines / capping machines), these cam-driven actuators—installed at bottle conveyance, neck handling, or capping stations—serve as push-pull actuator components within bottle support/gripping mechanisms. Inside the rotating frames of rotary filling machines and capping machines, they work in conjunction with cams and rocker arm assemblies to perform periodic reciprocating motions.
FUNCTIONS
1. Acts as a reciprocating motion actuator, transmitting power from the cam mechanism to perform periodic push-and-pull motions;
2. Drives the associated bottle-gripping/supporting assemblies to perform bottle positioning, pushing, and release operations;
3. Precisely control the sequence of station operations to ensure the bottle remains in a stable position during the filling and capping processes, while synchronizing with the equipment’s rotation cycle;
4. Withstand high-frequency reciprocating alternating loads, transmit mechanical thrust, and ensure the continuous cyclic operation of the production line.
Features
1. Precision CNC monoblock machining: Milled as a single piece, ensuring high precision in mounting holes and positioning dimensions; serves as a direct replacement for original equipment parts with excellent installation compatibility;
2. Aluminum alloy construction: Lightweight and high-strength, reducing inertia during reciprocating motion, lowering the drive load on equipment, and enhancing stability during high-speed operation;
3. Structural Optimization: A lightweight, hollow design reduces weight while maintaining structural rigidity, making it suitable for high-speed, continuous production in beverage equipment;
4. Fatigue Resistance and Durability: Designed to withstand the equipment’s high-frequency reciprocating motion and resist alternating stresses, ensuring a long service life and reducing the frequency of production line downtime for replacement;
5. High Versatility: Spare parts with the same part number can be directly used on corresponding Krones filling machines and capping machines; replacement is simple and requires no on-site modification.
