Our products are not OEM, they are only compatible parts
XGY-0905115914 0905115915
XGY-0905115914 0905115915
| Quantity: | |
|---|---|
Our products are not OEM, they are only compatible parts.

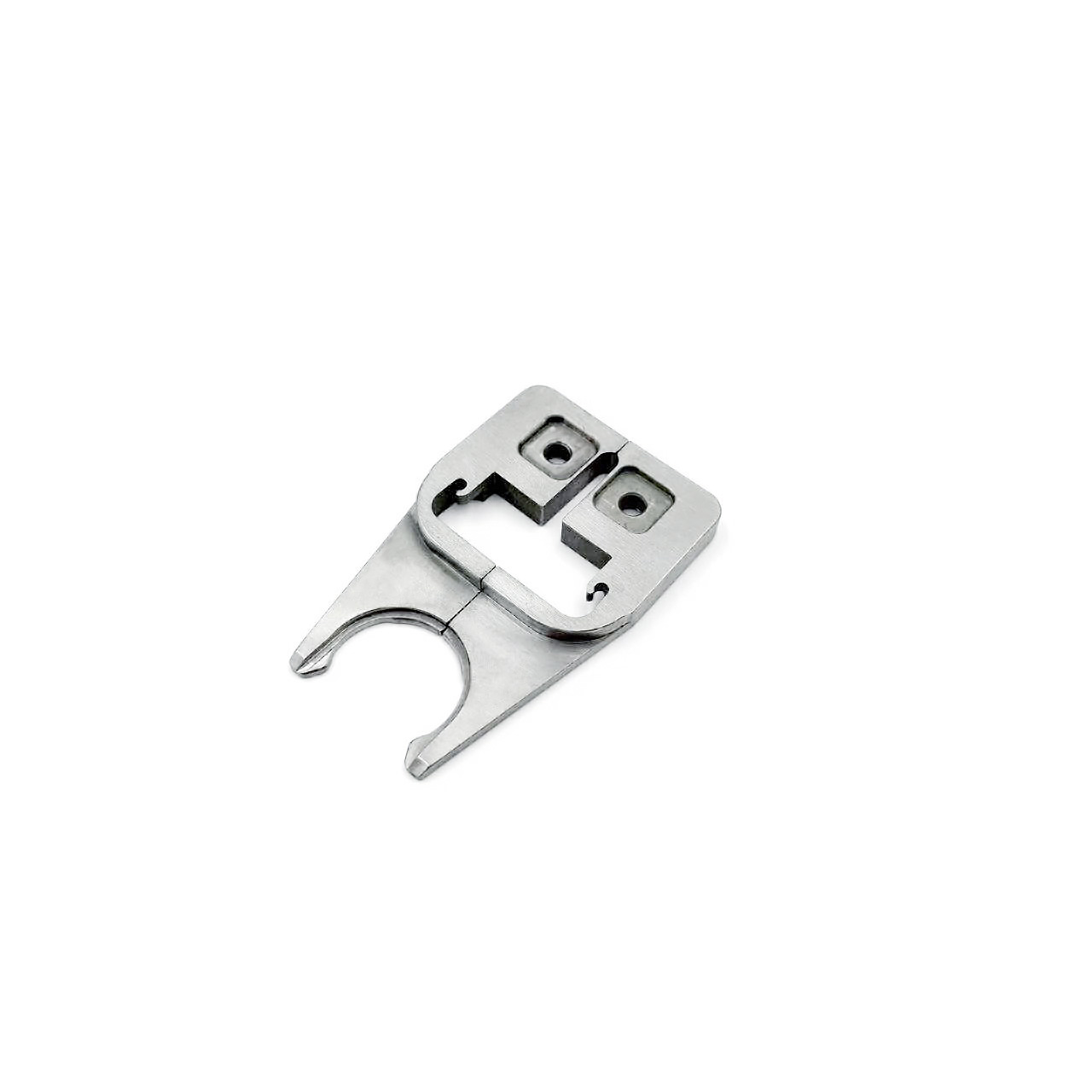

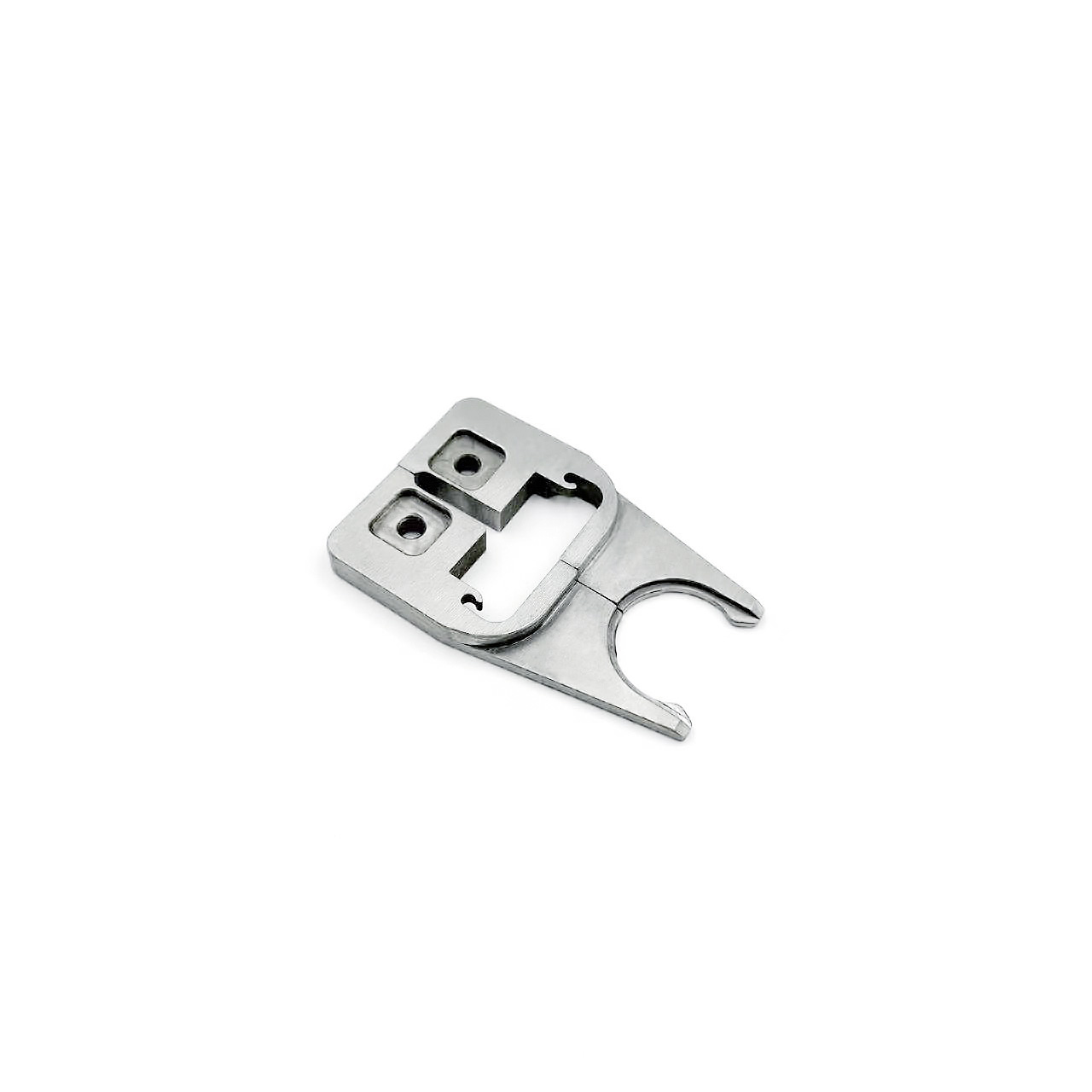

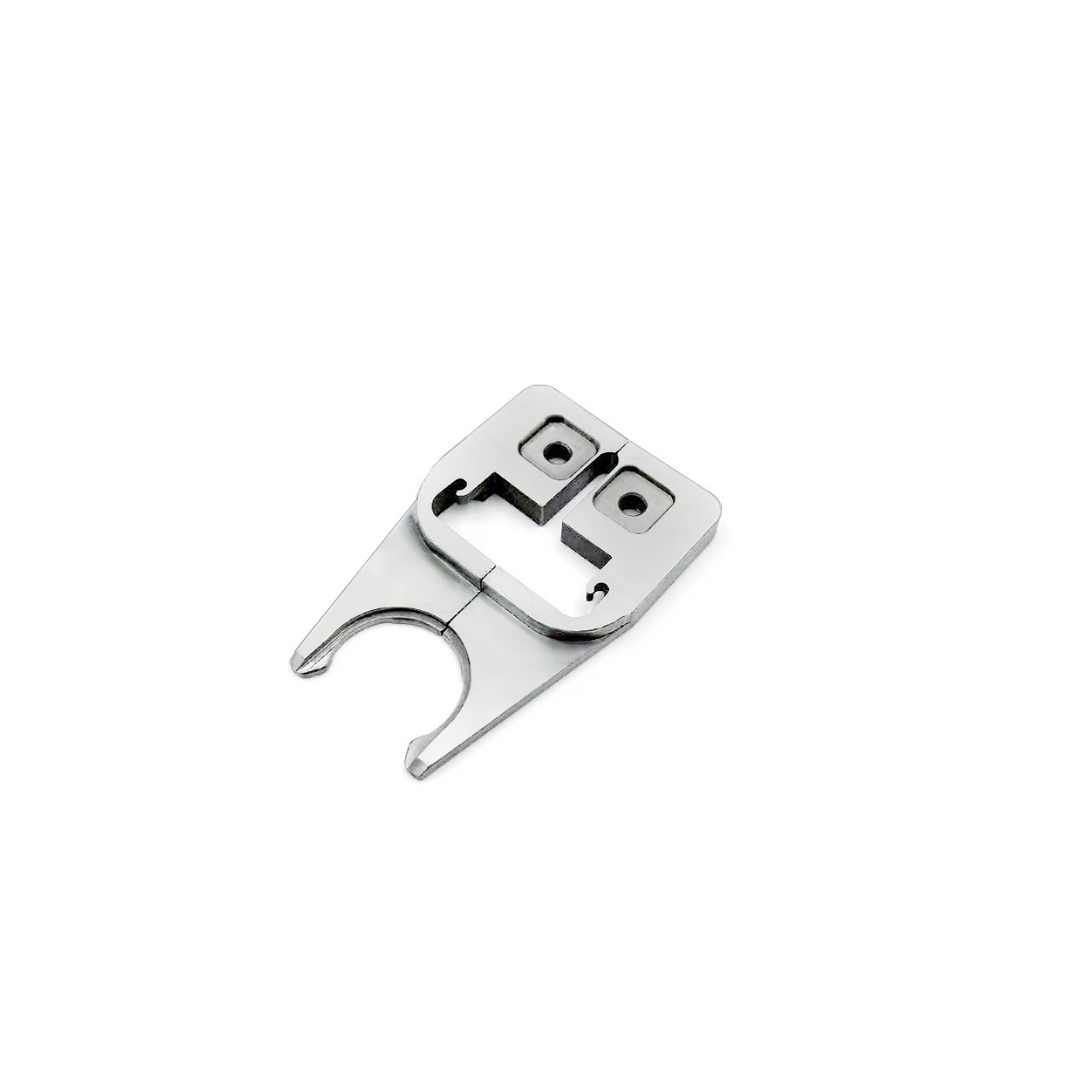

Precision-machined/stamped metal clamping brackets featuring high rigidity, resistance to high-frequency rinsing, and a certain degree of corrosion resistance, suitable for wet zones and CIP environments in beverage and liquid packaging production lines.
The upper section features a perforated design and special-shaped slots for bolt fastening, fine-tuning the position, or serving as mounting points for pins or shafts (such as stainless steel shafts); the lower U-shaped fork is used for semi-enclosed support, positioning, or clamping of bottles, bottle necks, or fixtures.
These brackets have strict geometric and dimensional tolerances and edge chamfering requirements, and serve as critical auxiliary components for container guidance and positioning within conveyor and turntable systems.
Applications
1. Krones bottle washers, fillers, cappers, star wheel transfer zones, and bottle inlet/outlet turntables or conveyor chain direction-change points.
2. Typically installed as bottle holders on rotating turntables, star wheel arms, or the sides of guide rails. When used in conjunction with center shafts, bushings, buffers, and guide pins, they ensure stable bottle transfer, flipping, or precise positioning.
Functions
1. Clamping and Support: The U-shaped fork provides physical restraint for the bottle body and neck, preventing bottles from tipping over or swaying during conveyance or rotation.
2. Positioning and Fine Adjustment: Mounting holes and long slots allow for locking and minor positional adjustments, ensuring synchronized clearance with star wheels and guide rails.
3. Tracking and Protection: When combined with the aforementioned shafts, sleeves, and buffers, it absorbs minor vibrations and reduces noise caused by hard metal-to-metal contact.
Features
1. Metal materials offer high rigidity and a long service life; however, surface scuffing, wear at mounting holes, or deformation of the fork may still occur under high-frequency contact and in rinsing environments.
2. Hole tolerances, U-shaped opening dimensions, edge chamfers, and overall flatness directly affect the smooth passage of bottles and the risk of bottle jamming.
3. This is a high-frequency friction/impact-prone component subject to regular inspection: Common failures include wear and widening of the fork openings, curling of edges, ovalization of mounting holes, cracks, deformation, or rust and scale buildup.
Krones is a registered trademark. Our Bottle holder GY——0905115914 0905115915 is a compatible replacement part and not manufactured or endorsed by Krones. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
