XGY-09023381348 09023381349
XGY-09023381348 09023381349
| Quantity: | |
|---|---|

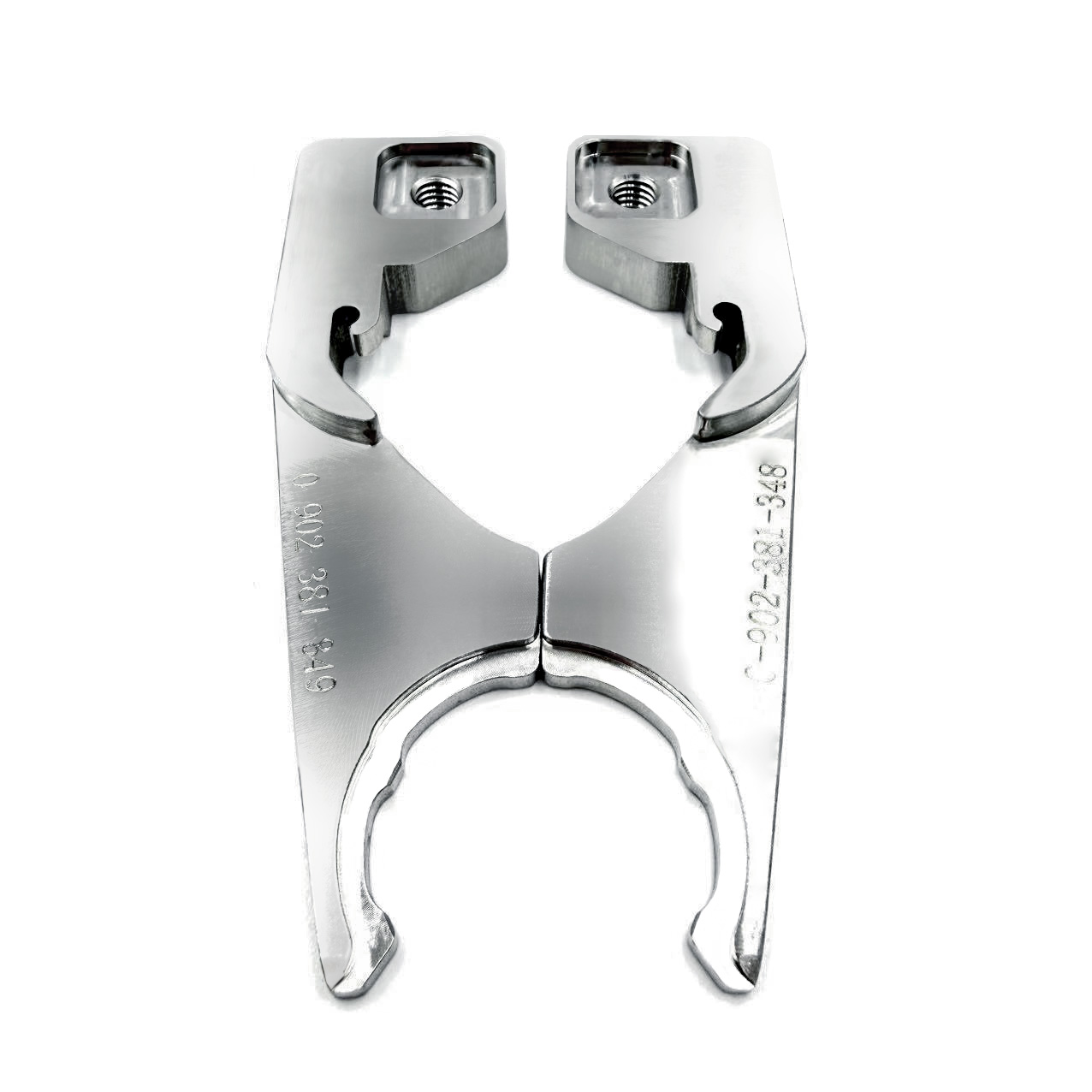

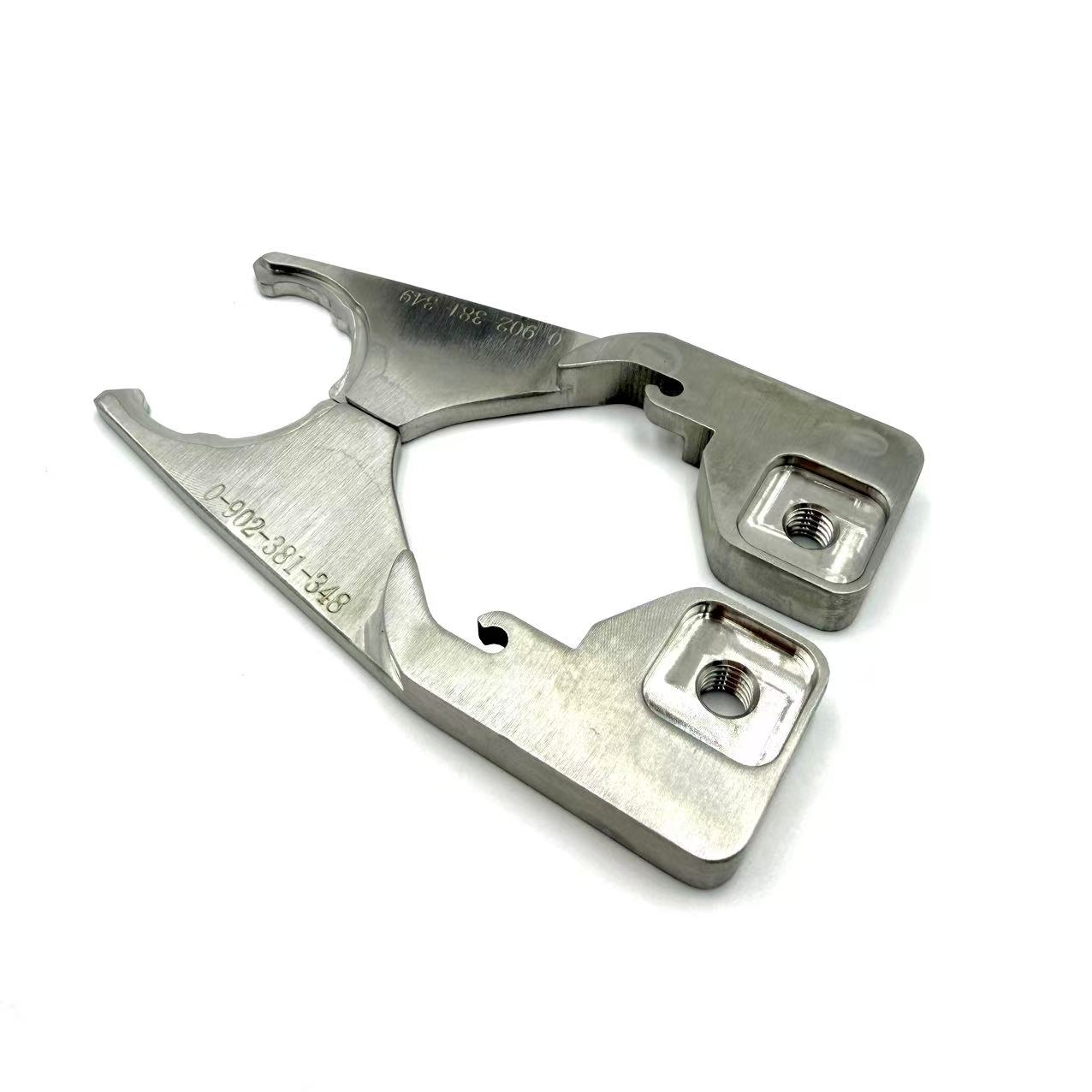

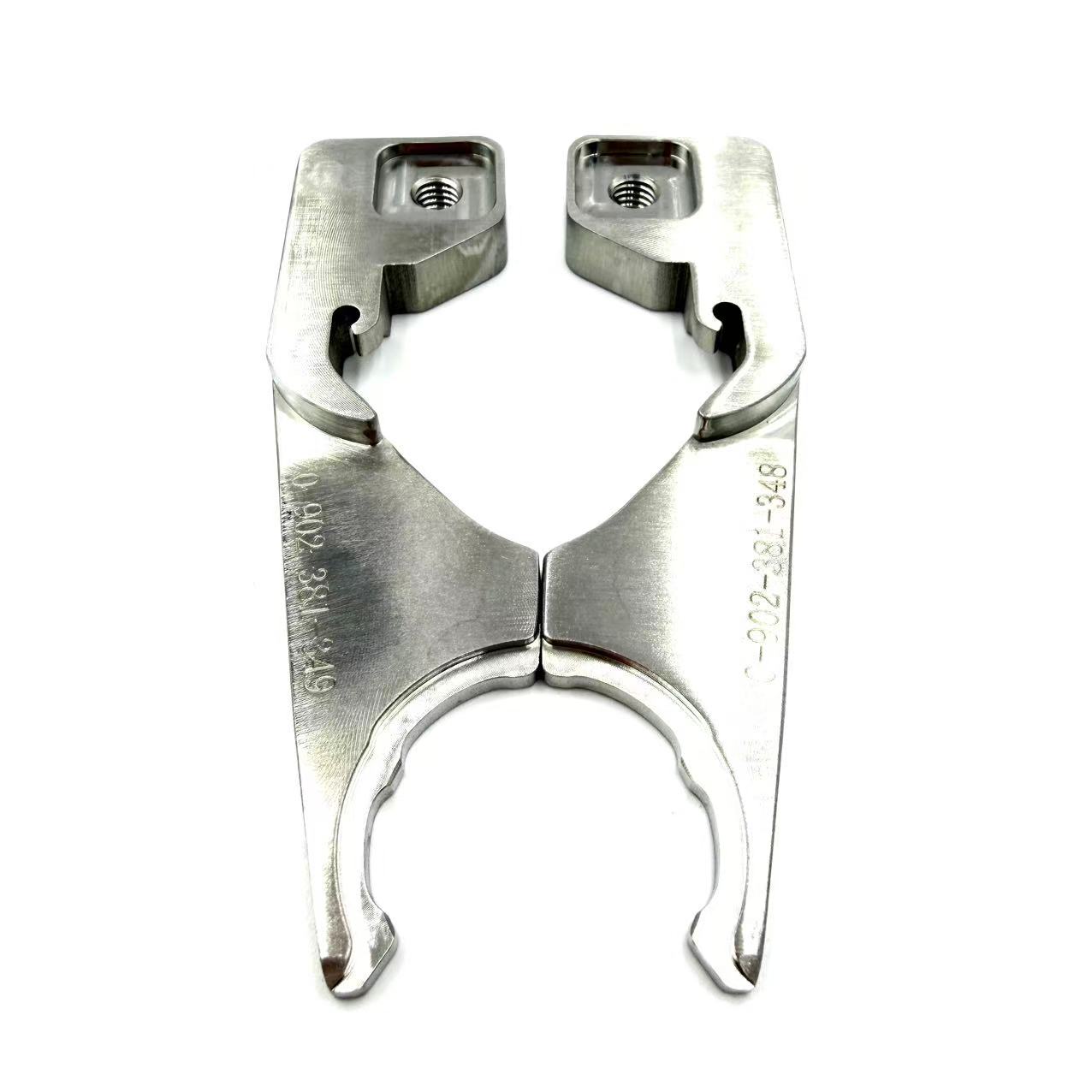

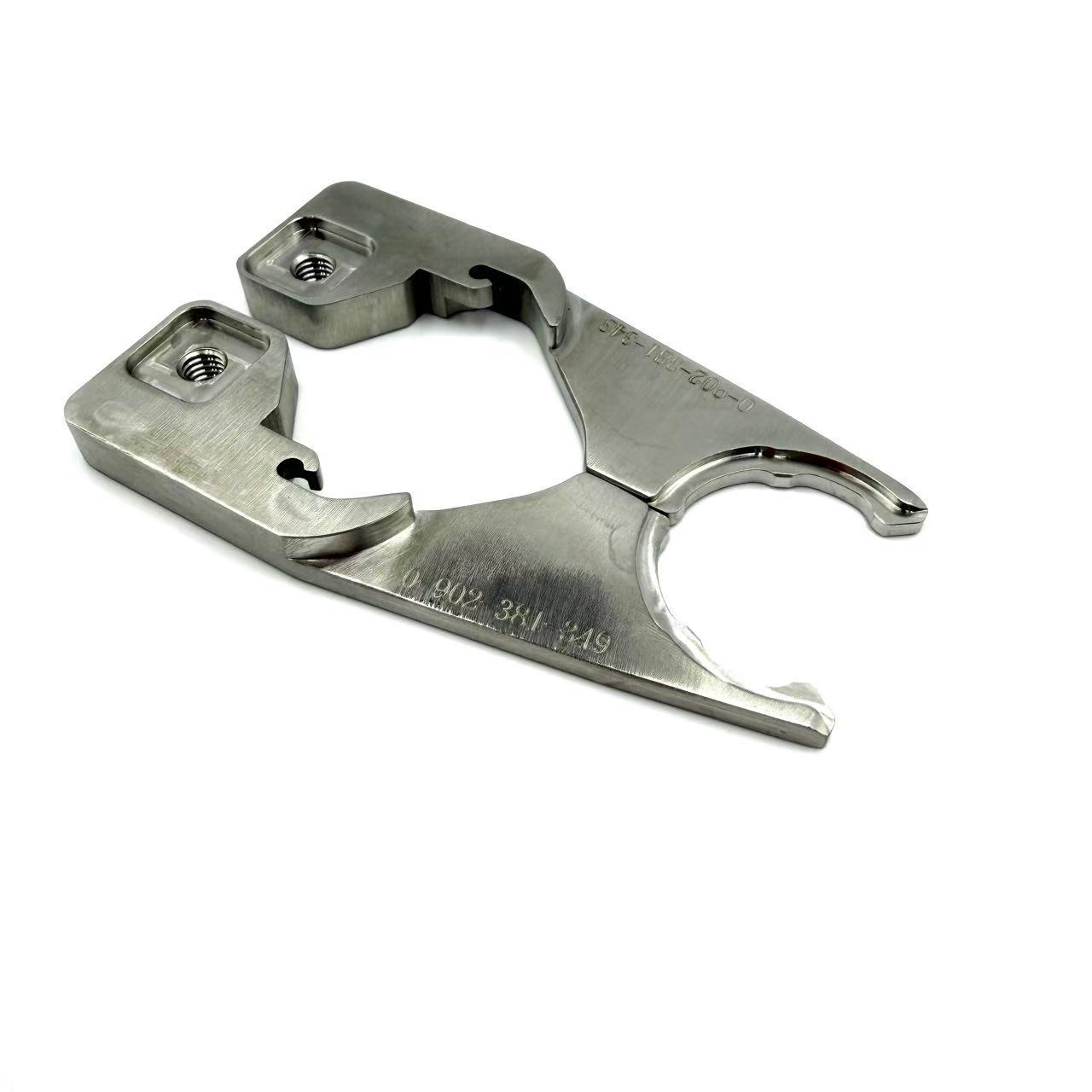

Large bottle clamp, Part Numbers: 09023381348, 09023381349. Suitable for bottle clamp/gripper assemblies on Krones glass bottle/PET bottle filling machines, rinsing machines, bottle sorting/feed star wheels, and lifting, flipping, or bottle-holding turntable mechanisms.
Our products are not OEM, they are only compatible parts.
A large-bottle gripping mechanism for filling, rinsing, star wheel, lifting, or flipping stations, consisting of a pair of grippers.
The upper dual-bolt/clamping plate structure is designed for mounting on gripper arms, rocker arms, or star wheel mounting brackets; the lower arched opening provides a surface that conforms to the bottle’s contour.
Metal body with a polished finish, suitable for wet areas and cleaning environments.
The structure offers high rigidity, and contact surfaces must be smooth to prevent scratching glass or PET bottles or the generation of debris or stress points.
Application Scenarios
1. Bottle clamps/gripper assemblies on Krones glass bottle/PET bottle filling machines, rinsing machines, bottle sorting/feed star wheels, and lifting, flipping, or bottle-holding turntable mechanisms.
2. May be used for supporting and positioning large-sized bottles in combination machines (bottle washing–filling–capping, Dynafill-type, etc.) or at gripping stations on variable-pitch/transition star wheels.
3. 09023381348/49 are most likely left and right mirror-image components of a set, used in conjunction with springs, pins, and clamping arms (to be confirmed by the assembly drawing).
Functions
1. Gripping and Conveying Bottles: Stably grips the bottle neck or body during rotation on turntables, star wheels, or lifting tracks, ensuring consistent bottle spacing, phase alignment, and vertical orientation.
2. Positioning and Guidance: Prevents bottles from swaying, tilting, falling, or colliding with adjacent workstations (filling valves, star wheels, guide rails, capping heads).
3. Withstand loads from start-stop cycles, centrifugal forces, and cleaning environments: Maintain reliable gripping during high-speed rotation.
4. When used on glass production lines, the system must also prevent impact damage and pinch injuries to the bottle neck and shoulder.
Krones is a registered trademark. Our Blow moulding machine Large bottle clamp is a compatible replacement part and not manufactured or endorsed by Krones. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
