Fixed Support Bracket, Part Number: 1786334360, suitable for Krones machine spare parts, including labeling machines/labeling stations, bottle/can conveyors, guardrails, star wheels/bottle diverters or gripping mechanisms, and packaging/wrapping/feeding/waste material guidance mechanisms.
Our products are not OEM, they are only compatible parts.

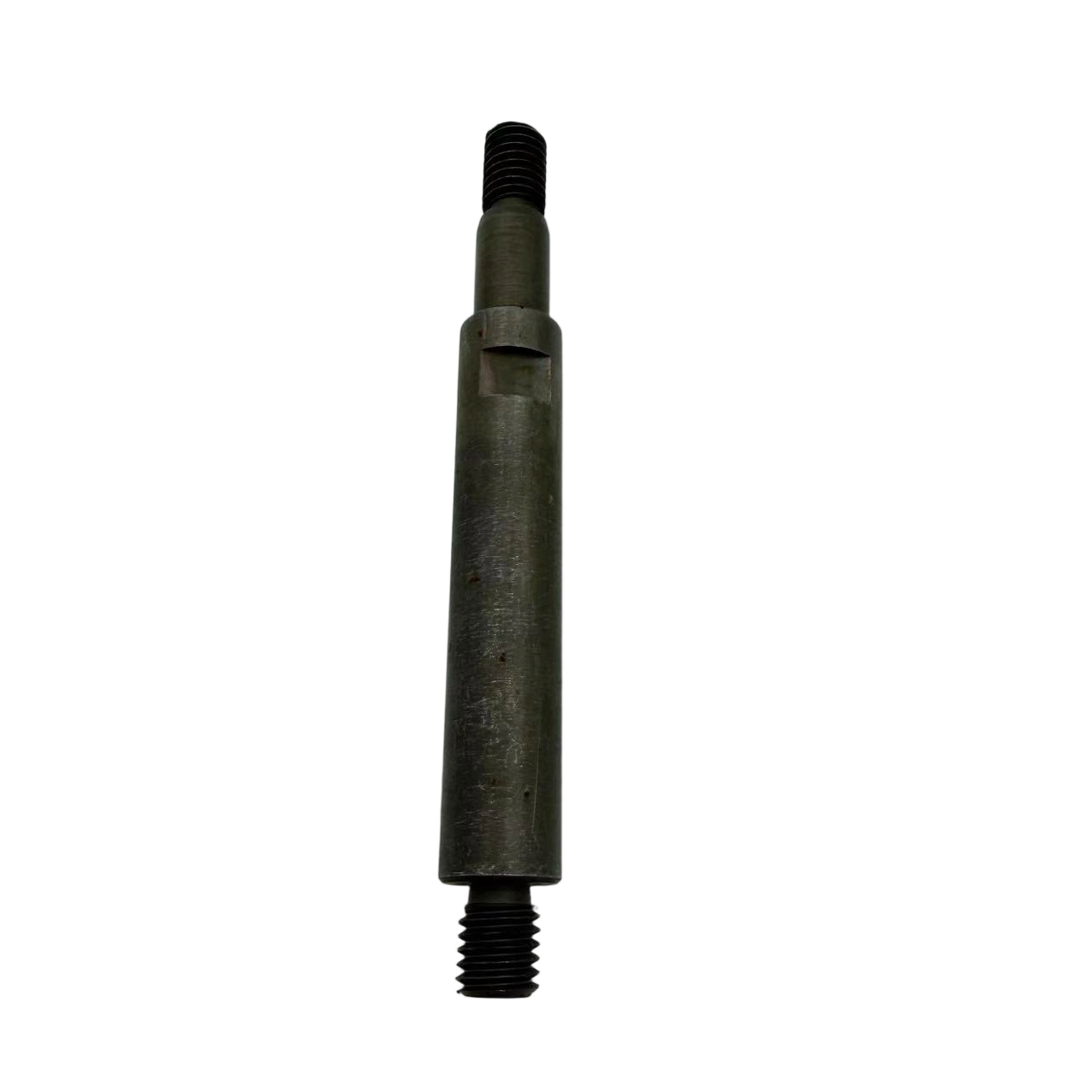

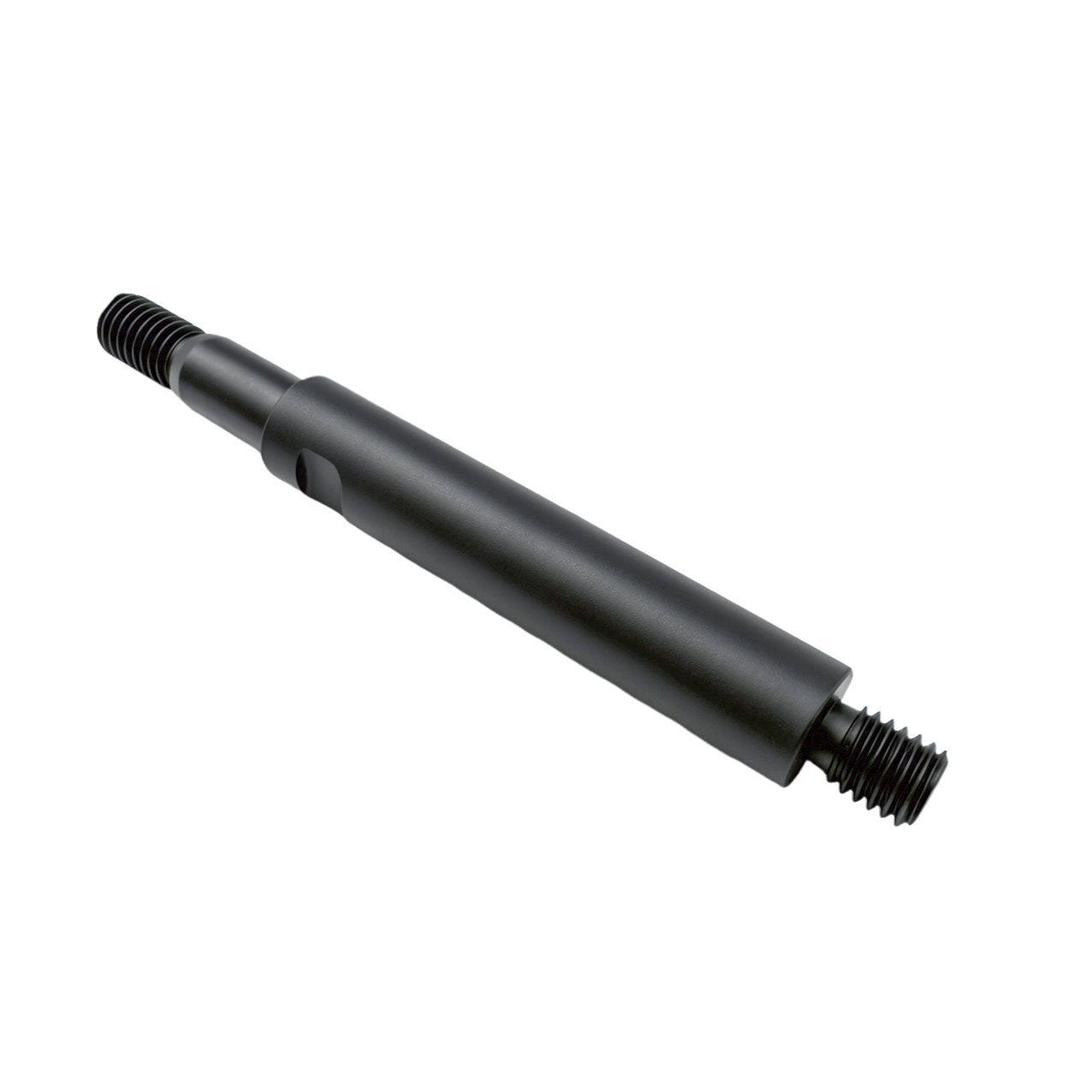

Structure: Long, rod-shaped stepped shaft/stud. One or both ends feature external threads for use with nuts/locking mechanisms or for screwing into mounting brackets; the middle section consists of a smooth, cylindrical positioning/support section with a step for axial limiting; one end has a round head, ball head, or thickened connector, which may be used for contact points, hinge points, adjustment stops, or assembly clamping. The surface is black (possibly blackened, phosphated, coated, or finished to resemble stainless steel or alloy steel), with machined fillet radii in some areas.
Material: Typically steel or alloy steel with rust-proof and wear-resistant surface treatments; in wet areas or cleaning environments, stainless steel or specially coated components may be used. Specific grades, strengths, and surface treatments are subject to the Krones BOM and drawings.
Features: The threads are used for securing or adjusting the lock; the smooth shaft section provides a locating or supporting contact surface; and the shoulder ensures assembly depth and axial positioning.
Applications
1. Labeling machines/labeling stations: For securing or supporting tension arms, label-pressing/guide rollers, swing fingers, and support pins or adjustment supports in label-cutting/waste-label removal mechanisms.
2. Bottle/can conveyors, guardrails, star wheels/bottle indexers, or gripping mechanisms: As mounting pins, limit supports, pivot points for swing arms, or mounting shafts for guide assemblies.
3. Packaging/wrapping/feeding/waste material guidance mechanisms: Fixed shafts for supporting guide components, tensioning components, baffles, or roller brackets.
4. Adjustable/fixed support points on machine frames: Threaded into brackets or support blocks and secured with nuts to prevent loosening, serving as positioning supports that are not intended for frequent disassembly.
Refer to the official BOM or drawings for specific equipment locations and assembly methods.
Functions
1. Fixed Support/Positioning: Provides a fixed fulcrum, stop, or mounting reference for moving or stationary components.
2. Axial/Radial Positioning: Stepped and smooth shaft sections control the assembly position, ensuring mechanical clearance and repeatability.
2. Load-Bearing/Force Transmission: Withstands slight bending moments, tensile/compressive forces, or serves as a fulcrum for rocker arms, springs, or tensioning mechanisms.
4. Adjustment and Locking (if the threaded section is used for installation adjustment): Allows for adjustment of the extension length or position, followed by locking.
5. Reduction of Assembly Errors: Compared to simple bolts, stepped and smooth rod sections are better suited for precision support and positioning.
