Bottle Clamp, Part Numbers 0905369575 and 0905369576. Bottle clamps are commonly used in the handling and spacing mechanisms of Krones glass bottle and retort bottle lines, particularly in conjunction with star wheels and turntables.
Our products are not OEM, they are only compatible parts.

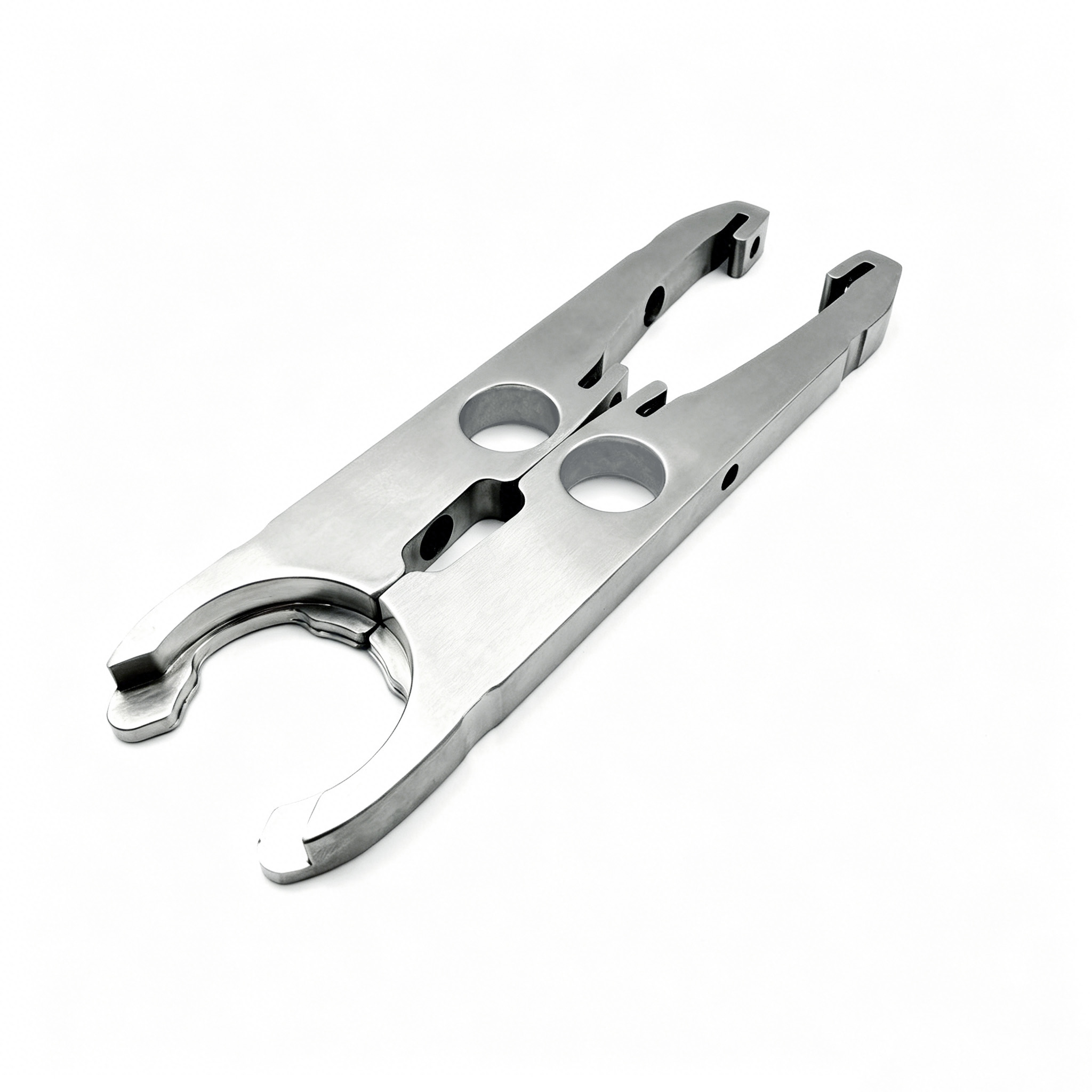

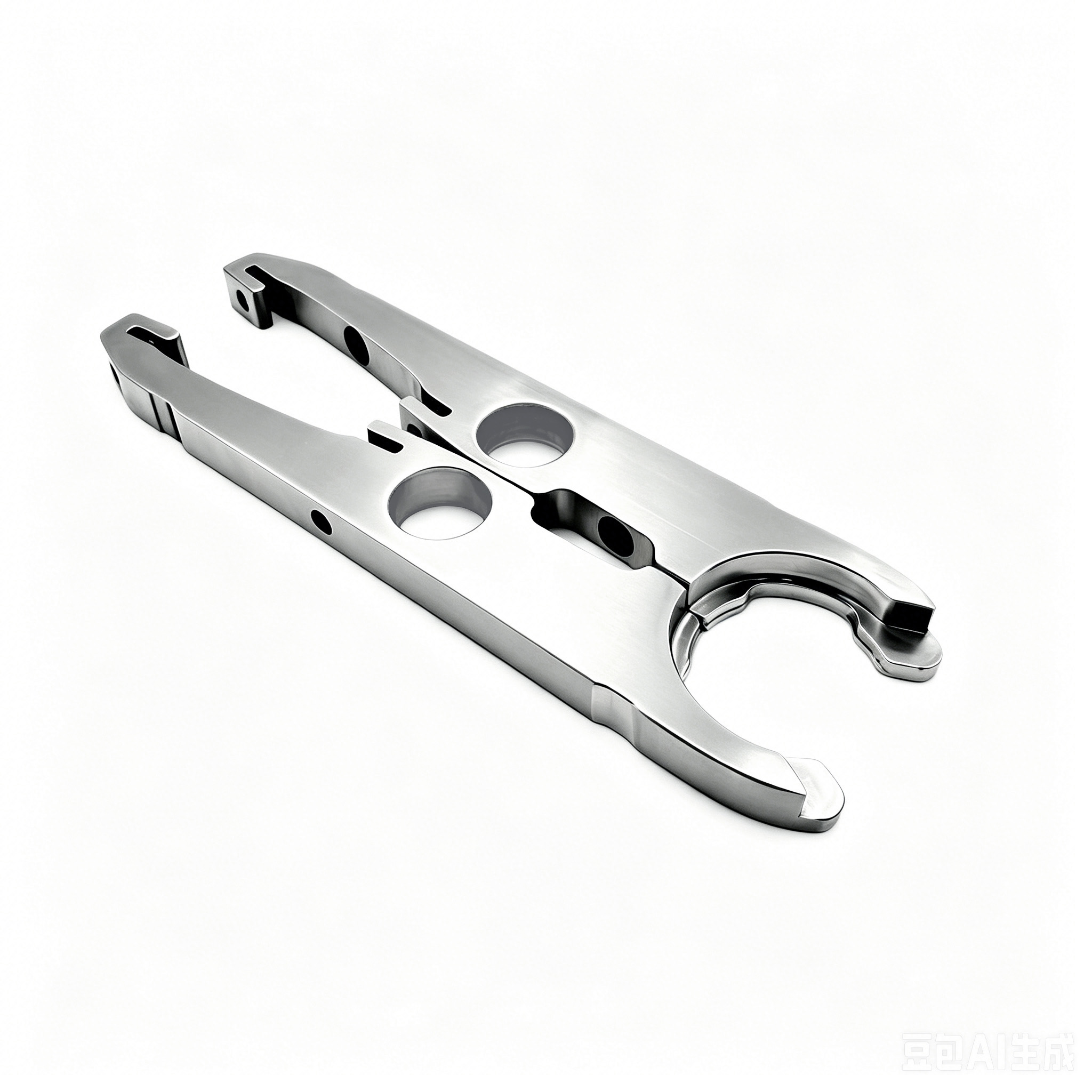

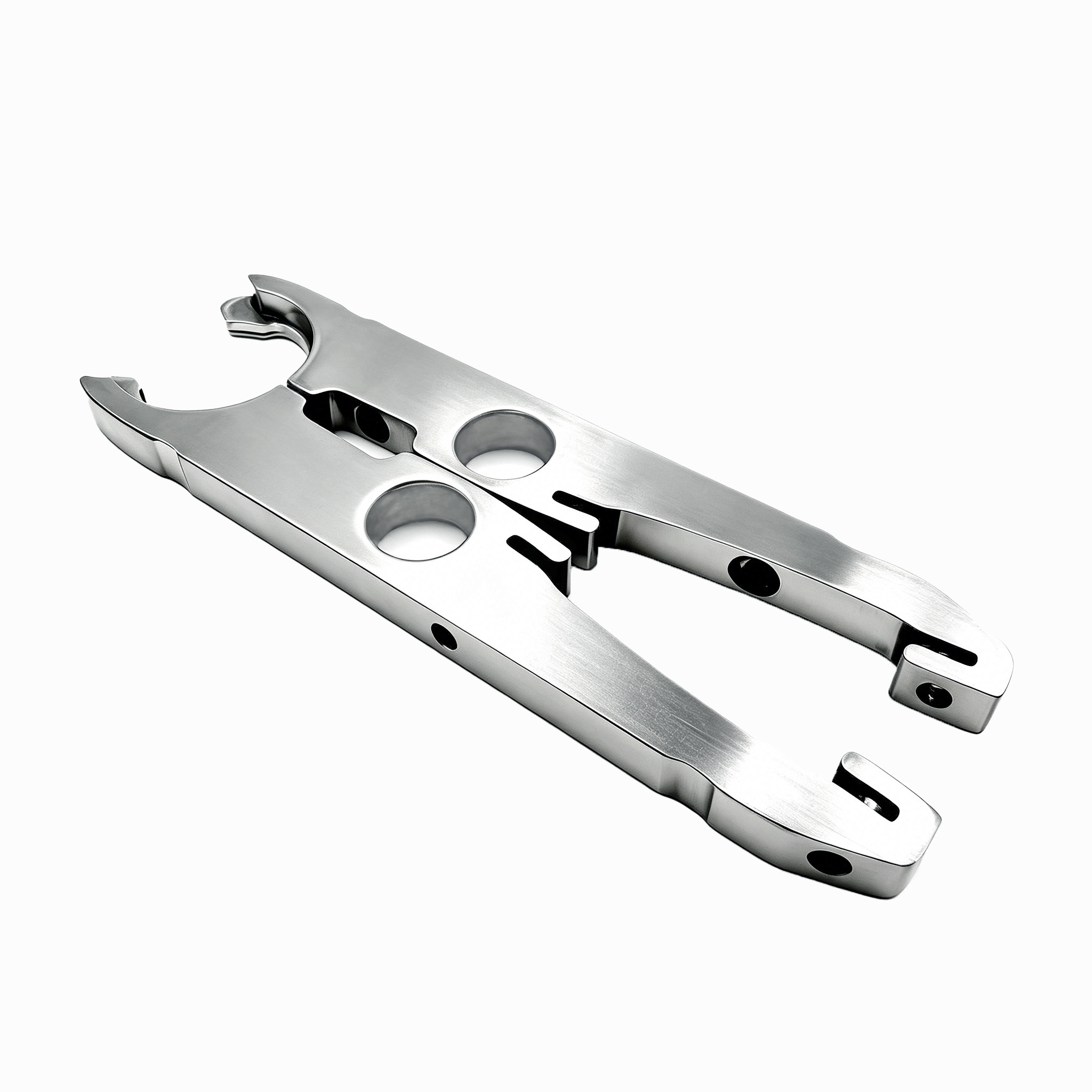

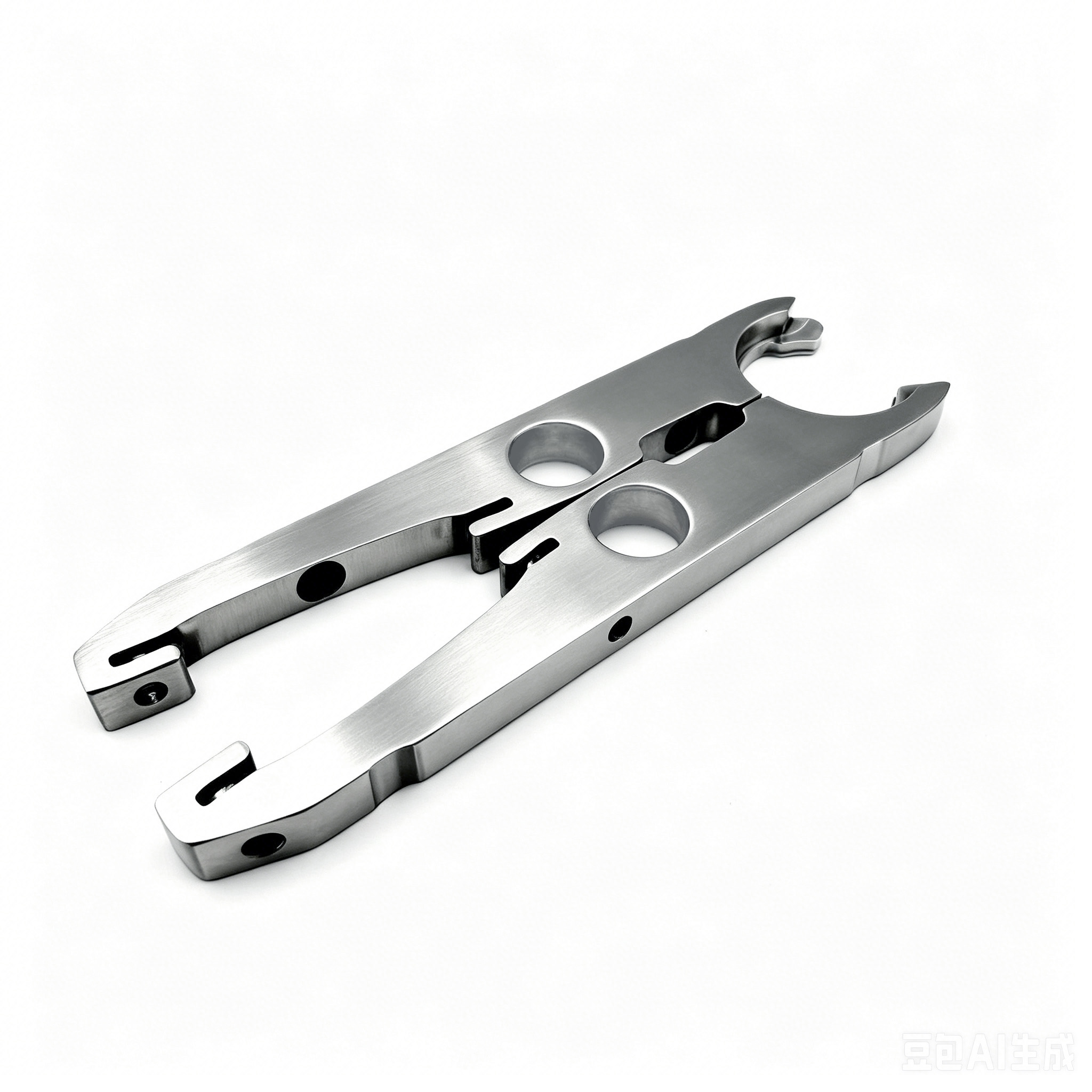

Appearance and Structure: The overall structure consists of polished metal claws or fingers arranged in a symmetrical or nearly symmetrical “pincer-like” or “fork-like” configuration. One end features a curved gripping opening (used to grip the bottle mouth, neck, or shoulder area), while the shaft has round or elongated holes for mounting pins, springs, or cam followers; the other end features a connecting or hinged structure. The surface shown in the image has a high-gloss metallic finish.
Material: Typically stainless steel (such as AISI 304/316L or equivalent food-grade stainless steel), or high-strength stainless steel with a polished or plated finish; within Krones’ Handling Parts system (handling/guiding wear parts), bottle clamps/claws are selected based on contact and hygiene requirements, using CIP-resistant, wear-resistant metals or composite structures with plastic contact elements. The part shown in the image has a metal body, with a polished surface that facilitates cleaning and minimizes liquid retention and corrosion.
Features: The contour is machined or precision-cast and then polished; the holes and curved surfaces have specific fit tolerances. As a gripping component that moves with the star wheel or turntable, it must ensure smooth opening and closing as well as consistent gripping performance.
Application Scenarios
1. Infeed and outfeed star wheels and lifting/gripping mechanisms for bottle washers/rinse machines: Grips the bottle neck or mouth area to transfer bottles between stations.
2. Infeed and outfeed star wheels for filling machines (e.g., Modulfill HES) and capping machines: Used for gripping, spacing, and guiding glass bottles along their path; Krones offers multifunctional gripping star wheel/fixture systems such as the MultiGuide Base, with bottle grippers serving as one of the key gripping components.
3. Transfer star wheels for combined machines (rinser–filler–capper blocks): These transfer bottles one by one between machines via star wheels, reducing buffering and collisions.
4. Inspection, bottle-tipping, flipping, or bottle-ejection mechanisms: These function as temporary gripping or positioning grippers, operating in conjunction with cams or springs to open and close.
Functions
1. Clamping and Centering: The curved clamping jaws grip the bottle mouth/neck, maintaining the bottle’s orientation and spacing during high-speed transport to prevent swaying, tipping, or collisions.
2. Synchronized Opening and Closing: Opening and closing are controlled via pins, springs, cams, or star wheel tracks to ensure bottle pickup at the inlet, holding at workstations, and release at the outlet.
3. Transfer Motion: Acting as “hands” on the star wheel or turntable, it reliably transfers bottles between stations such as rinsing, filling, and capping.
4. Protection of Bottles and Equipment: Polished metal contact surfaces (or when used with plastic inserts) reduce the risk of glass scratches or chipping; appropriate clamping force prevents breakage due to excessive pressure.
