Our products are not OEM, they are only compatible parts.
Physical Characteristics

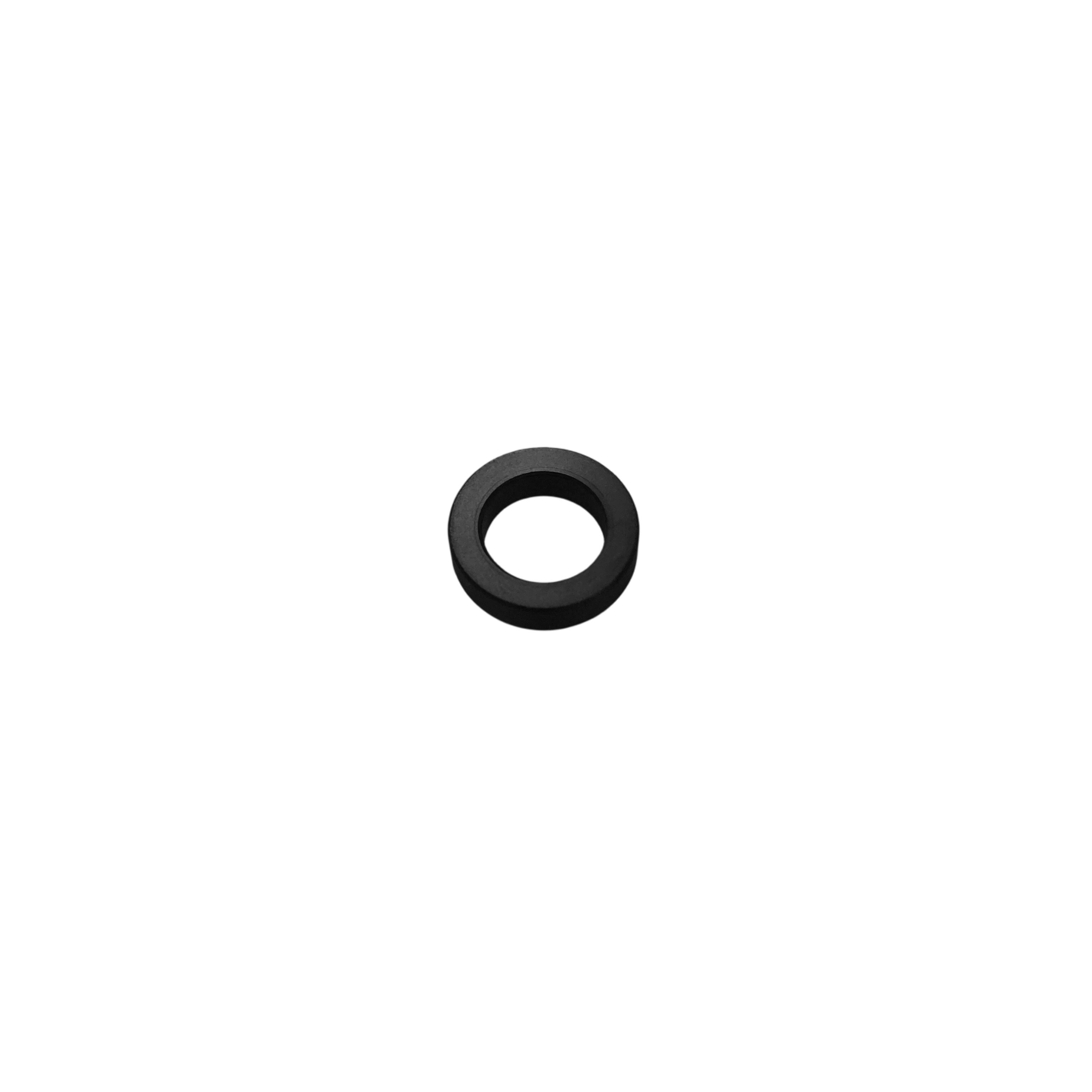

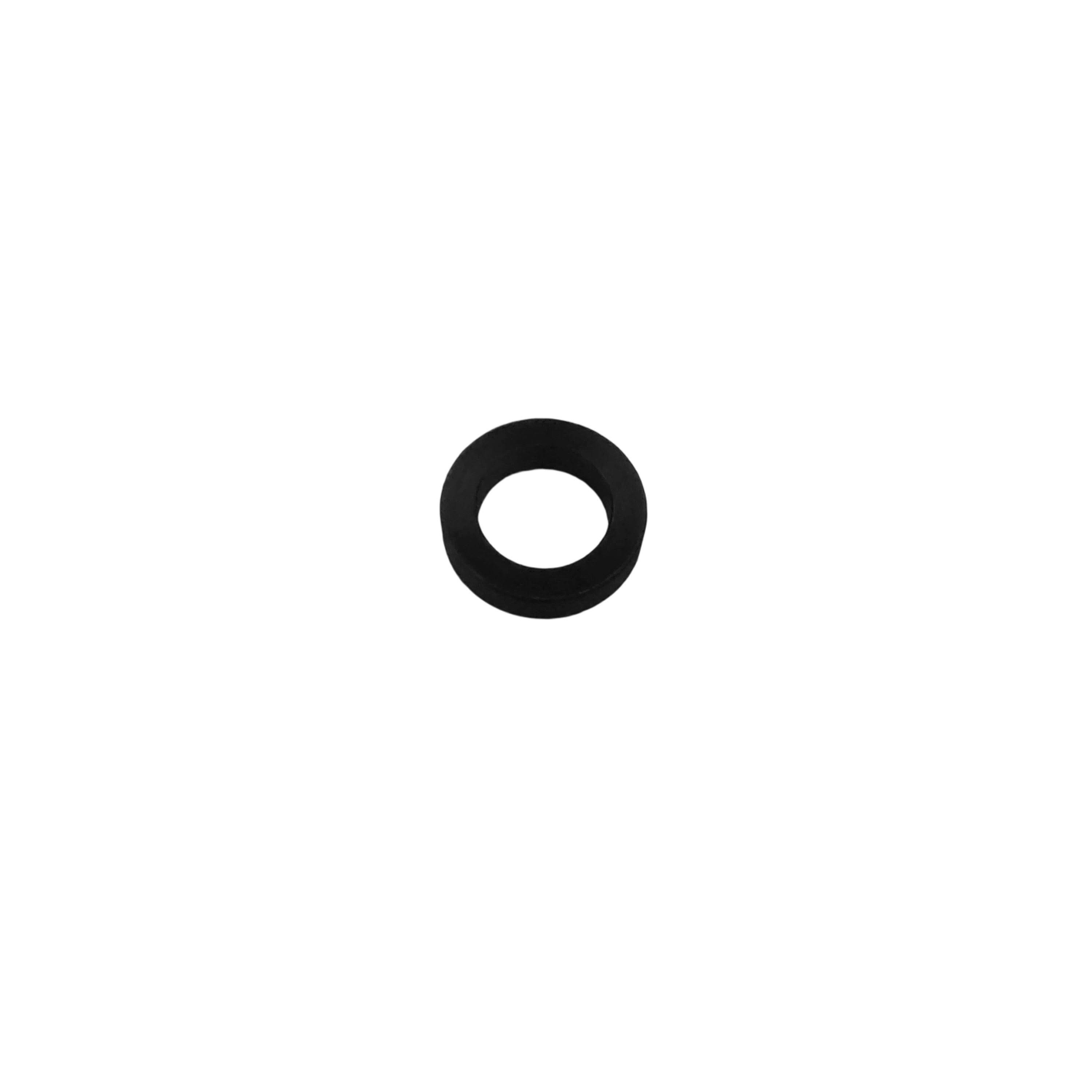

Overall Shape: Flat, circular ring with a rectangular cross-section (flat washer shape); high concentricity between the inner and outer diameters
• Material and Color: Black elastomer (typically food-grade EPDM), matte finish, dense texture
• Dimensions: Moderate ring width, uniform thickness, cleanly cut edges, no flash or burrs
Product Features
1. Food-Grade Materials
Made of EPDM/NBR rubber that complies with FDA food contact standards; non-toxic and odorless, suitable for direct contact with food media such as beverages and beer.
2. Reliable Static Sealing
The rectangular-cross-section flat gasket forms a face seal when compressed against the end face, providing a large sealing area and superior pressure resistance compared to standard O-rings.
3. Temperature and Corrosion Resistance
EPDM material is resistant to hot water, steam, and acidic and alkaline cleaning agents, making it suitable for high-temperature CIP/SIP cleaning conditions; NBR offers excellent oil resistance.
4. Good Compression Recovery
Under bolt preload, the rubber material deforms moderately to fill microscopic irregularities on the sealing surface; it returns to its original shape upon unloading and is reusable.
5. Easy Installation
With a flat washer design, the seal can be simply slipped onto the bolt or placed into the sealing groove without the need for special tools.
6. Low Cost
As a standard component, it is inexpensive and classified as a routine wear-and-tear spare part for equipment, typically replaced in bulk.
7. Standardized Specifications
Inner and outer diameters, as well as thickness, are manufactured according to KHS equipment standards, making it a suitable replacement for original equipment manufacturer (OEM) parts.
Core Functions
1. Face Seals: Installed between the mating surfaces of two metal parts (such as flange connections, valve body end caps, and pipe joints), these seals compress the gasket using bolt preload to prevent liquid or gas leakage.
2. Flange Seals: Used at flange connections in filling machine hoppers, pipes, and valves to seal media such as beverages, CO₂, compressed air, and CIP cleaning solutions.
3. Filling valve seals: Used for face-to-face sealing between various components of filling valves, such as between the valve body and seat, or between the valve bonnet and valve body.
4. Support / cushioning: In certain locations, they can serve as cushioning gaskets to reduce hard contact and vibration-induced wear between metal parts.
5. Leak prevention and contamination control: Prevent external air and impurities from entering the product passageway, while simultaneously preventing product leakage, ensuring hygiene and safety.
What scenarios does it apply to?
KHS Can Filling Lines: Flange/face seals for components such as hoppers, piping, filling valves, and rotary distributors in the Innofill Can series filling machines
• KHS PET Bottle Filling Lines: Piping connections, valve end caps, and cylinder seals in the Innofill PET series equipment
• KHS Glass Bottle Filling Lines: Various sealing points in the Innofill Glass series beer/beverage filling machines
• Suitable media: Beer, carbonated beverages, fruit juices, drinking water, CIP acid and alkali cleaning solutions, CO₂, compressed air, etc.
• Operating temperature range: Typically suitable for -20°C to +140°C (EPDM), meeting the requirements for both ambient-temperature production and high-temperature cleaning
