XGY- 50383986
XGY- 50383986
| Quantity: | |
|---|---|
KHS filling machine spare parts ,KHS spare part online,KHS Bottle Blowing Machine,KHS spare parts catalog,KHS shop,KHS spare parts catalogue pdf,KHS filling machine manual pdf,KHS machine
Our products are not OEM, they are only compatible parts.
Product Features

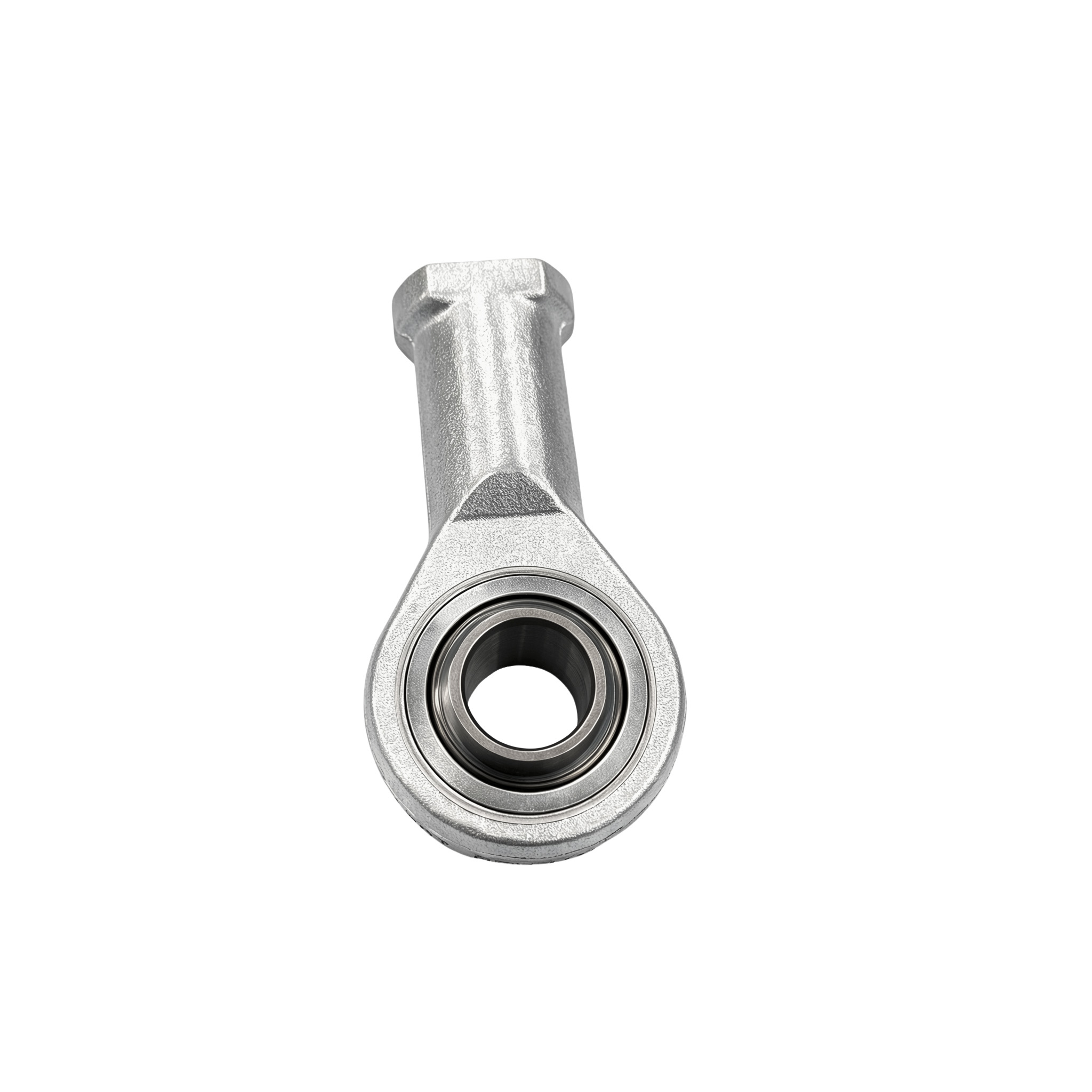

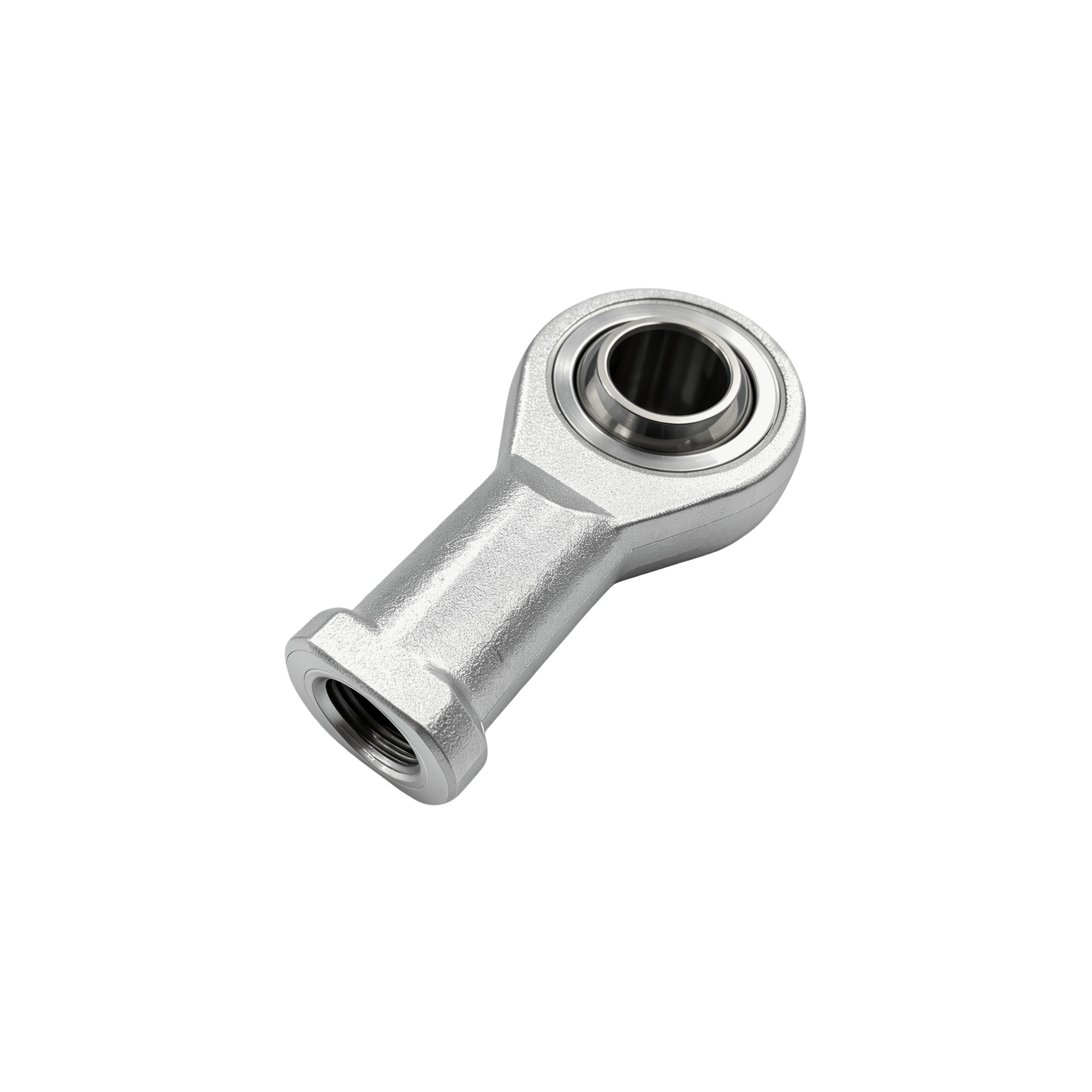

Union Head, Part Number: 50383986. It is commonly used to connect cylinder rods to mechanical swing arms and is designed to be screwed onto piston rods or connecting rods with corresponding external threads for a secure fastening.
Main Housing: Typically forged from high-strength alloy steel, it undergoes heat treatment followed by zinc or nickel plating to provide high tensile and compressive strength and excellent corrosion resistance.
Internal Ball and Bearings: The ball is typically made of hardened bearing steel with a hard chrome plating, while the housing race is often made of stainless steel or special-grade steel.
Sealing/Lubrication Layer: The interior features a PTFE (polytetrafluoroethylene) lining, providing maintenance-free, low-friction sliding performance.
Applications
This component is typically installed in the pneumatic/hydraulic cylinder-driven linkages of KHS blow molding machines, filling machines, labeling machines, or conveyor systems.
Function
1. Power Transmission and Angular Compensation: In mechanical transmission systems, pneumatic or hydraulic cylinders typically perform linear reciprocating motion, while the load (such as mold opening and closing mechanisms or container clamps) often requires swinging or rotating motion. This spherical plain bearing allows for deflection within a certain angular range (typically up to about 15°), thereby effectively compensating for angular errors between linear and rotational motion.
2. Load Capacity: It withstands radial and axial tensile or compressive forces from the drive system, ensuring smooth and reliable power transmission.
Why Choose Us
Precision Manufacturing: Xinguangyuan uses advanced production technology to ensure each liner meets strict dimensional and quality standards.
10+ Years of Experience: Our expertise in the PET and beverage equipment industry ensures deep understanding of Sidel machine requirements.
Flexible Services: We offer OEM services and customization based on drawings or samples, catering to unique machine configurations.
Efficient Shipping: Global shipping via DHL/SF ensures fast delivery, reducing downtime for your production line.
Transparent Terms: Convenient T/T payment options and clear communication ensure a smooth purchasing experience.
