Our products are not OEM, they are only compatible parts.
Product Description

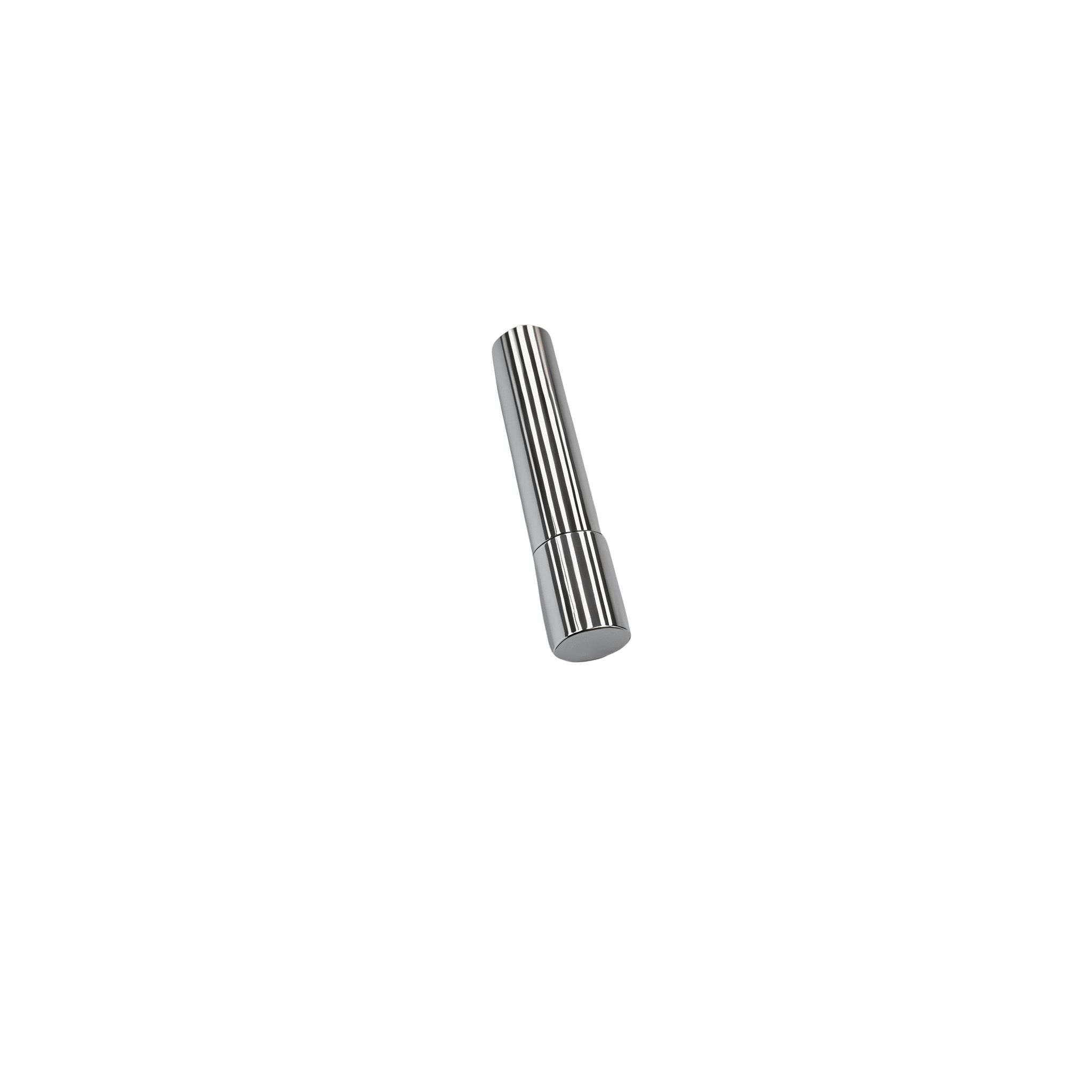

Overall Shape: Small cylindrical pin/short shaft; not a traditional threaded bolt with a head; classified as a pin-type fastener used for mechanical connections and positioning.
Surface Characteristics: The main body has a metallic silver finish with a high degree of surface finish; one section features distinct knurling (straight or mesh-pattern embossing) to increase friction and ensure interference fit/press-fit retention; the other end and the middle section feature smooth cylindrical surfaces, with flat end faces and neatly finished chamfers and edges.
Material Appearance: Based on the luster and the operating environment of KHS spare parts, the material is typically stainless steel or surface-treated steel (corrosion-resistant and wear-resistant), suitable for washdown and humid environments.
Applications
1. Bottle Gripper / Carrier Gripper: Articulated or guide pins for bottle grippers used in filling machines, bottle washers, bottle-turning/flipping mechanisms, star wheels, or lifting mechanisms.
2. Neck/Mouth Gripping Fixture Assemblies: Gripping mechanisms that hold the mouth or body of PET or glass bottles during conveyance.
3. Pneumatic/Mechanical Gripper Hinge Pins: Rotation pins or positioning pins used for gripper fingers, levers, or swing arms.
4. Changeover or Wear-and-Tear Parts Locations: Labeled “Quantity 1,” these are typically used as replaceable small shafts or pins within gripping mechanisms.
Functions
1. Hinge/Pivot: Provides a rotational center for the grippers or levers, ensuring smooth opening and closing of the gripper.
2. Positioning and Connection: Ensures accurate relative positioning between the grippers, connecting rods, and brackets, preventing misalignment.
3. Anti-loosening/Fixed Press-Fit: The knurled section is pressed into the mounting hole to provide a friction lock, reducing the risk of loosening or rotating out during high-frequency opening and closing vibrations.
4. Load-bearing and Force Transmission: Withstands the reaction forces and kinetic impacts when gripping bottles or containers, ensuring reliable gripping.
5. Wear-Resistant Guidance: The smooth cylindrical section mates with a matching bushing or bore to provide sliding and rotational guidance (often used in conjunction with the bushing or sleeve described in the previous category).
Why Choose Us
Precision Manufacturing: Xinguangyuan uses advanced production technology to ensure each liner meets strict dimensional and quality standards.
10+ Years of Experience: Our expertise in the PET and beverage equipment industry ensures deep understanding of Sidel machine requirements.
Flexible Services: We offer OEM services and customization based on drawings or samples, catering to unique machine configurations.
Efficient Shipping: Global shipping via DHL/SF ensures fast delivery, reducing downtime for your production line.
Transparent Terms: Convenient T/T payment options and clear communication ensure a smooth purchasing experience.
*Replacement parts are not manufactured by the original equipment manufacturer. These SPARPAE RTS parts for brands such as KRONES®, SIDEL®, KHS®, SACMI®, AROL®, SIG®, SIPA®, and TECH-LONG® are alternatives to original equipment manufacturer parts; they are primarily manufactured in China and sold worldwide. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
