Our products are not OEM, they are only compatible parts
XGY-94167568
XGY-94167568
| Quantity: | |
|---|---|
KHS filling machine spare parts ,KHS spare part online,KHS Bottle Blowing Machine,KHS spare parts catalog,KHS shop,KHS spare parts catalogue pdf,KHS filling machine manual pdf,KHS machine
Our products are not OEM, they are only compatible parts.
Product Description

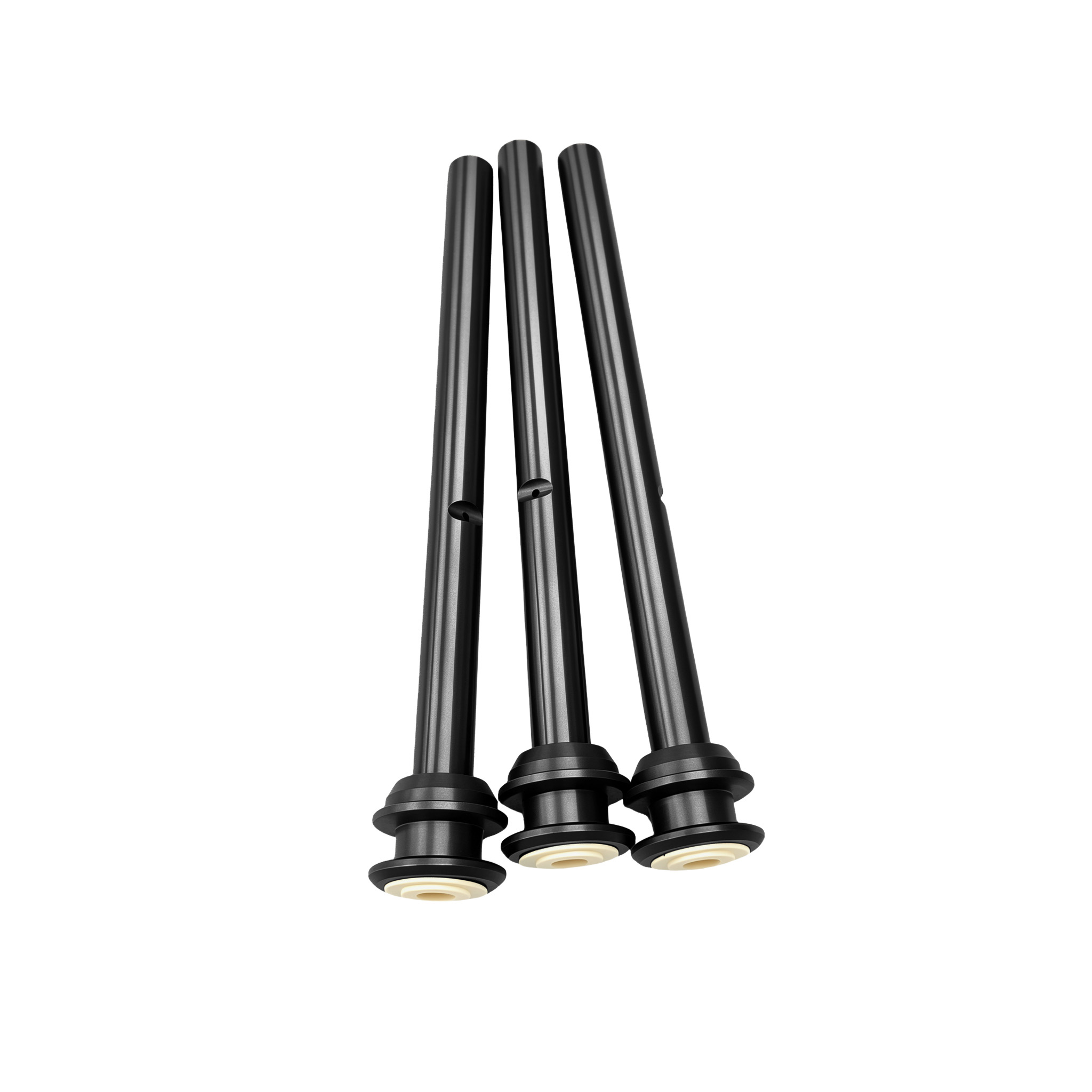

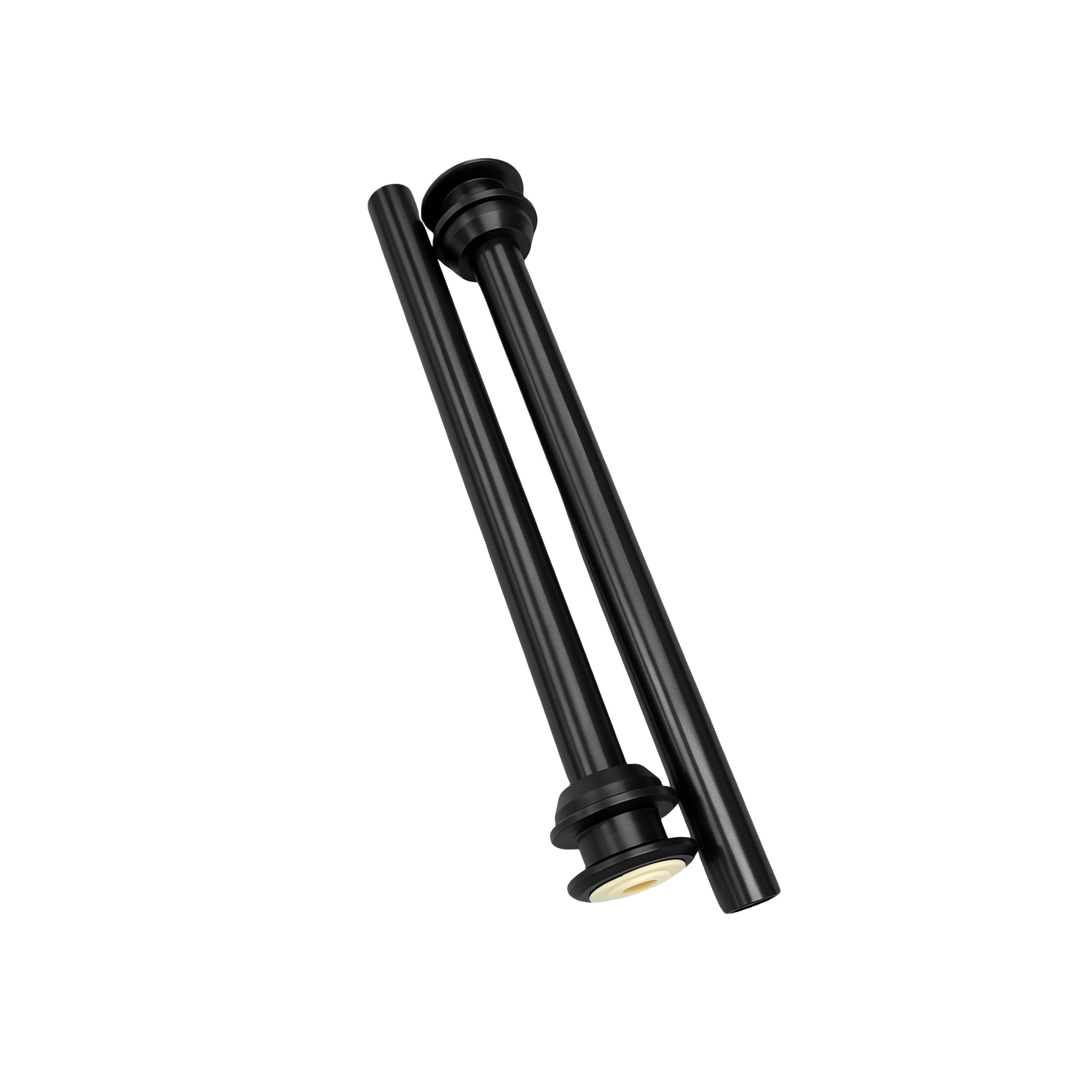

The component consists of a long, black metal pin or cylindrical guide rod with a ground or blackened surface finish.
One end features a distinct double-step flange or large shoulder (used for axial limiting, abutment against a mounting seat, or as a load-bearing step).
A small transverse through-hole is machined in the middle section of the rod (typically used for inserting split pins, R-type pins, retaining rings, or as a lubrication or positioning hole).
The end of the rod is a smooth shaft or has a slight chamfer; these are often arranged in groups and are precision-machined shaft/pin components.
Applications
1. The bottom frame of the equipment, as well as the hinge pins, swing shafts, or guide rods of the base assembly.
2. The connecting pins of the conveyor chain tensioning device, lifting slide, bottom mold, or bottle clamping mechanism.
Functions
1. Acts as a pin or shaft to support swing arms, connecting rods, rollers, or bushings, enabling low-friction rotation or sliding guidance.
2. The end step provides precise axial stopping, ensuring proper assembly clearance and motion paths for the mechanism.
3. The small hole in the center is used for mechanical anti-disengagement (such as pin locking) or auxiliary positioning, preventing the equipment from coming loose during high-frequency vibrations.
4. At the base frame, it serves to bear loads, transmit forces, and maintain the rigidity of the mechanism.
Why Choose Us
Precision Manufacturing: Xinguangyuan uses advanced production technology to ensure each liner meets strict dimensional and quality standards.
10+ Years of Experience: Our expertise in the PET and beverage equipment industry ensures deep understanding of Sidel machine requirements.
Flexible Services: We offer OEM services and customization based on drawings or samples, catering to unique machine configurations.
Efficient Shipping: Global shipping via DHL/SF ensures fast delivery, reducing downtime for your production line.
Transparent Terms: Convenient T/T payment options and clear communication ensure a smooth purchasing experience.
*Replacement parts are not manufactured by the original equipment manufacturer. These SPARPAE RTS parts for brands such as KRONES®, SIDEL®, KHS®, SACMI®, AROL®, SIG®, SIPA®, and TECH-LONG® are alternatives to original equipment manufacturer parts; they are primarily manufactured in China and sold worldwide. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
