XGY- 50377930
XGY- 50377930
| Quantity: | |
|---|---|
KHS filling machine spare parts ,KHS spare part online,KHS Bottle Blowing Machine,KHS spare parts catalog,KHS shop,KHS spare parts catalogue pdf,KHS filling machine manual pdf,KHS machine
Our products are not OEM, they are only compatible parts.
Physical Characteristics

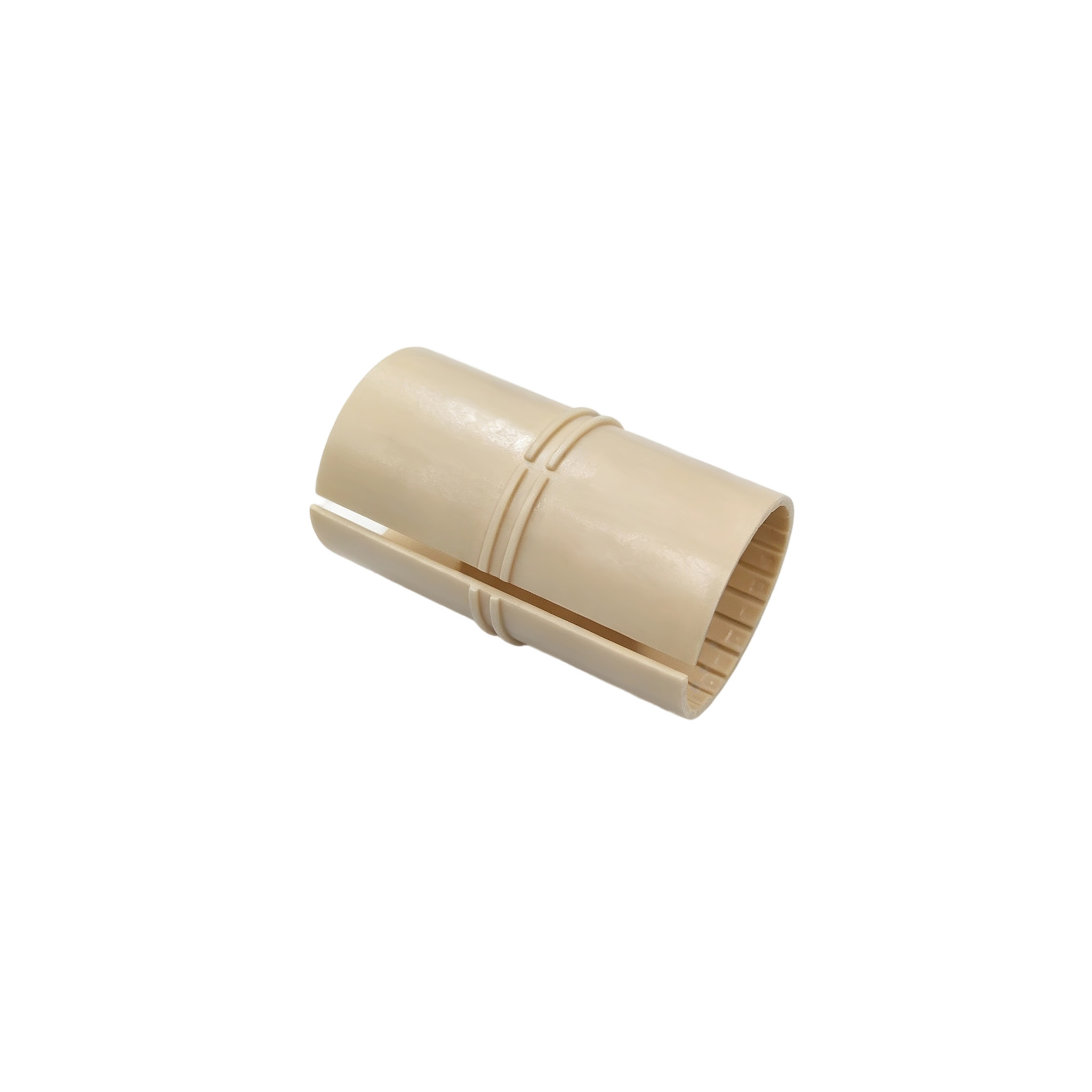

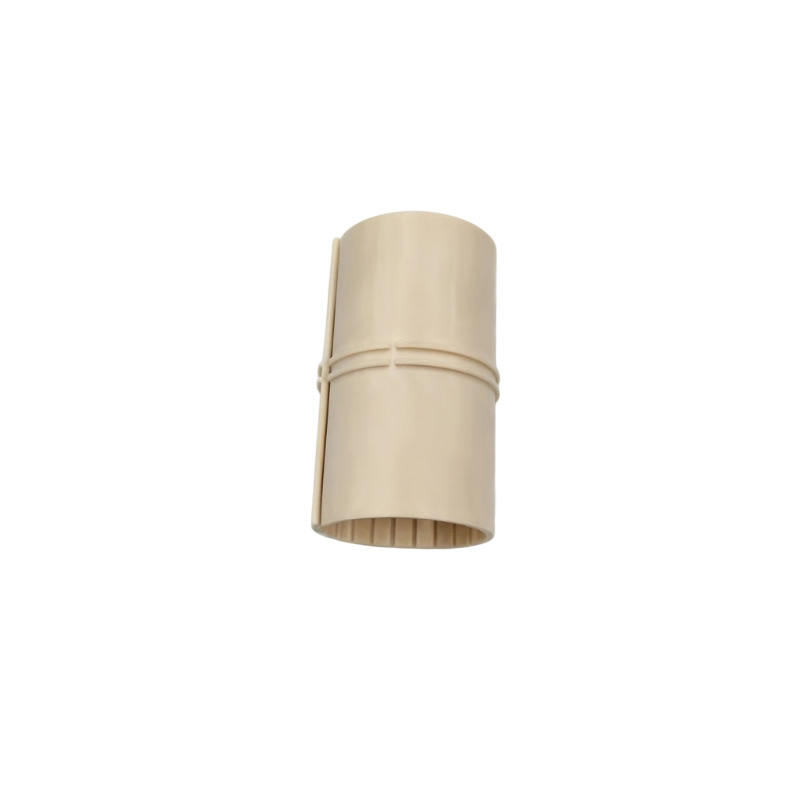

Overall Shape: A cylindrical, thin-walled sleeve with one end open, revealing the inner wall; the overall color is off-white/light yellow (natural PTFE color)
1.Slit Design: A full-length longitudinal slit on one side of the sleeve provides elastic expansion and contraction capabilities, facilitating installation and compensating for wear
2. Inner Wall Structure: The inner wall features multiple longitudinal grooves/ribs (spline-like) to allow fluid passage, reduce contact area, or increase elasticity
3. Outer Wall Positioning: The outer wall features several rings of annular ribs or positioning rings, which provide axial positioning after insertion into the mounting seat and prevent axial movement
4. Material and Surface: Modified PTFE, precision-machined after molding, with a smooth surface, dense texture, and self-lubricating properties
Product Features
1. PTFE: Self-lubricating and low-friction—Polytetrafluoroethylene (PTFE) has an extremely low coefficient of friction (0.04–0.1), allowing for dry operation without the need for water lubrication, thereby reducing water consumption and maintenance efforts.
2. No flavor carryover: PTFE hardly adsorbs beverage aromas, unlike elastomers such as EPDM, which absorb flavors like a sponge. This eliminates the risk of flavor carryover when switching between products, making it particularly suitable for small-batch, multi-variety production.
3. Easy-to-clean, food-grade: The smooth, non-stick surface of PTFE makes it extremely easy to clean during CIP (Clean-in-Place) and meets the highest food and beverage hygiene standards.
4. Temperature and corrosion resistance: It can be used stably over the long term at temperatures ranging from -200°C to +260°C. It withstands acidic and alkaline cleaning agents as well as beverage corrosion and is suitable for high-temperature CIP/SIP sterilization conditions.
5. Slotted elastic compensation: The longitudinal slotted design provides the sleeve with radial elasticity, automatically compensating for wear and assembly tolerances to maintain a consistent seal.
6. Lightweight: With a density of only 2.1–2.3 g/cm³, PTFE is significantly lighter than metal, reducing the inertia of moving parts and making it suitable for high-speed lifting applications.
Core Functions
1. Can Bell Lift Guide: Installed on the lift guide rod of the can bell in KHS can filling machines, it functions as a gapless bell guide to ensure smooth vertical movement and precise centering of the can bell, replacing traditional sliding seals that require water lubrication.
2. Filling Valve Piston Sealing / Guidance: Acts as a PTFE expansion joint seal for the internal piston or switching cylinder of the filling valve, providing dynamic sealing and guidance during reciprocating motion.
3. Flexible Compensation: The slotted elastic structure absorbs thermal expansion and contraction, mechanical vibrations, and assembly tolerances, preventing jamming or wear caused by rigid fits.
4. Vibration Isolation and Noise Reduction: PTFE’s damping properties absorb vibrations during lifting and lowering movements, reducing equipment operating noise.
5. Media Isolation: Isolates the beverage medium from the pneumatic control chamber inside the filling valve, preventing cross-contamination and pollution.
What scenarios does it apply to?
Inside the Filling Valve: Serves as the valve core, piston guide sleeve, and dynamic seal, coming into direct contact with product media such as beer and beverages
• Suitable Media: Beer, carbonated beverages, fruit juices, drinking water, CIP acid and alkali cleaning solutions, etc.
• Operating Conditions: High-frequency up-and-down motion components (can bell, filling valve piston) in medium- to high-speed rotary filling machines, reciprocating dozens of times per minute
• Industry scope: KHS filling equipment used in the food and beverage industry, including beer, beverages, drinking water, and dairy products
