Our products are not OEM, they are only compatible parts
XGY-0901005342
XGY-0901005342
| Quantity: | |
|---|---|
Suction Block, part number 0901005342, is primarily used on the label drum, label-gripping drum, or vacuum drum of Krones rotary labelers/hot-melt labelers (or vacuum drum mechanisms for cold glue/label sheet handling).
Our products are not OEM, they are only compatible parts.

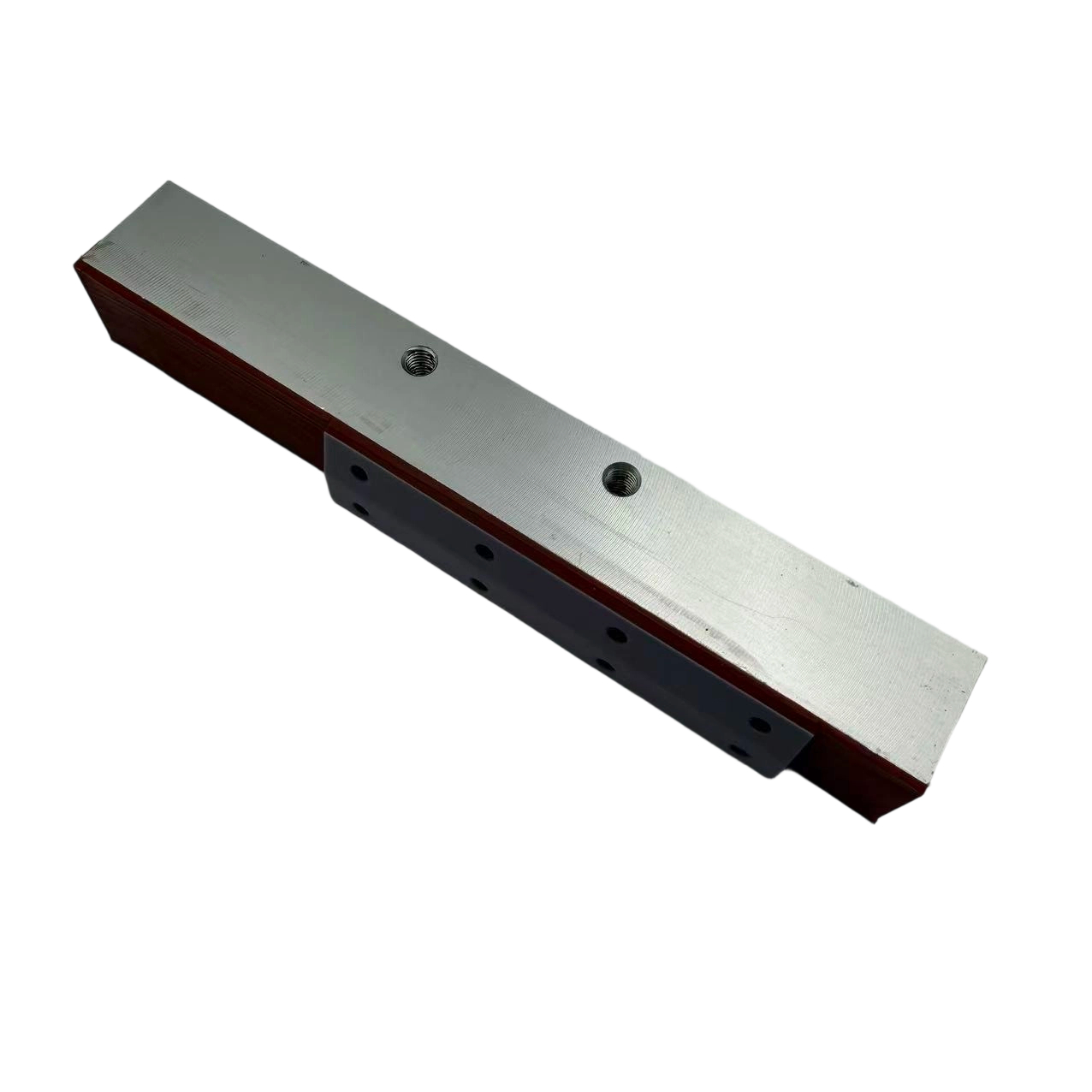

Structure: A long, rectangular block with a metal base in the center (typically a precision-machined aluminum alloy substrate); the working surface features vacuum suction holes/air channels and related mounting holes; Both ends and the working surface are typically coated with a layer of wear-resistant, low-friction, and moderately elastic material (such as special engineering plastics, PTFE wear-resistant surfaces, or cushioning rubber/sponge pad structures; the brown sections at both ends and the surface treatment shown in the figure represent such wear-resistant/cushioning composite structures).
Spare Part Attributes: Genuine Krones wear parts for labeling machines (Label Handling/Label Processing System), classified as spare parts related to labeling, adhesive application, and label retrieval.
The main products of the company
Blow molding and hydraulic buffers, filling assemblies, capping assemblies, rubber-sealed bearings, maintenance kits, compensating air hoses; production and service of cooling water pipes, PTFE heating tubes, PEEK/PET modified engineering plastics, and ceramic products.
Primarily used on label drums, label-gripping drums, and vacuum drums for Krones rotary labelers/hot-melt labelers (or vacuum drum mechanisms for cold glue/label sheet handling):
1. Installed in slots or screw-fastened positions on the outer circumference or panel of the vacuum label drum (vacuum drum/label drum) to form rows of label-suction surfaces.
2. Participates in the process of feeding, cutting, applying adhesive, and transferring labels to the surface of bottles, cans, or containers. May also be used on cutting drums or transfer drums to assist with vacuum-assisted label holding.
3. Specific applicable models and labeling stations are subject to the Krones eCat or spare parts exploded views (commonly found in Krones labeling modules and labeling units within integrated lines such as ErgoBloc).
Functions
1. Vacuum Label Suction: Connected to the machine’s vacuum system via internal/substrate air channels, this feature securely holds the label stock in place as the label drum rotates, preventing shifting, curling, or premature detachment.
2. Label Positioning and Conveyance: Working in conjunction with the label drum, cutter, and feed rollers/adhesive rollers, this system ensures that labels maintain the correct phase and position during high-speed rotation until they are transferred to the container.
3. Adhesive Application/Labeling Transition Support: In hot-melt or cold-glue processes, it serves as the contact and support surface for the label, helping it pass smoothly through the adhesive application zone and adhere to the bottle.
4. Cushioning and Scratch Protection: Elastic or low-friction layers at both ends and on the surface cushion contact, reduce label wear, and prevent scratches on the label or container surface, while compensating for minor installation and operational errors.
5. Ensuring Labeling Quality: Maintains label flatness and the stability of the adhesive application and adhesion processes, which in turn affect the final alignment, absence of air bubbles and wrinkles, and bond strength.
Xinguangyuan Precision Machinery Co., Ltd. boasts over ten years of experience in the PET industry, with rich R&D and manufacturing expertise in beverage machinery parts. Our team of engineers continuously optimizes production processes to deliver parts that meet the highest quality standards.
We offer customization services based on drawings or samples, catering to unique customer requirements. Our professional customer service team provides timely support, from pre-purchase consultation to after-sales technical assistance, ensuring a smooth purchasing experience.
All our spare parts adhere to strict quality control protocols, guaranteeing reliability and durability. We leverage efficient production processes to offer competitive prices, achieving mutual benefits and win-win cooperation with our customers.
Krones is a registered trademark. Our Suction Block XGY-0901005342 is a compatible replacement part and not manufactured or endorsed by Krones. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
