Name: Lock Template, Part Number 0901733358. In Krones filling and packaging equipment, these lock templates are typically used in the following key areas: labeling machines, filling valve assemblies or capping machines, and conveyor system guide rails.
Our products are not OEM, they are only compatible parts.

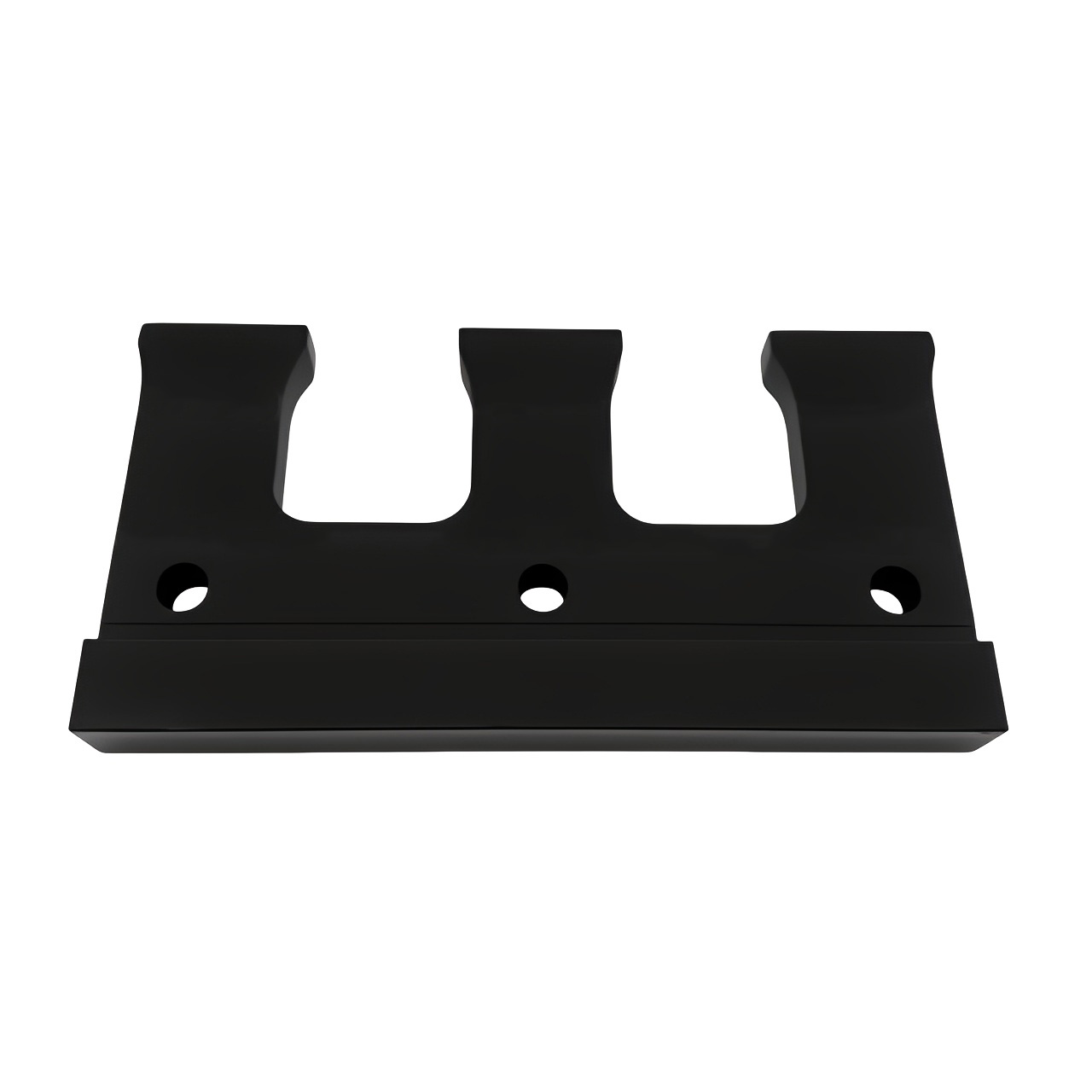

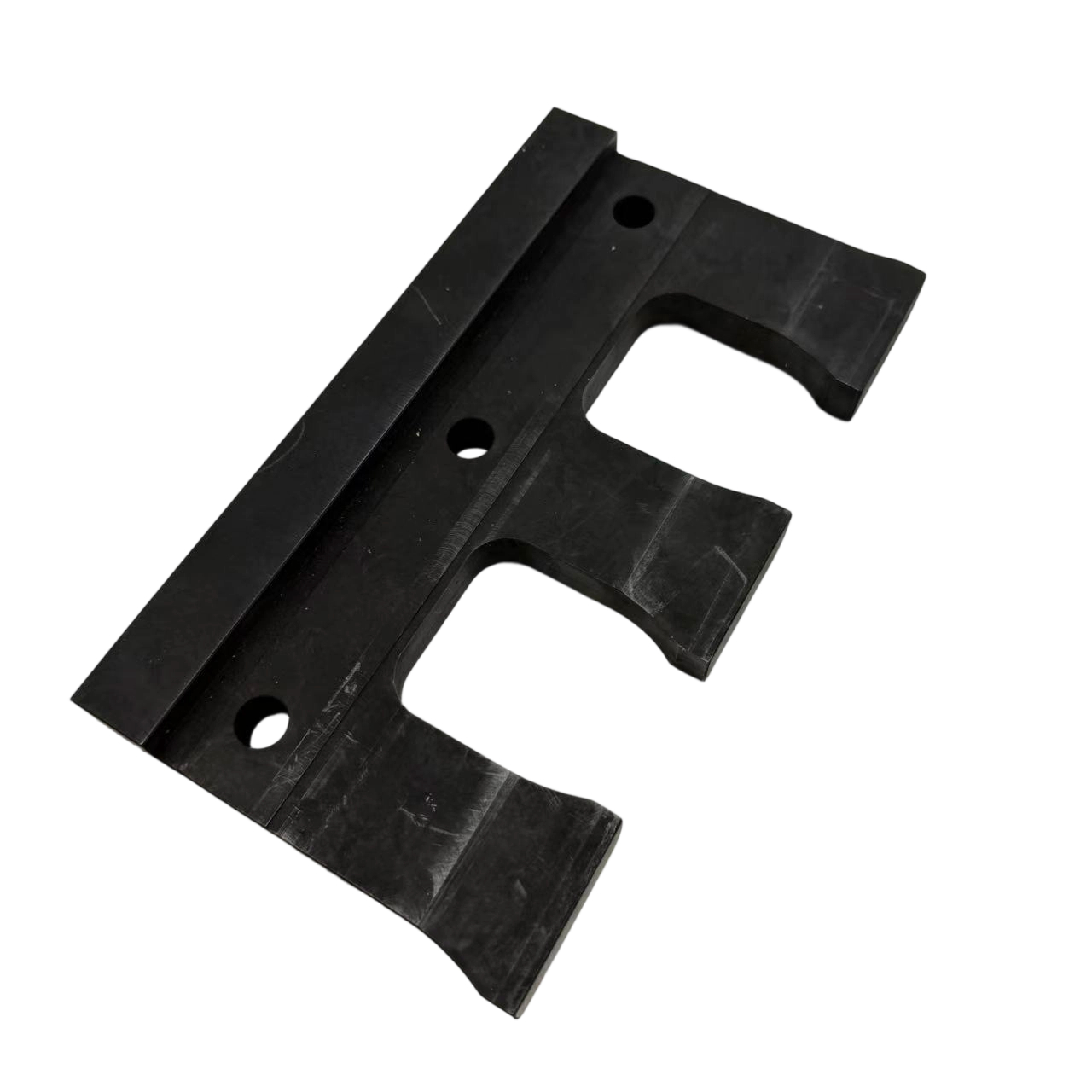

Structural Design: Flat and elongated in shape, with three evenly spaced U-shaped notches (or slots) at the top and a semicircular notch at the center of the bottom.
Hole Characteristics: There is one circular hole on each side and one in the center; these holes are typically used for inserting bolts, pins, or mounting sensors.
Overall Shape: Resembles a positioning jig or mounting plate, designed to physically mate with mechanical components of a specific shape.
Applications
In Krones filling and packaging equipment, these locking templates are typically used in the following key areas:
1. Labeling Machines: As label positioning jigs, they are used to secure or guide bottles of specific shapes (such as triangular prisms or squares), ensuring precise label placement without misalignment during the labeling process.
2. Filling Valve Assemblies or Capping Machines: As mechanical locking blocks, they are used to secure valve heads, capping heads, or star wheel assemblies during maintenance or changeovers, preventing them from loosening during operation.
3. Conveyor System Guide Rails: Installed on both sides of the conveyor belt to correct the bottles’ path and prevent them from tipping over or tilting.
4. Molds or Tooling Fixtures: Used as temporary or semi-permanent mechanical locking/positioning references during equipment commissioning or changeovers.
Functions
1. Precise Positioning and Locking: Through physical engagement with mechanical components (such as bottle holders, valve seats, and guide rails), this system ensures that the equipment maintains positioning accuracy at the millimeter or even micrometer level even during high-speed operation.
2. Anti-Loosening and Securing: In vibrating environments, this template is secured to the base with bolts or pins to prevent component displacement caused by vibration, thereby ensuring production safety.
3. Guidance and Limiting: U-shaped and semicircular notches serve as guide slots for bottle necks, bottle bodies, or mechanical shafts, limiting their range of motion and preventing collisions.
4. Modular Changeover Support: When switching between different bottle types or products, simply replacing the corresponding Lock Template allows for quick adaptation to new specifications, enhancing production line flexibility.
