Our products are not OEM, they are only compatible parts
XGY-0904117950
XGY-0904117950
| Quantity: | |
|---|---|
Suction Block, Part Number: 0904117950. Suitable for Krones labeling machines/labeling stations, label picking/feeding, and areas for conveying waste label backing paper or materials; may also be used as a vacuum-held guide rail in packaging, handling, and positioning mechanisms.
Our products are not OEM, they are only compatible parts.

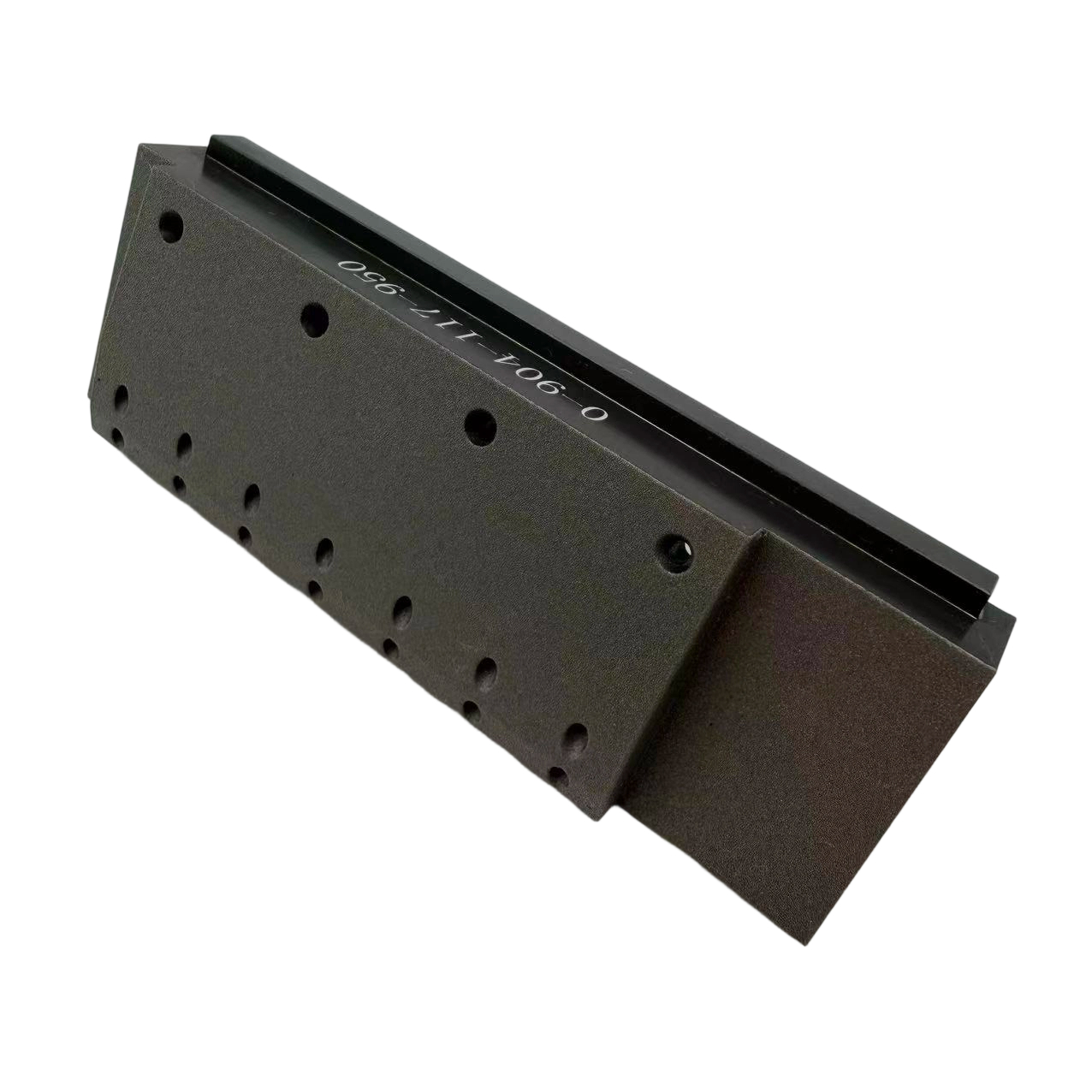

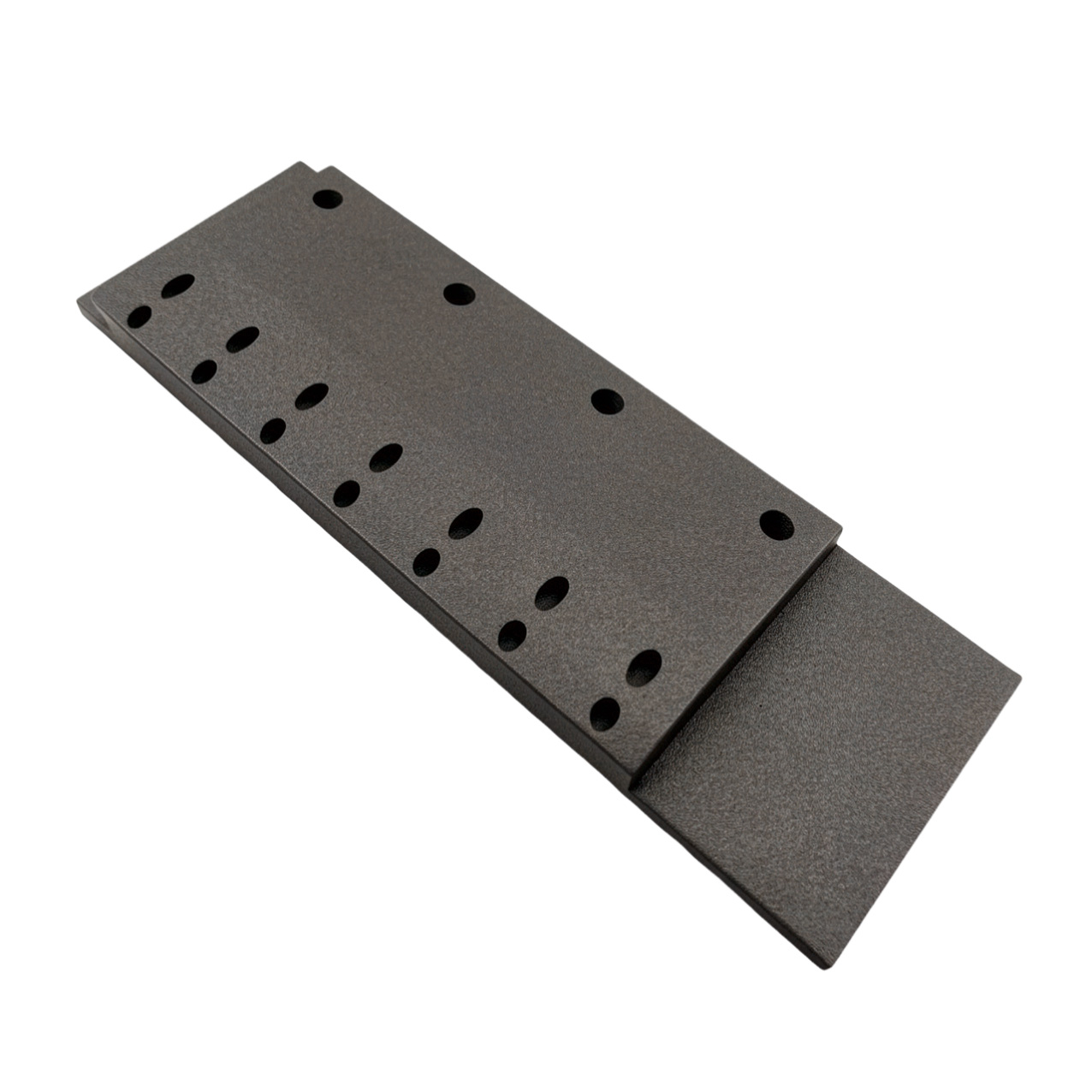

Rectangular pickup/holding elements featuring multiple mounting holes, vacuum/venting ports or channels, and positioning steps/guide surfaces.
Used to connect to a vacuum system to pick up and hold workpieces (such as labels, films, gaskets, bottle/cap components, or lightweight workpieces, as defined by the equipment station) during movement.
Based on the drawing, the material appears to be a dark-colored machined metal part or a surface-treated/engineered material part, emphasizing wear resistance, dimensional stability, and reliability in the equipment’s operating environment; the specific material is subject to the Krones BOM/drawings.
Typically used in conjunction with suction cups, vacuum valves/manifolds, seals, guide rails, or pick-and-place mechanisms.
Applications
1. Krones labeling machines/labeling stations, label pickup/feed stations, and areas for conveying waste label backing paper or materials; may also be used as vacuum-held guide rails in packaging, handling, and positioning mechanisms.
2. Commonly found at workstations requiring “pick up—transfer—release” operations, such as label pickup, picking up parts like sheets, films, or lids, temporary storage and positioning of workpieces, or smooth transition sections.
Functions
1. Uses vacuum suction to pick up and hold workpieces, preventing slippage, warping, misalignment, or dropping.
2. Provides guidance, support, and positioning along the motion path to ensure the workpiece remains stable as it moves to the next station.
3. Coordinates with mechanical movements to perform suction, transfer, and release (vacuum on/off controlled by valves or manifolds).
4. Multi-hole or slotted structures are used for air passages, mounting and positioning, or to reduce bulk or create clearance.
Krones is a registered trademark. Our Suction Block is a compatible replacement part and not manufactured or endorsed by Krones. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
