Our products are not OEM, they are only compatible parts
XGY-0904197398
XGY-0904197398
| Quantity: | |
|---|---|
Name: Shaft, Part Number 0904197398. In Krones filling and packaging equipment, this type of drive shaft is typically used in the following key components: filling valve lifting mechanisms, capping machines, and labeling machines.
Our products are not OEM, they are only compatible parts.
Material and Surface Finish: The shaft has an overall metallic luster and is made of 316 stainless steel. The surface has undergone precision grinding or chrome plating, providing high hardness, wear resistance, and rust resistance to meet food safety and high-frequency operation requirements.

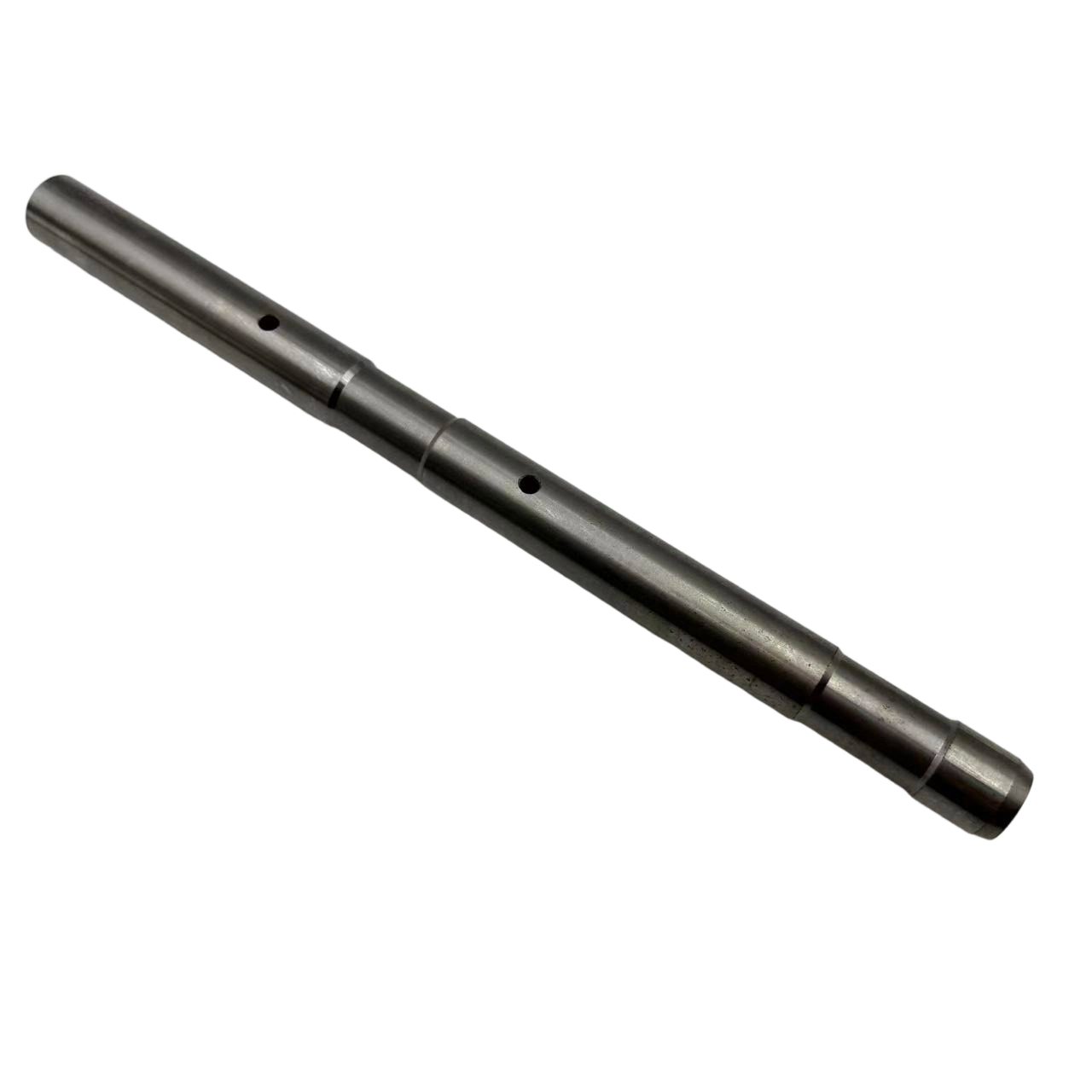

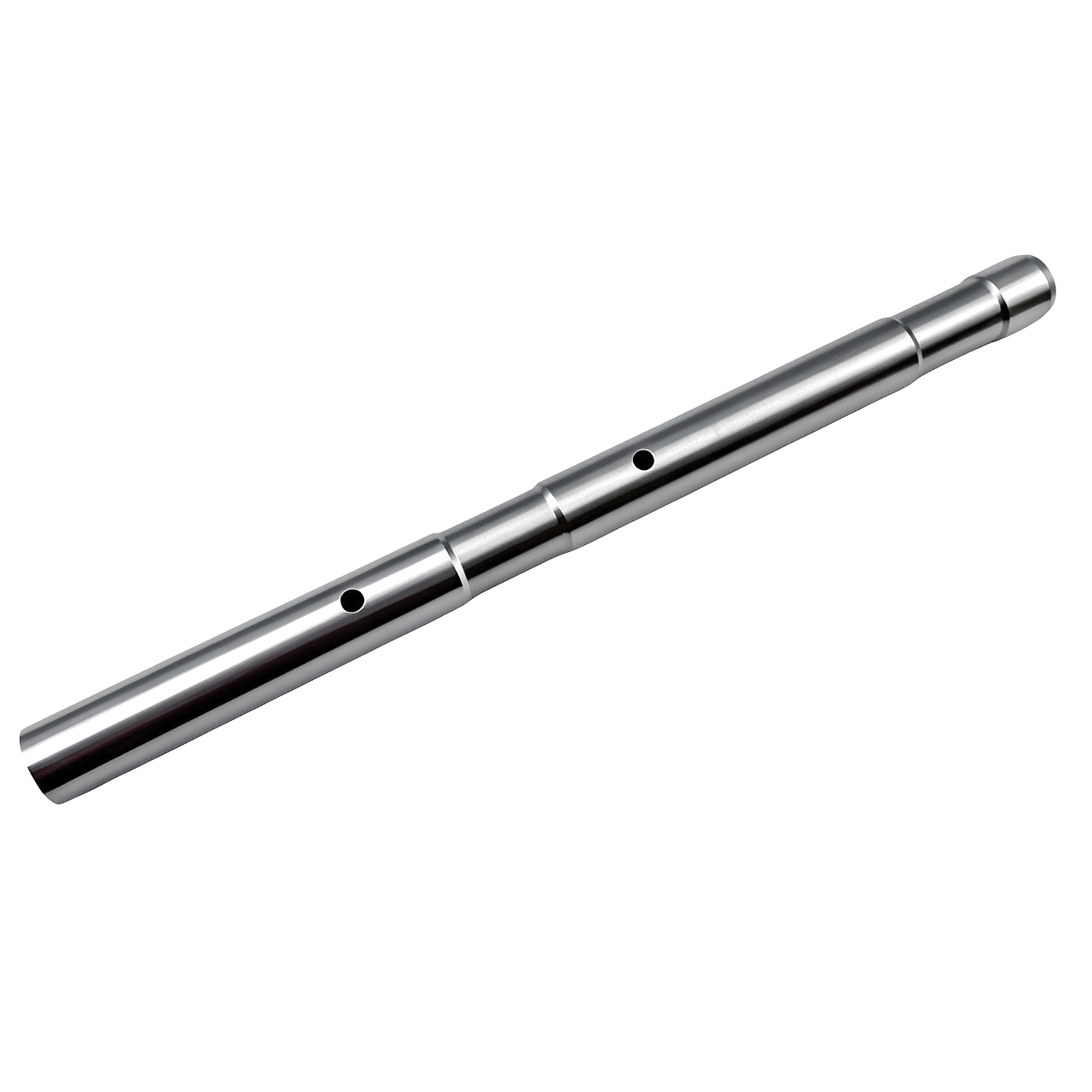

Structural Features: The shaft is elongated and cylindrical in shape, featuring a stepped or eccentric design, with varying diameters across different sections to accommodate different bearings or couplings.
Bore Features: The shaft body is equipped with multiple evenly spaced circular bores. These bores are typically used to install locating pins (to ensure precise alignment with other components), set screws (to secure gears or cams), or as sensor detection points.
Applications
In Krones filling and packaging equipment, these drive shafts are typically used in the following key components:
1. Filling valve lifting mechanism: As the cam follower or connecting rod spindle that drives the up-and-down movement of the filling head.
2. Capping machines: To transmit torque and drive the capping head or star wheel for precise, incremental rotation.
3. Labeling machines: As drive shafts for label transport or indexing mechanisms.
Conveyor system drive end: As the main shaft or deflection shaft used to drive the conveyor belt.
Functions
1. Power Transmission: As the core of a mechanical transmission system, it converts the rotational motion from a motor or servo drive into the motion required by actuators (such as lifting, pushing/pulling, and rotating).
2. Precise Positioning and Guidance: Through specific structures on the shaft and properly matched bearings, it ensures positional accuracy and synchronized motion of mechanical components during high-speed operation.
3. Load-Bearing and Connection: It withstands shear, bending, and tensile forces during equipment operation while connecting transmission components such as gears, pulleys, and couplings.
Krones is a registered trademark. Our Shaft XGY-0904197398 is a compatible replacement part and not manufactured or endorsed by Krones. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
