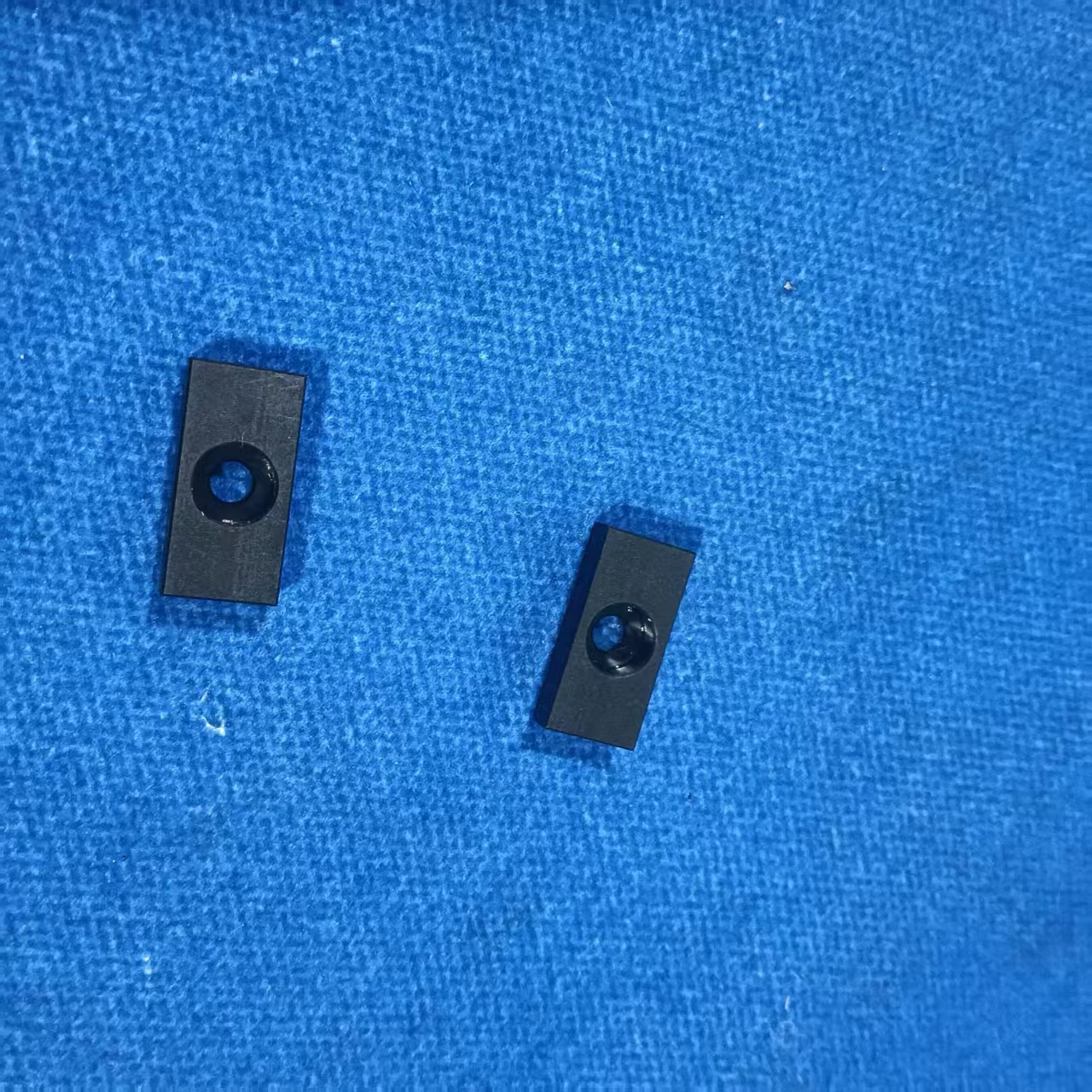

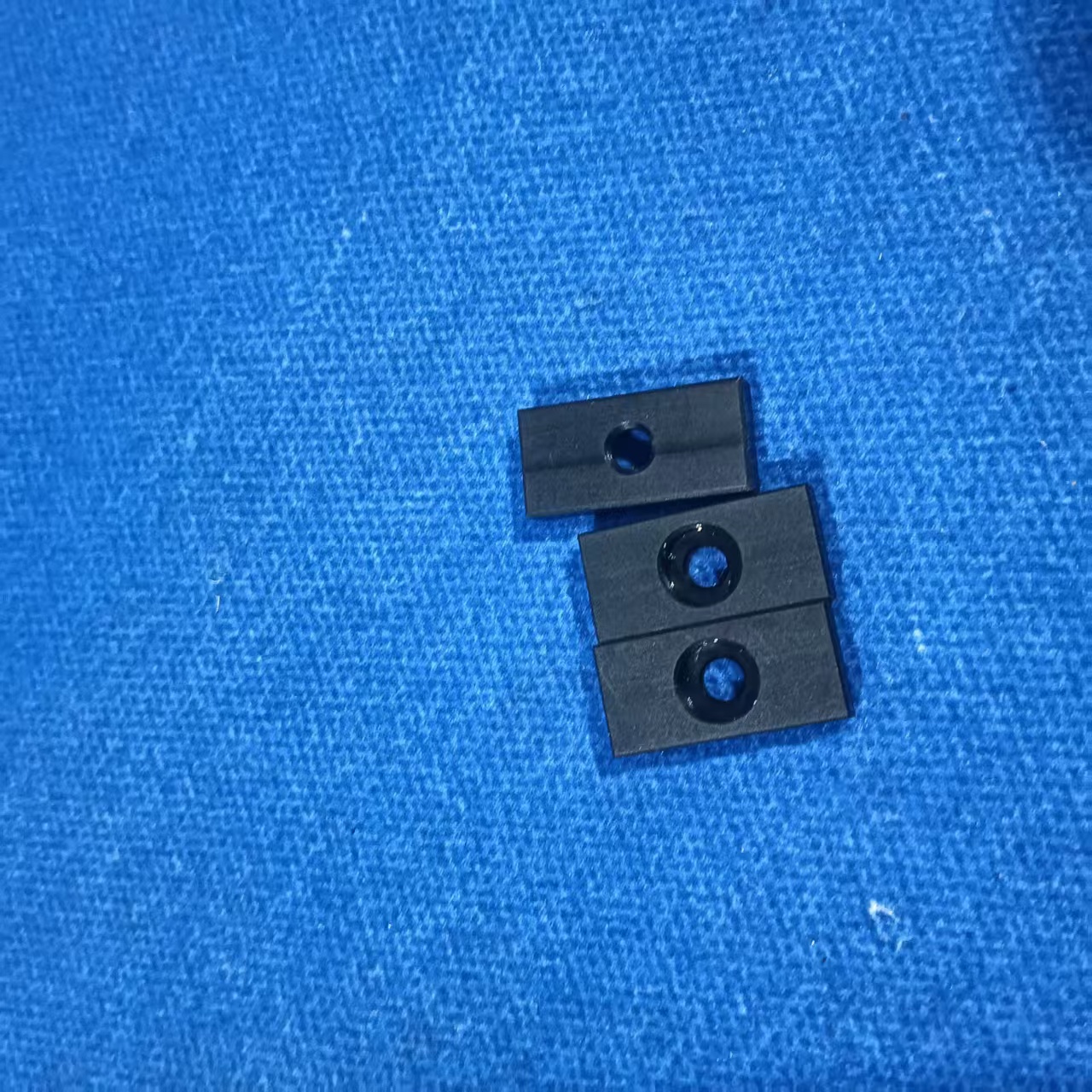

Wedge Code: 1780331791. Commonly used for fine-tuning the spacing of Krons guide rails, adjusting the angle or height of bottle clamps or mounting brackets (such as fixtures or bottle holders), and securing mechanisms to prevent loosening.
Our products are not OEM, they are only compatible parts.
Product Description

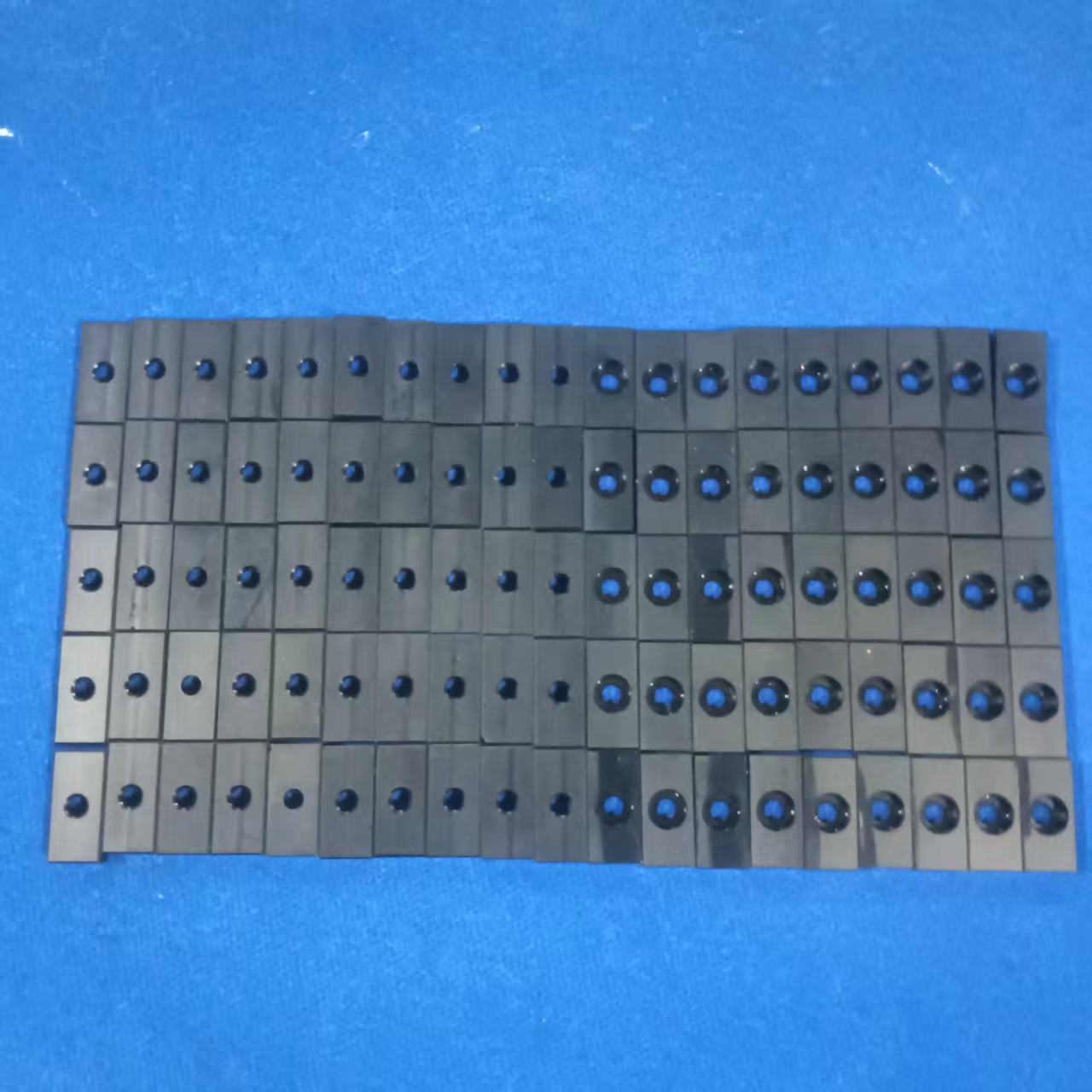

Wedge-shaped/beveled components with a dark matte finish, featuring high structural strength and wear resistance, suitable for high-speed filling and packaging line environments.
The main body features mounting holes (which may be countersunk or through holes) for easy bolting to equipment bases, slide rails, or fixture base plates.
The beveled design enables precise clearance adjustment and height compensation in confined spaces, as well as providing self-locking clamping force.
Applications
1. The bottom of Krones filling, capping, bottle washing, labeling, star wheel transfer, lifting mechanisms, guide rail adjustment, or clamping assemblies.
2. Commonly used for fine-tuning guide rail spacing, compensating for the angle or height of bottle clamps/fixtures (such as the aforementioned fixture/bottle holder), and as locking points to prevent loosening of mechanisms.
3. The specific installation location, wedge angle, and adapter components must be verified against the assembly drawings and parts lists for the specific machine model.
Functions
1. Fine-Tuning and Compensation: Utilizing the principle of an inclined plane, the height, clearance, or clamping force of associated components can be precisely adjusted by moving the wedge laterally or longitudinally.
2. Locking and Positioning: When used in conjunction with bolts, these components securely lock guide rails, protective plates, or moving mechanisms in their set positions, preventing loosening caused by prolonged vibration.
3. Clearance and Support: Acting as shims or transition pieces, they provide specific geometric profiles to meet assembly requirements in compact spaces.
Features
1. Dark-colored, wear-resistant material (steel or high-performance polymer) that is highly pressure-resistant and easy to maintain (specific material grades are subject to official specifications).
2. The angle of the inclined surface, flatness, and hole positioning accuracy directly determine the sensitivity of fine adjustments and the stability of the mechanism’s operation.
3. These are easily inspectable mechanical adjustment components: wear on the inclined surface, burrs, or enlargement or fracturing of internal threads or hole diameters can cause play in the mechanism, abnormal noises, or bottle misalignment.
Made of food-grade material, heat resistant.
It is designed for quick installation, reducing maintenance time and downtime. One hole position is fixed.It maintains tight fastening over long periods, preventing equipment loosening and potential damage.
