XGY-11285206070
XGY-11285206070
| Quantity: | |
|---|---|
Our products are not OEM, they are only compatible parts.

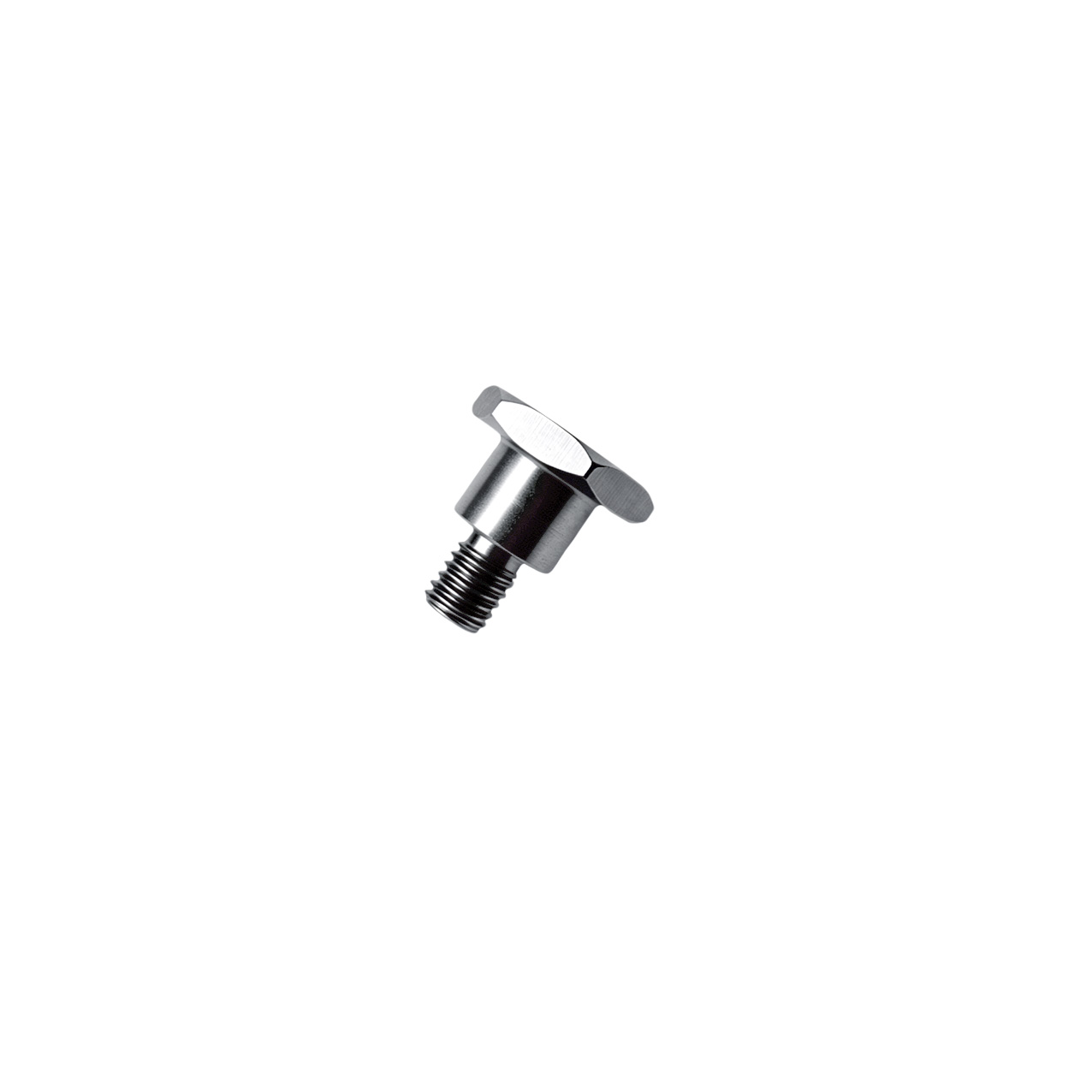

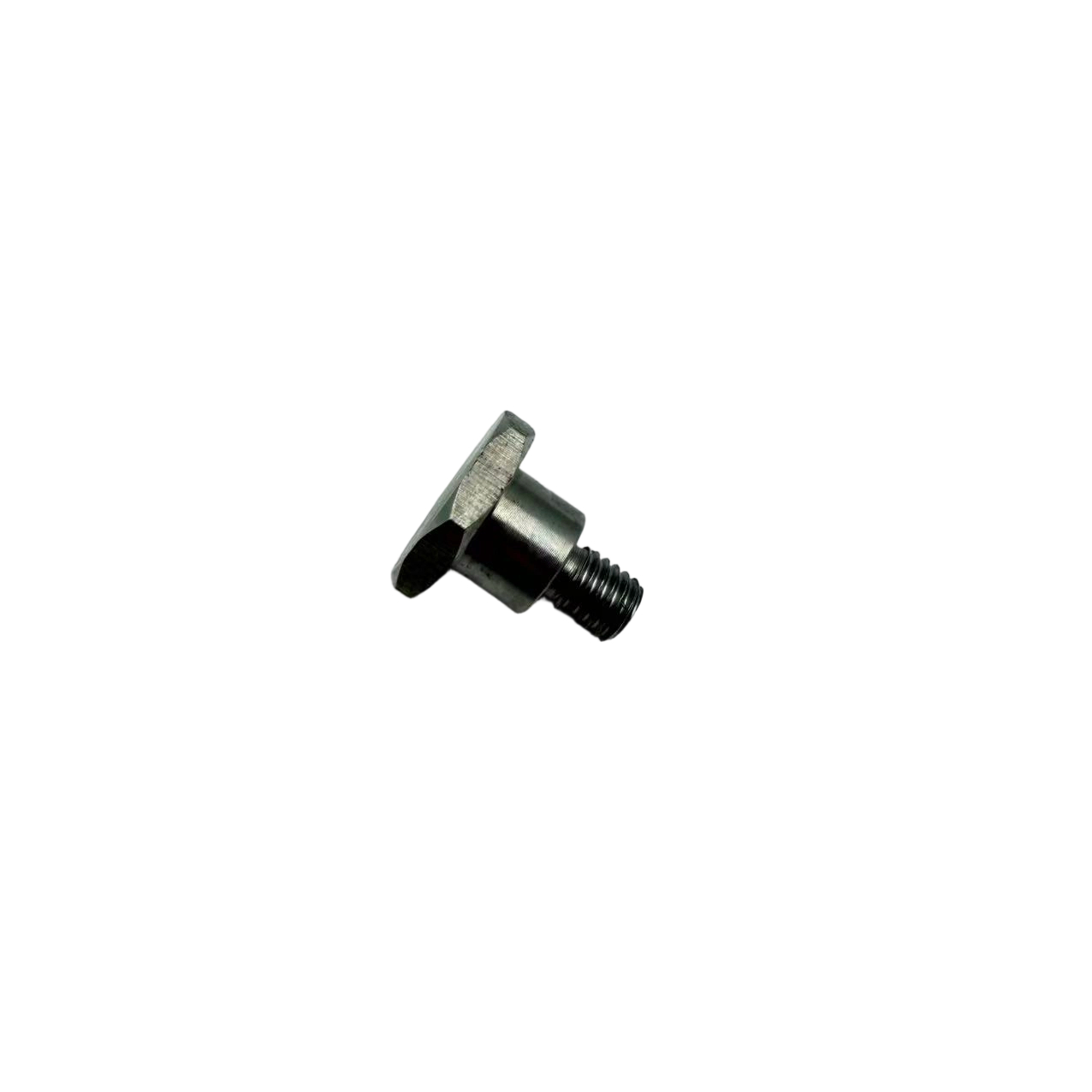

Bolts with a highly polished, machined metal finish, made of stainless steel or plated carbon steel. The upper portion features a flat, symmetrical double-ear wing head (for quick tightening and loosening by hand), while the lower portion consists of a precision-machined external threaded section; the shank is short and features a stepped transition. It is commonly used in conjunction with components such as shafts, bearings, adjustment springs, plastic bushings, and bottle clamps to serve as manual locking, fine-adjustment limiters, or quick-release fasteners on production line equipment.
Applications
1. Fine-adjustment mechanisms for Krones filling valve assemblies; clamping/lifting buffer points on capping heads; bottle inlet ends of bottle-washing turntables; tensioning points at star wheel transfer points; direction-change adjustment points on conveyor guide rails; or quick-release locking positions on protective plates/cover plates.
2. Typically used in conjunction with the aforementioned bushings, spring plates, or slots to clamp moving or stationary parts through frame holes, or as stop screws for manual fine adjustment.
3. Specific installation levels, mating hole diameters, and tightening torques must be verified against the assembly drawings and parts lists for the specific machine model.
Functions
1. Manual Tightening and Quick Adjustment: Provides the convenience of rapid locking or release without the need for additional wrenches, facilitating production line changeovers, routine inspections, and fine-tuning of clearances.
2. Positioning and Limiting: When used in conjunction with countersunk holes or stepped surfaces, they serve as mechanical hard stops or positioning references for precise assembly, preventing components from loosening or shifting during high-speed operation.
Features
1. The short, stubby structure concentrates force. The silver-white surface finish (such as natural stainless steel, polished, or zinc-plated) is suitable for production line environments with moisture and cleaning agents (specific material grades are subject to official specifications).
2. Thread tolerances, the flatness of the wing head edges, and the concentricity of the shaft steps directly determine the smoothness of operation, anti-loosening effectiveness, and the component’s own fracture resistance and service life.
3. These are components subject to frequent manual installation and removal, vibration, and are prone to damage during routine inspections: Long-term alternating loads, cleaning, and manual tightening can easily lead to thread stripping or seizing, deformation or slippage of the wing head edges, fatigue cracks in the shaft, or surface corrosion.
Krones is a registered trademark. Our Bolt XGY-11285206070 is a compatible replacement part and not manufactured or endorsed by Krones. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
