Our products are not OEM, they are only compatible parts.

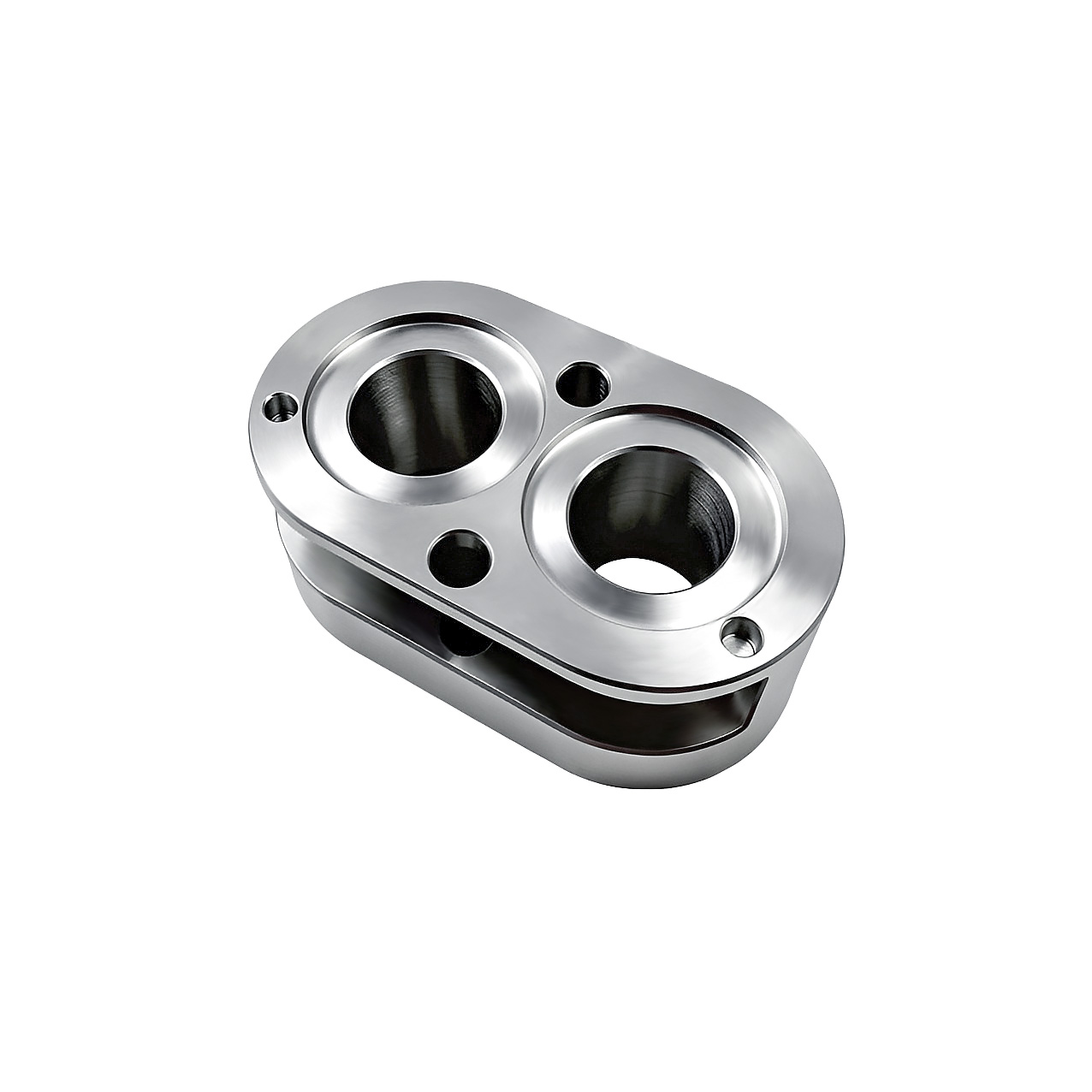

Precision-machined, multifunctional wedge blocks/slides featuring high structural rigidity, excellent wear resistance, and corrosion resistance, suitable for high-speed micro-movement, pressure-bearing applications, and CIP cleaning in wet areas on beverage and food production lines.

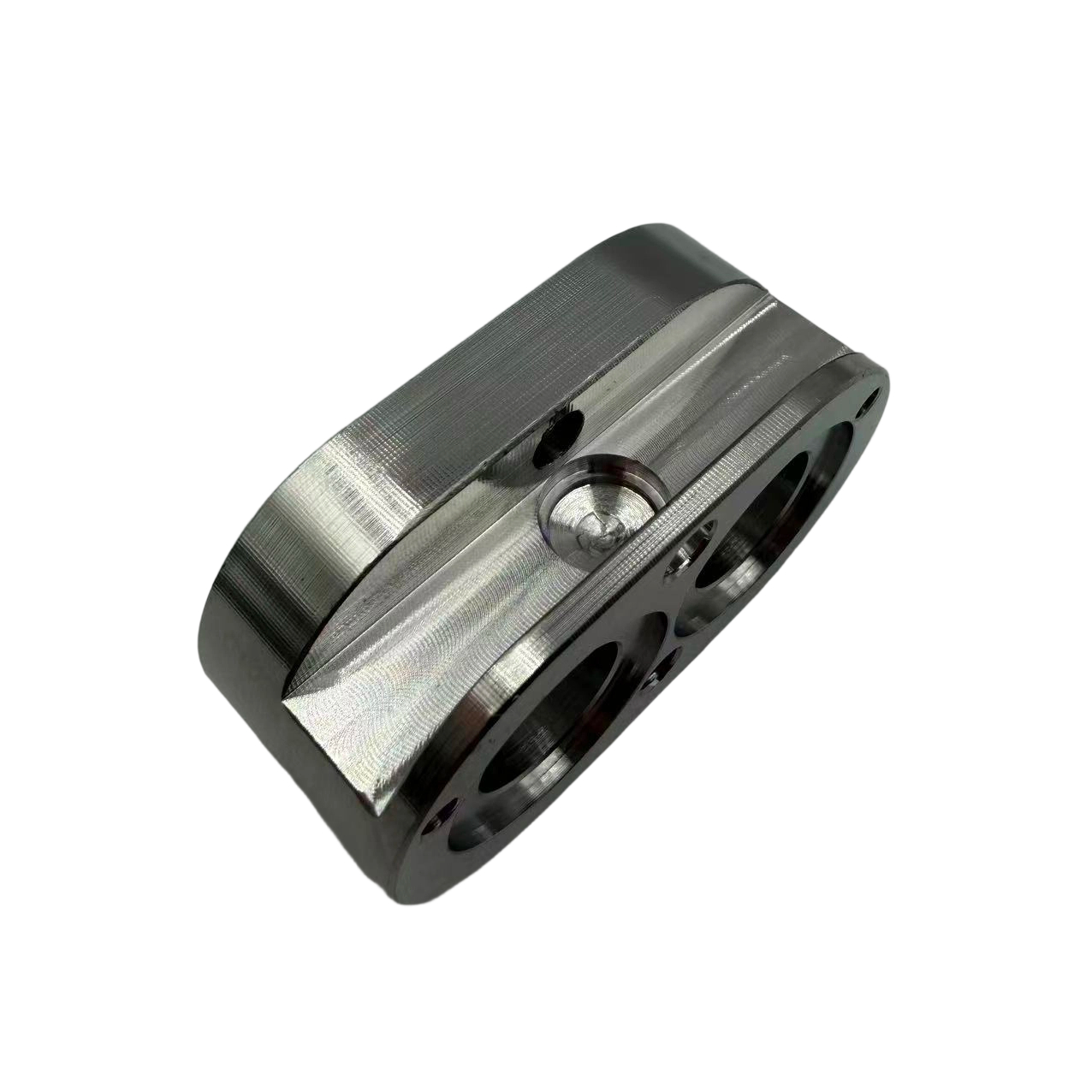

The design, featuring two large holes and multiple small holes, ensures high-precision coaxiality and positional accuracy, while the side grooves and bevels provide mechanical leverage, allow for fine stroke adjustment, or serve as reference points for slider guideways.
These components are critical, high-wear-rate positioning and adjustment parts that are subject to frequent impacts, sliding friction, and regular inspections.
Applications
1. Krones filling valve assembly lifting and guiding mechanisms; wedge-shaped push blocks for capper head clamping/release; fine-adjustment slides at the transfer points of bottle washing and labeling star wheels; conveyor guide rail pitch adjustment or tensioning devices; and locking wedges for various quick-change fixtures.
2. Typically secured to the frame or moving arm using bolts (such as countersunk bolts) and cylindrical or slotted pins, they work in conjunction with bushings and shafts to enable linear sliding or slight oscillation, converting rotational or pneumatic motion into precise linear clamping or release actions.
3. Specific installation levels, mating ramp angles, and hole position tolerances must be verified against the assembly drawings and parts lists for the specific machine model.
Functions
1. Mechanical force amplification and locking: Utilizes a wedge-shaped inclined surface to convert axial thrust into a powerful normal clamping force, eliminating mechanical play and achieving a self-locking hard stop.
2. Precision guidance and adjustment: Dual large bores support and guide the shaft/pin, while side grooves provide sliding travel space, enabling high-precision micro-alignment and compensation.
3. Structural Connection Hub: The integrated multi-bore design accommodates fastening, positioning, cable routing, or fluid flow, simplifying the assembly space for complex mechanisms.
Features
1. High-rigidity metal components feature excellent rigidity and high surface finish, making them suitable for high-frequency sliding, compression, and micro-motion applications (specific material grades are subject to official specifications).
2. The straightness of the inclined surfaces and groove walls, the concentricity and perpendicularity of large and small holes, and the edge chamfers directly determine sliding smoothness, positioning accuracy, and service life.
3. These components are subject to frequent friction and shear forces: prolonged compression and cleaning can lead to scratches on inclined surfaces and inside holes, edge chipping and curling, wear on small-hole threads and pin holes, overall loosening, or jamming of mating parts—resulting in positioning drift, abnormal noise, and operational lag.
Krones is a registered trademark. Our wedge is a compatible replacement part and not manufactured or endorsed by Krones. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
