Our products are not OEM, they are only compatible parts.

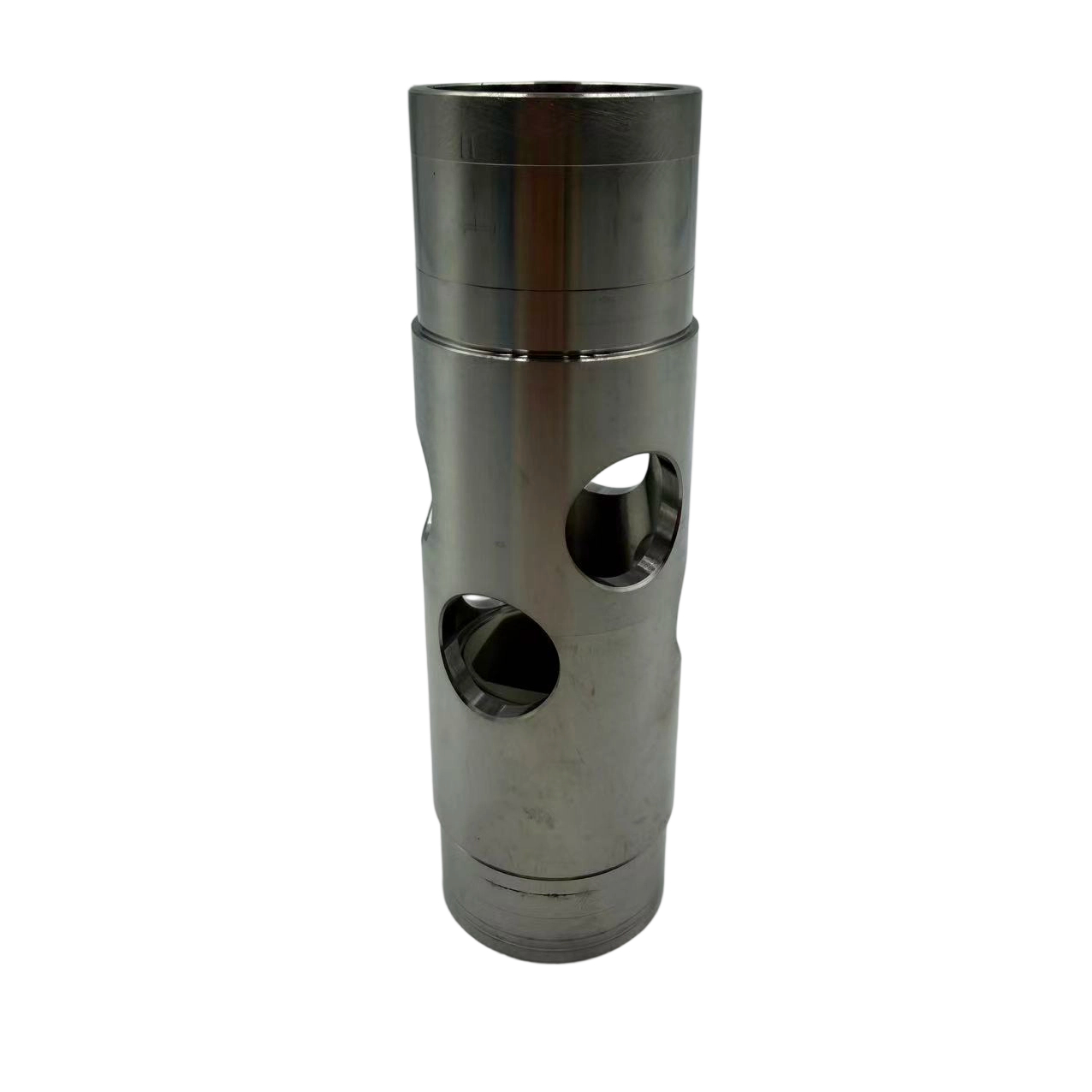

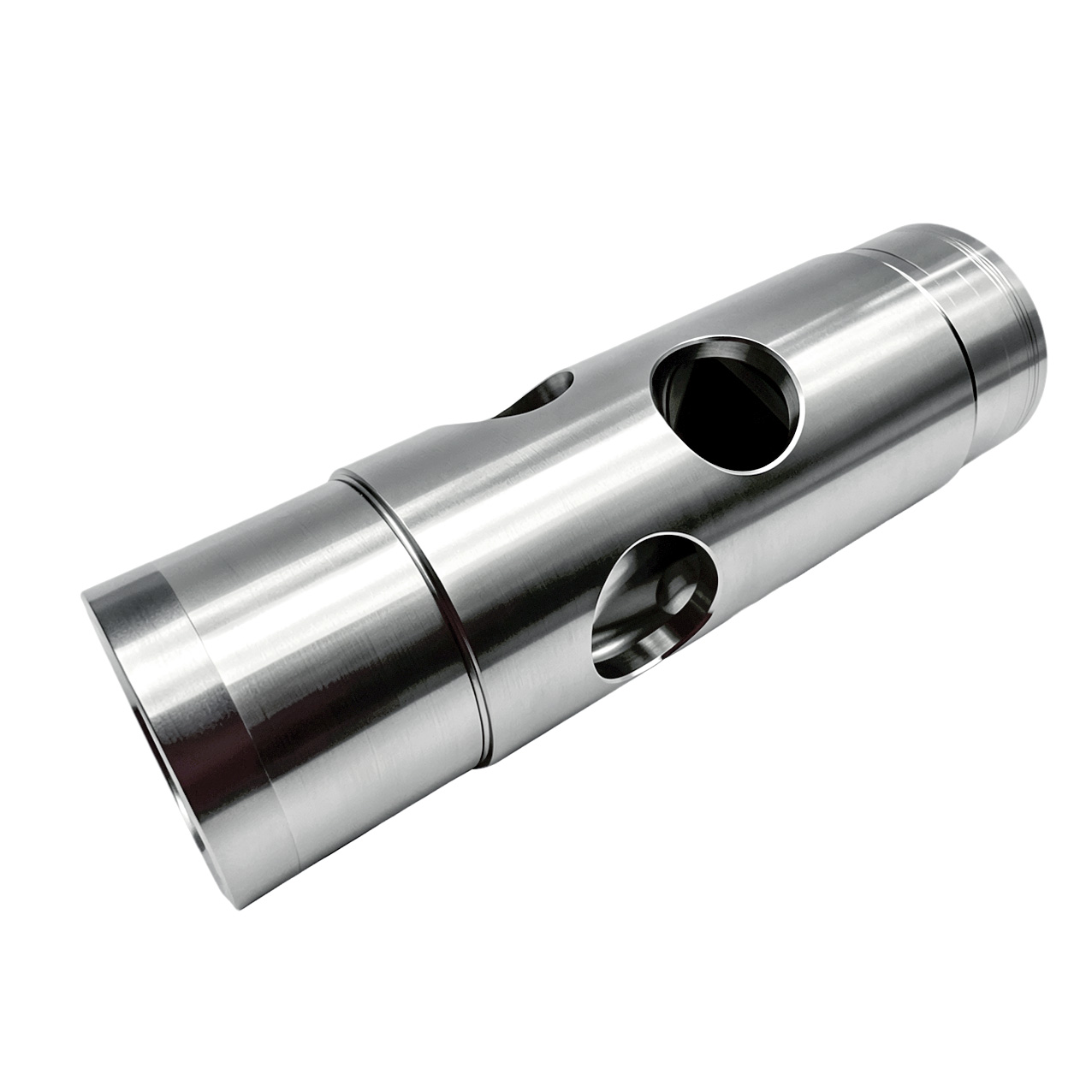

Precision-machined hollow tubular/shaft-shaped parts. The overall structure is a cylinder with varying diameters or stepped sections; the outer surface exhibits distinct machining and grinding marks along with a highly reflective mirror-like finish (presumed to be stainless steel or high-strength alloy steel, meeting the sanitary requirements for food and beverage production lines). The tube body features multiple through-holes and side holes of varying sizes (including circular and possibly irregular-shaped or elongated slots), with a ring-shaped step or sealing stop shoulder in the middle; one end may be slightly tapered or chamfered. This component works in conjunction with the Cylinder Pin (0724512241), Bushing (0902045966), Roller (0900787461), and other parts, typically serving as a composite piping node for internal fluid (water/gas/cleaning solution) channels, sensor feed-throughs, or mechanical linkages. Specific materials and tolerances are subject to the official BOM.
Applications
1. Internal multi-line distribution piping for various media (CO₂, beverage, cleaning solution) within Krones filling valve assemblies; pneumatic pilot channels for capping head cylinders and clamps; lubrication or vacuum suction lines for bottle washing and labeling mechanisms; and protective conduit sleeves for routing sensor cables.
2. Typically connected to the main frame or valve body via end threads, clamps, or press-fit connections; equipped with internal pins or bushings; and featuring side ports for connecting to external hoses, nozzles, or detection probes, forming a multifunctional zone in conjunction with the aforementioned fasteners and roller mechanisms.
3. Specific installation levels, nominal diameter, side port angles, and sealing types (O-ring/tapered surface/welded joint) must be verified against the fluid diagrams and spare parts lists for the specific model.
Functions
1. Fluid Transfer and Distribution: As a combination of a central channel and side ports, it enables precise medium delivery and pressure maintenance from a single inlet to multiple directions and layers.
2. Structural Support and Guidance: The hollow design accommodates internal pins or bolts, while the stepped surfaces provide axial stops and sealing pressure, also serving as a sliding or rotating housing for moving parts.
3. Sanitary Integration: The smooth outer walls and strategically placed openings minimize the risk of liquid accumulation, scaling, and microbial growth during frequent cleaning on production lines.
Features
1. High-precision polished/machined stainless steel components combine toughness with pressure resistance, making them suitable for production lines with high-frequency pulsations, temperature fluctuations, and CIP chemical cleaning (specific material grades such as 1.4301/1.4571 or heat treatment specifications are subject to official standards).
2. The surface finish of the inner bore, control of burrs on the edges of side ports, the concentricity of the outer diameter, and the perpendicularity of the shoulder directly determine sealing reliability, flow resistance, and service life.
3. These components are subject to high-frequency media erosion and require disassembly, inspection, and maintenance: prolonged exposure to pressure and cleaning can lead to pitting or scratches on the inner walls, wear on the edges of side ports, indentations or scuffing on the step sealing surfaces, and impacts on the outer diameter. Loose threads or bayonets can also cause micro-leaks and pressure drift
Krones is a registered trademark. Our Piping XGY-0901859797 is a compatible replacement part and not manufactured or endorsed by Krones. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
