Our products are not OEM, they are only compatible parts.
Product Description

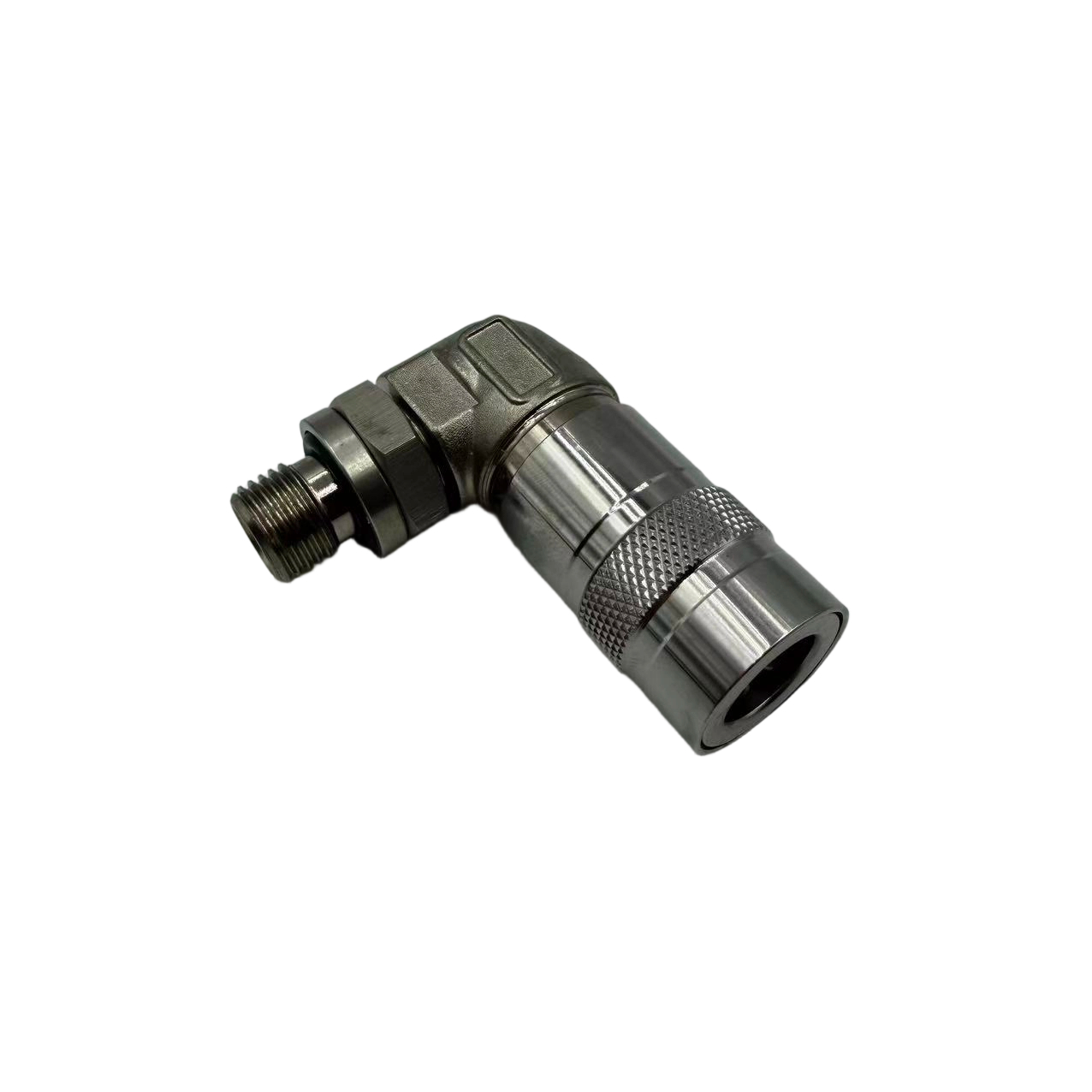

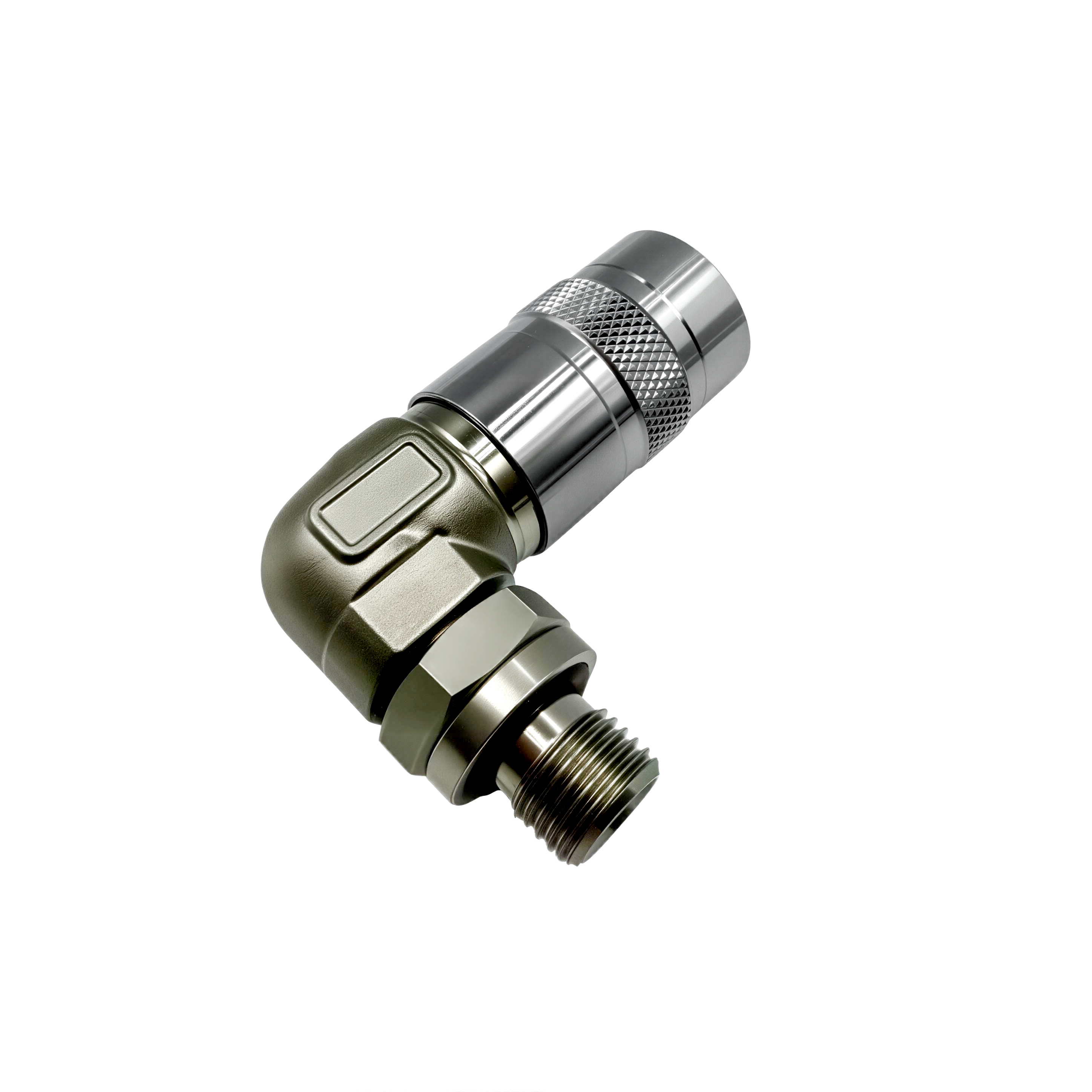

An L-shaped 90-degree elbow fitting made of silver-white metal. The bottom features an external threaded connection (with a hexagonal locking position), while the side end has a quick-connect fitting with a knurled, non-slip texture and a release spring. The corner features a smooth, curved transition (which may include a micro-rotation mechanism or an internal one-way/clutch flow control structure). The entire component features a high-polish machined finish and is designed for use in pneumatic and fluid control points on food and beverage production lines.
Features
1. Air Line Routing and Connection: Provides 90-degree spatial bends, saving space in densely packed production line layouts.
2. Quick-Connect and Clutch Protection: Enables rapid assembly and disassembly of air hoses; the internal clutch/one-way structure cushions sudden air pressure surges, prevents hose kinking, and functions as a micro-rotation flexible joint.
3. Sealing and Limit Stops: The threaded end provides a stable airtight seal, while the quick-connect end’s clamping jaws ensure the hose stays securely attached yet can be easily released.
Features
1. The metal housing offers high strength, shock resistance, and anti-loosening properties; knurled and hexagonal surfaces accommodate both tool tightening and manual adjustment (specific material grades are subject to official specifications).
2. Thread precision, quick-connect retaining ring spring force, knurling friction, and angular concentricity directly determine airtightness, insertion/removal feel, and overall service life.
3. This component is subject to frequent insertion/removal and is prone to damage from vibration, making it a component requiring regular inspection: prolonged exposure to air pressure pulsations and cleaning can lead to thread seal failure and air leaks, loosening of the quick-connect retaining spring causing the hose to detach, knurling wear and slippage, fluid accumulation and corrosion at the rotation angle, or jamming of the internal valve core or clutch components.
Application Scenarios
Pneumatic control points for Krones filling valve assemblies; cylinder circuits for lifting and clamping on capping heads; grippers for bottle transfer at the star wheel of bottle-washing carousels; and directional control cylinders or probe positioning and purging points on conveyor tracks.
Typically installed in tight corners, these components connect PU/nylon air tubing to a metal threaded base and, in conjunction with a front sleeve, spring, and bottle-clamping mechanism, enable precise pneumatic response.
Krones is a registered trademark. Our Clutch is a compatible replacement part and not manufactured or endorsed by Krones. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
