Our products are not OEM, they are only compatible parts
XGY-0904197398
XGY-0904197398
| Quantity: | |
|---|---|

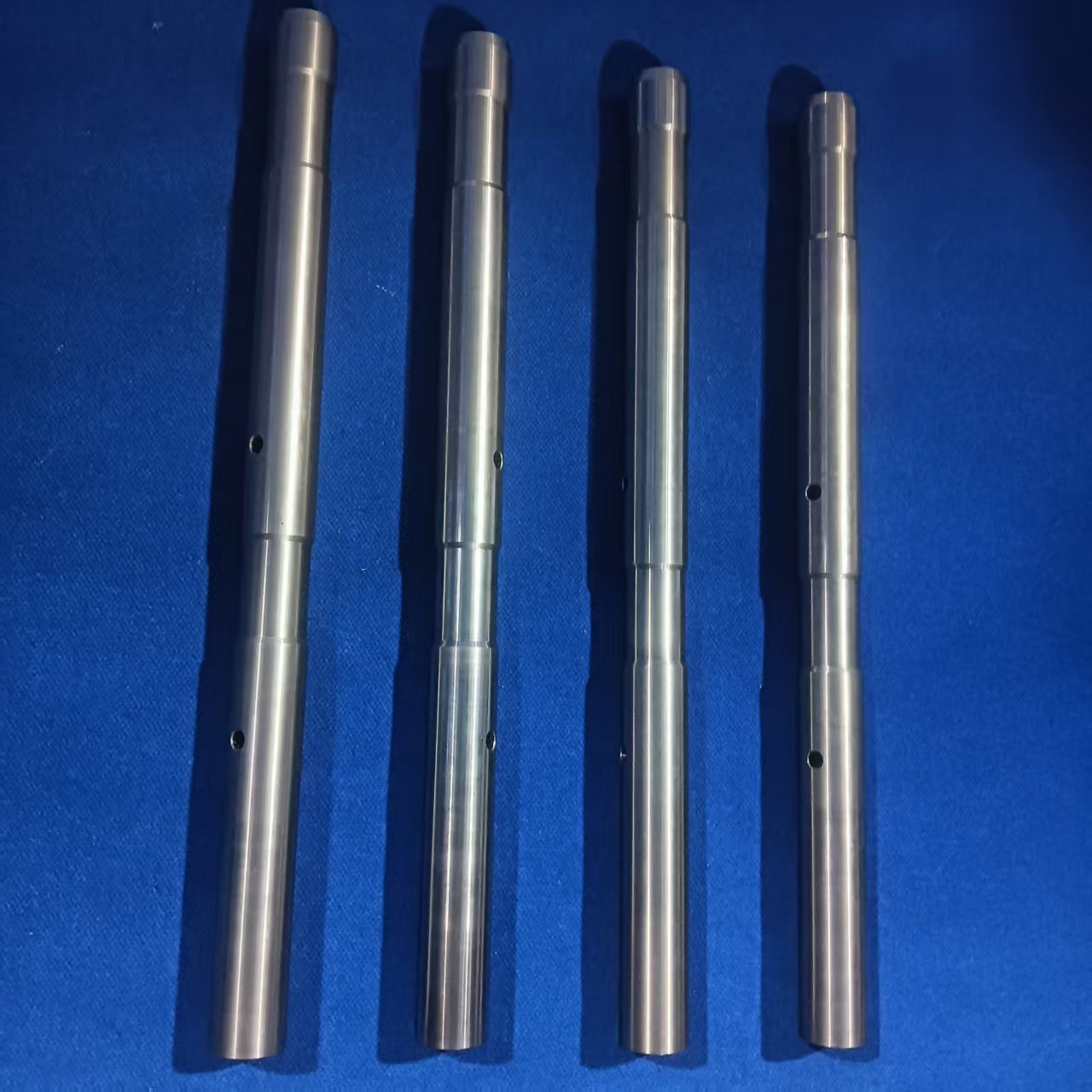

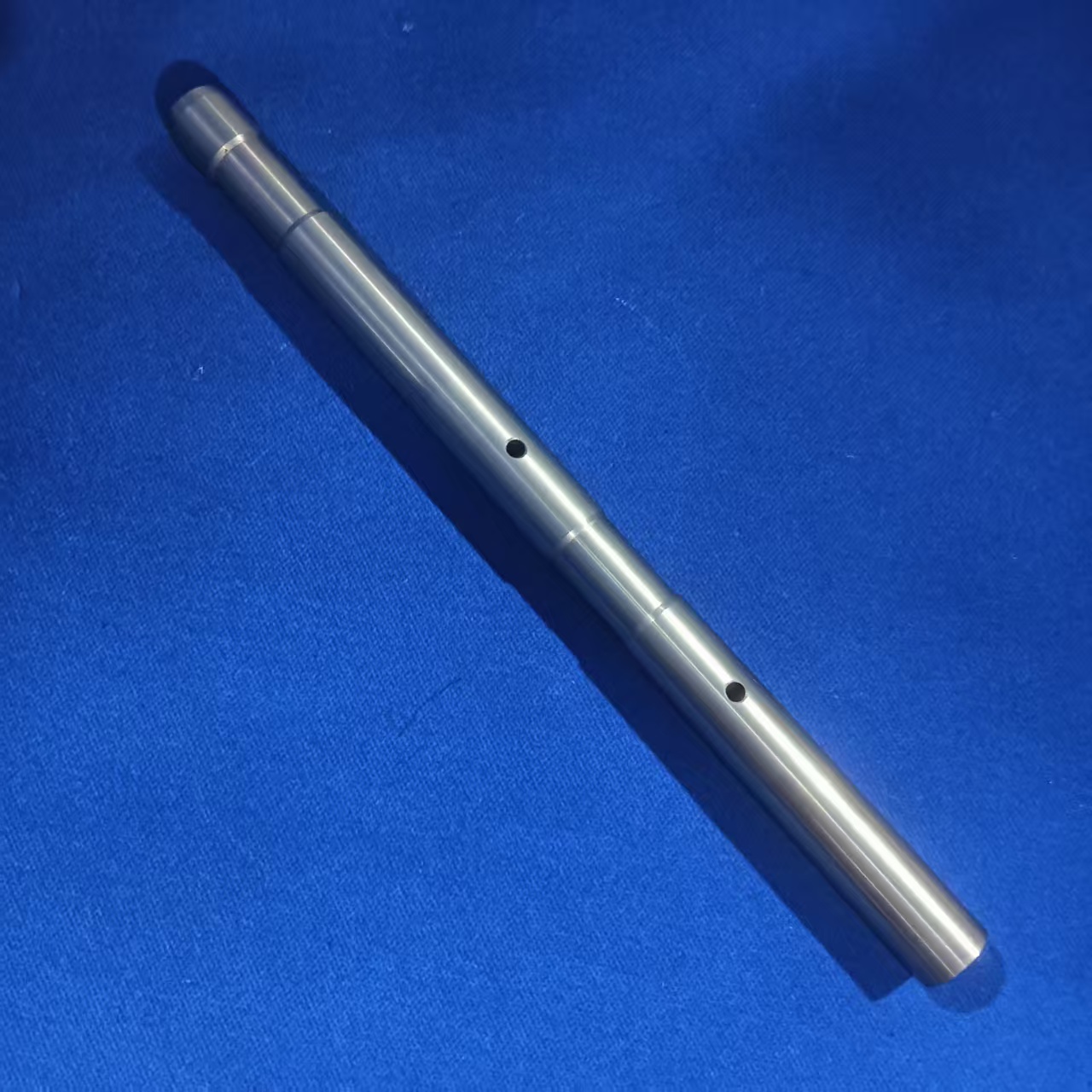

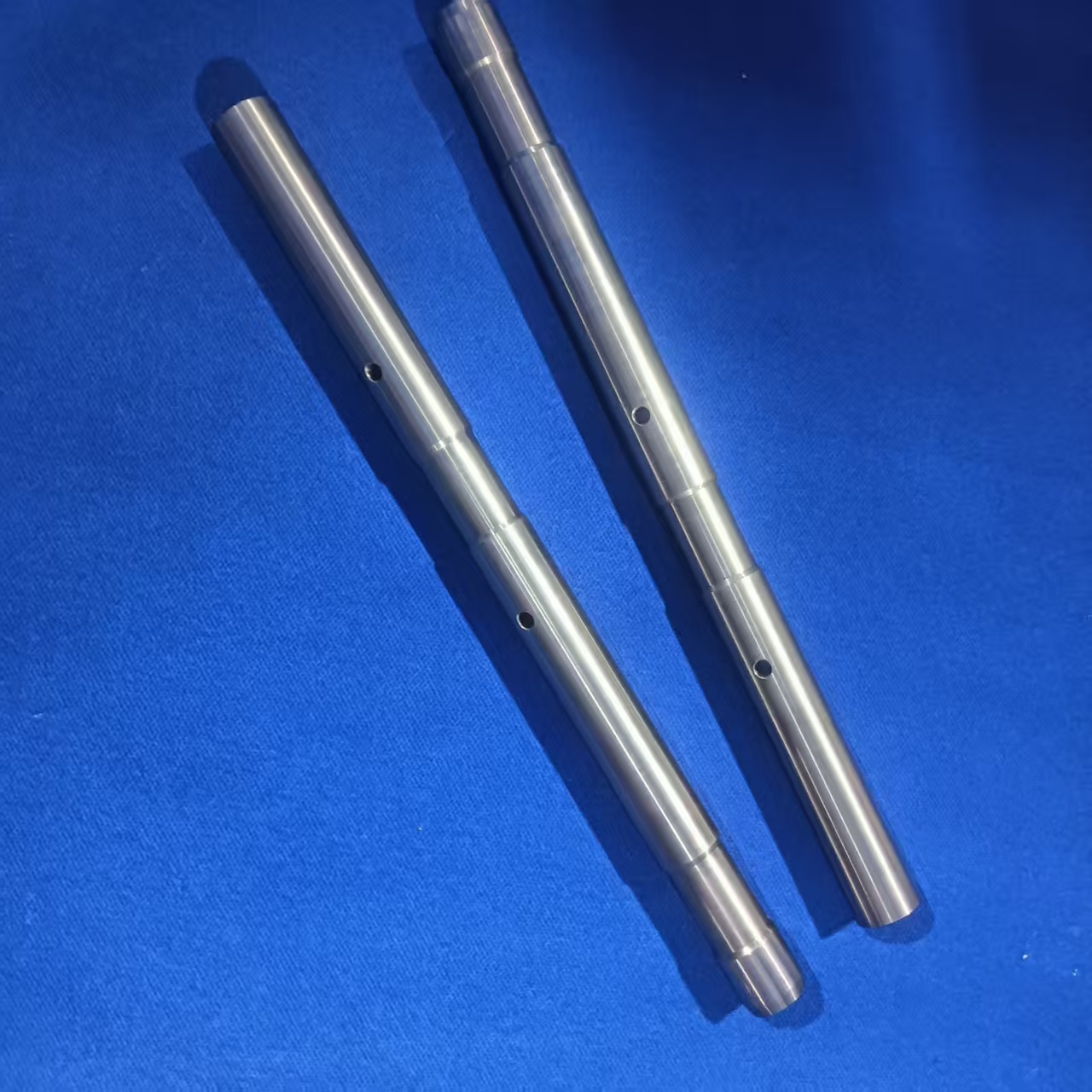

Stainless steel shaft, Part Number: 0904197398. Suitable for use as spare parts in Krones machines, typically serving as rotating spindles, swing pins, guide posts, or internal link rods to connect and drive various clamping and guiding components.
Our products are not OEM, they are only compatible parts.
Product Description
These precision-machined metal shafts feature high rigidity, high-pressure resistance, corrosion resistance, and excellent wear resistance, making them suitable for the high-speed, high-frequency operation and wet-area CIP cleaning environments of beverage and food packaging production lines.
The shaft body is designed with radial through-holes, which are typically used to insert pins or screws for axial positioning, or to serve as lubrication, venting, or hydraulic passages, as well as sensor mounting points.
Applications
1. Krones filling valve lifting mechanisms, capping head spindles, bottle washing turntable drive shafts, star wheel indexing units, conveyor guide rail guide shafts, and labeling machine wheel assemblies or cylinder/cam follower joints.
2. Commonly used as rotating spindles, sliding guide posts, pins, or central support components in composite mechanisms, working in conjunction with bushings and retaining rings to achieve precise positioning and motion transmission.
3. Specific installation levels, mating bore diameters, force directions, and radial bore functions must be verified against the assembly drawings and parts lists for the specific machine model.
Functions
1. Power Transmission and Load Bearing: Transmits torque or supports rotating/reciprocating components, ensuring concentricity and smooth operation of the mechanism.
2. Guidance and Positioning: Provides precise linear motion paths and axial limit references for sliders, clamps, or buffers.
3. Integration and Interconnection: Small side holes can serve multiple purposes, including fastening and anti-loosening, lubrication, airflow channels, or triggering workstation detection.
Features
1. Stainless steel and high-strength steel materials combine toughness with wear resistance, making them suitable for high-frequency reciprocating, rotating, or compression-loaded micro-punching applications (specific material grades and surface treatments are subject to official specifications).
2. Tolerances for outer diameter, straightness, radial hole positional accuracy, and surface roughness directly determine assembly smoothness, sealing performance, and wear life.
3. As critical motion components, prolonged stress and friction can lead to scoring on journal surfaces, wear on bore edges, bending deformation, corrosion, or loose fits, which in turn cause mechanical vibration and reduced precision.
*Replacement parts are not made by the original manufacturer. KRONES®, SIDEL®, KHS®, SACMI®, AROL® SIG®, SIPA®, TECH-LONG®, etc. These SPARPAE RTS are replacement parts for OEM parts, mainly made in China and sold all over the world.
Krones is a registered trademark. Our Stainless steel shaft is a compatible replacement part and not manufactured or endorsed by Krones.
