Product Description

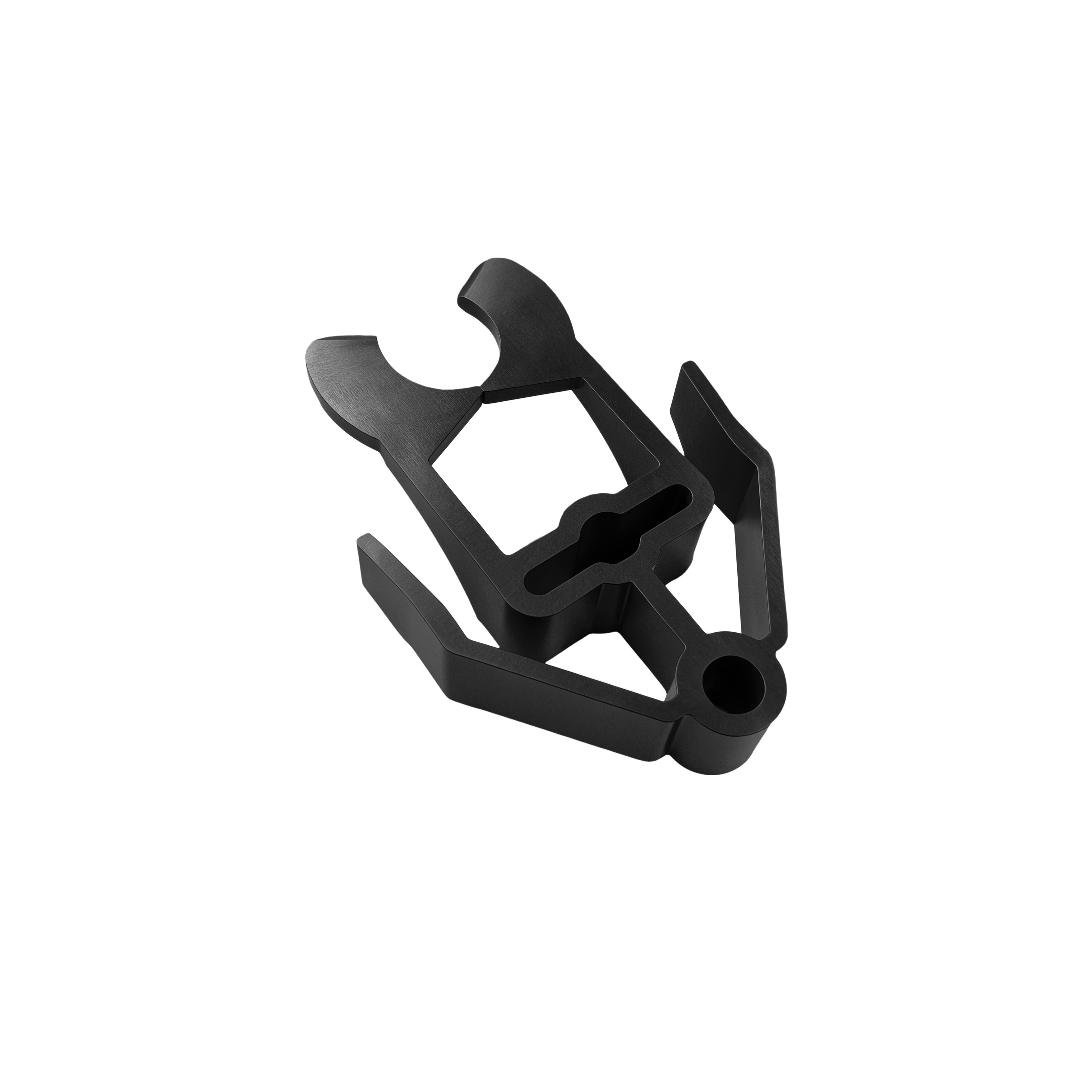

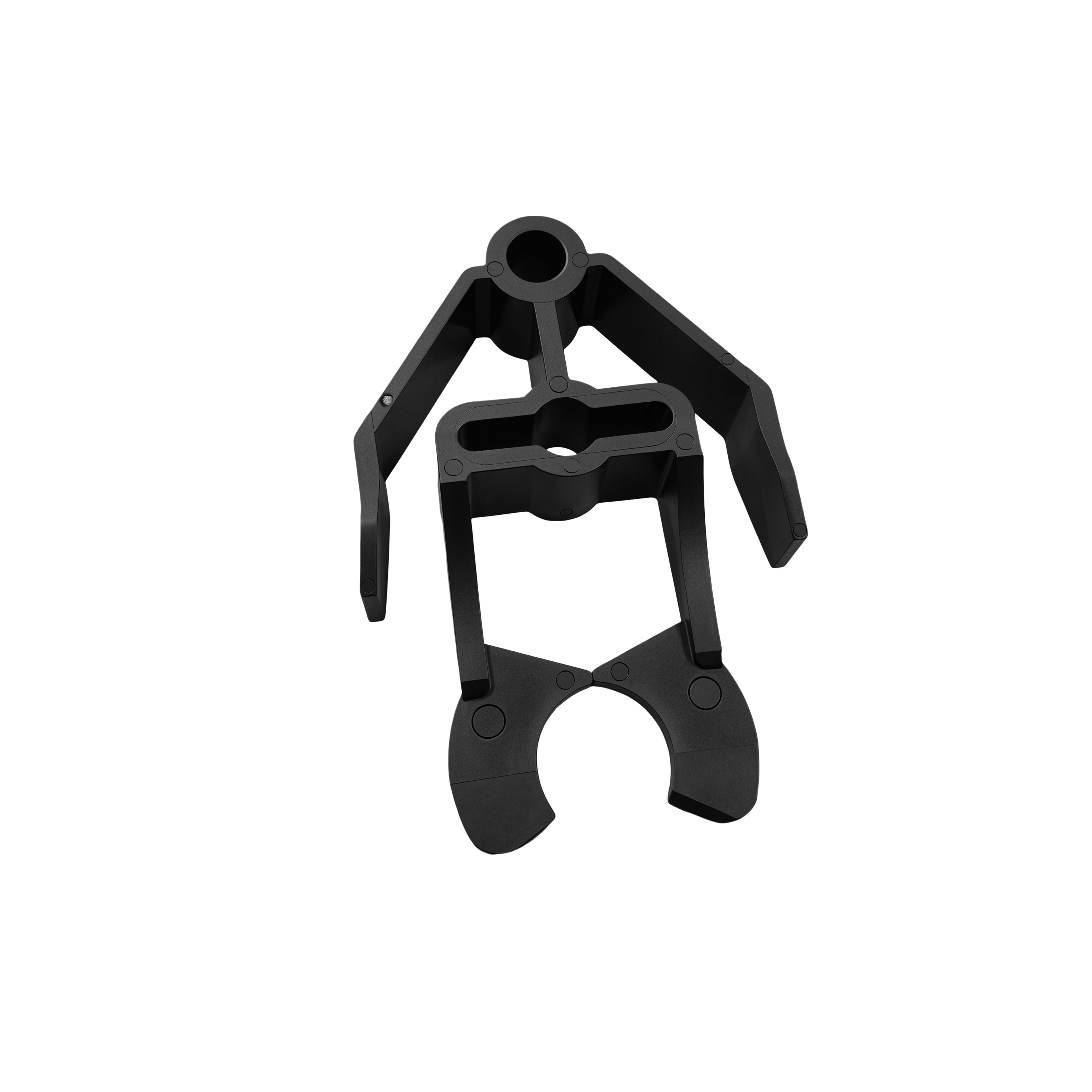

Black plastic molded part featuring an overall lightweight, open-frame structure.
The upper section has circular pin holes/hinge holes for mounting on a swing arm or hanging shaft, allowing rotation or suspension in conjunction with a pin or bushing.
The middle section features reinforcing ribs and a frame-style connection structure, with outward-extending/guiding arm-shaped contours on both sides.
The lower section features a semi-circular or fork-shaped clamping structure designed to encircle or support the bottle mouth or neck area.
The surface is finished in matte black engineering plastic. The structure incorporates reinforcing ribs, snap-fit/positioning protrusions, and material-reduction cutouts, all designed to reduce weight, minimize stress, and withstand frequent opening and closing cycles.
Applications
Commonly found in bottle conveying and handling stations within KHS bottling line equipment, such as:
1. Bottle clamping or temporary holding positions in bottle washing, inverting, and turning mechanisms;
2. Bottle clamps or bottle support assemblies near filling stations or transfer star wheels/chain conveyors;
3. Mechanisms used to grip the bottle neck or stabilize the bottle body at stations such as labeling, inspection, and conveyor direction-changing stations;
4. Specifically, these are mostly replaceable plastic gripping fingers or gripping bodies on “gripper/bottle holder” assemblies, which work in conjunction with metal pins, bushings, springs, or connecting rods.
Functions
1. Clamps and supports bottles, stabilizing the neck or body to prevent shaking or dropping during conveying, flipping, lifting, or turning.
2. Acts as part of a suspended or swinging gripper to transfer bottles in conjunction with the equipment’s rotational or linear motion.
3. Works in conjunction with pins and bushings to perform opening, closing, or swinging motions.
4. Maintains relative positioning of the bottle mouth area during pre- and post-cleaning and filling stages to ensure precision in subsequent processes.
5. The plastic material reduces the risk of scratching the bottle surface and minimizes noise and wear caused by metal-to-metal contact.
