XGY-50383983
XGY-50383983
| Quantity: | |
|---|---|
KHS filling machine spare parts ,KHS spare part online,KHS Bottle Blowing Machine,KHS spare parts catalog,KHS shop,KHS spare parts catalogue pdf,KHS filling machine manual pdf,KHS machine
Our products are not OEM, they are only compatible parts.
Product Description

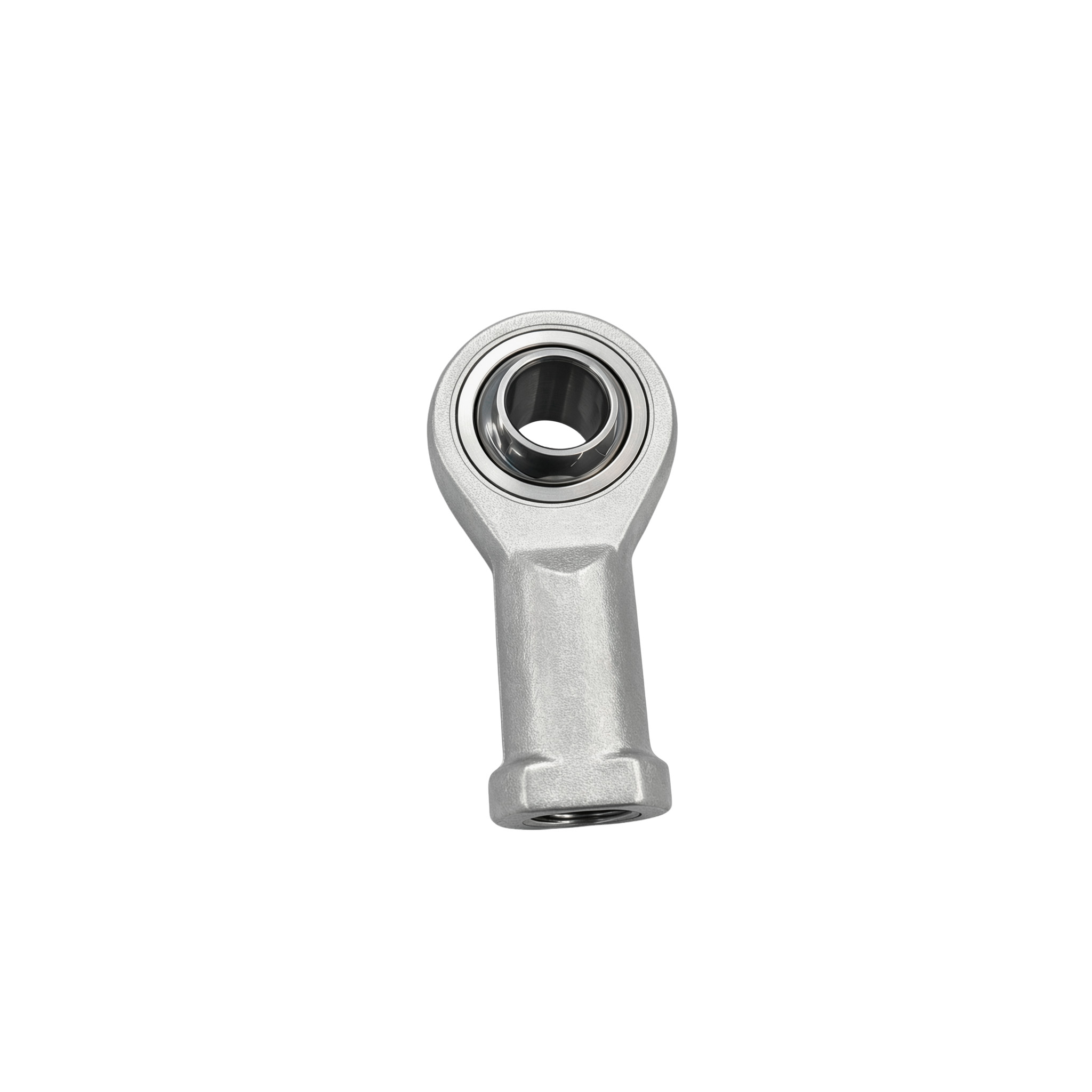

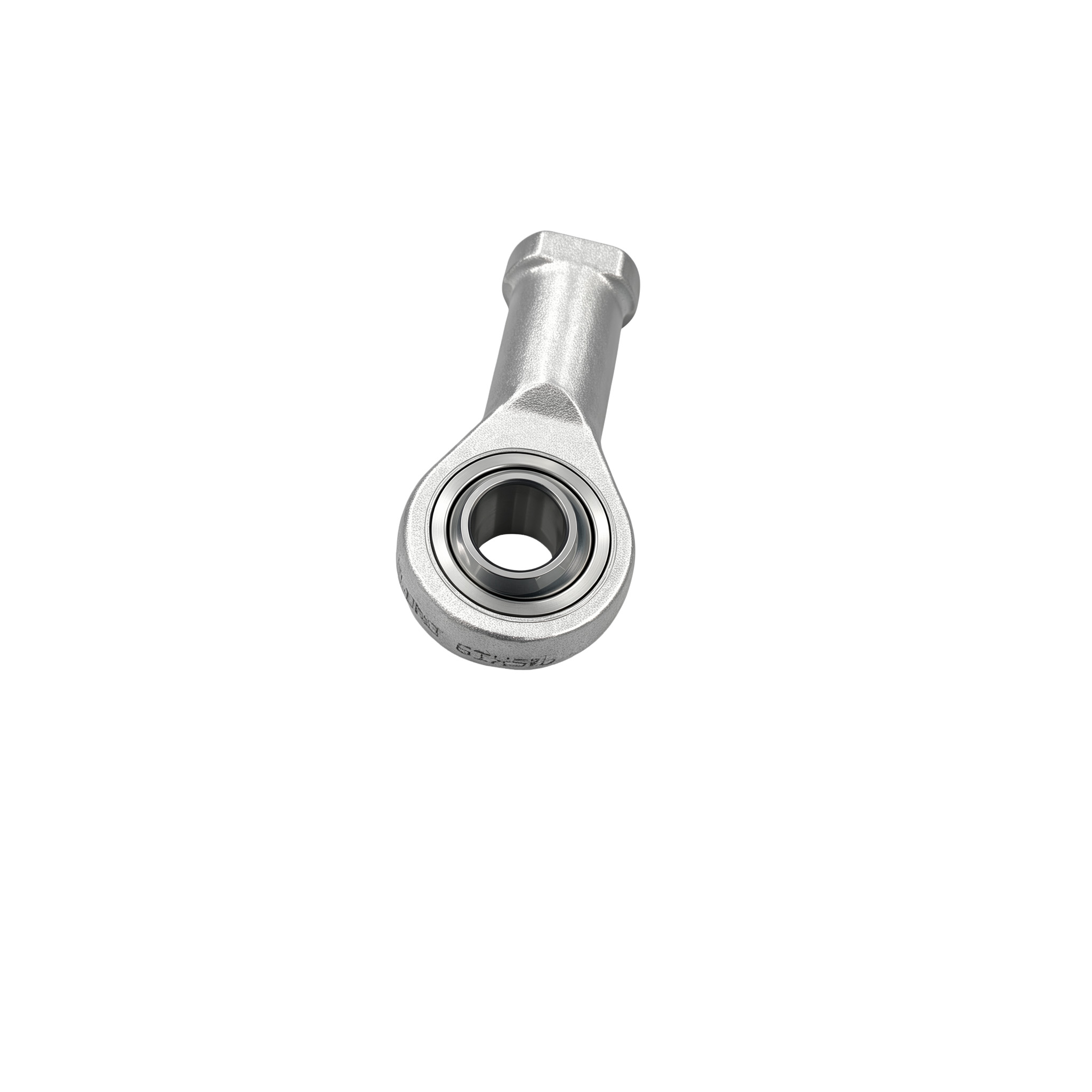

Overall Structure: The part is a precision silver-white metal component. One end features a circular “fish-eye/earring”-shaped head with a spherical sliding bearing press-fitted inside; the other end consists of a cylindrical connecting shank/pin socket, with a visible step, internal bore, or external interface at the tip for locking or connection (the illustration shows a cylindrical end with a shoulder, which may be used in conjunction with a pin, cylinder rod, or connecting rod).
Surface Finish: The surface exhibits a polished finish from turning and grinding, with precision mating surfaces visible on the outer and inner rings of the bearing; the overall appearance is that of stainless steel or zinc- or nickel-plated alloy steel, meeting the hygiene and rust-proofing requirements for food and beverage equipment.
Applications
KHS components are commonly found in filling, capping, labeling, conveying, bottle clamping, lifting, and pneumatic linkage mechanisms. This part is typically used for:
Connecting the ends of cylinders or actuator links;
Pivot points in filling valves, lifting/swing arms, guide rods, or lever mechanisms;
Positions requiring oscillation and self-centering in mechanisms such as labeling, capping, and bottle sorting;
Interlocking/articulated drive areas similar to the previous part “Rotating Arm 94183359,” serving as a movable joint connection.
Functions
1. Articulation and Swivel: Allows the joint mechanism to swing or deflect by a small angle during operation, compensating for installation errors and deviations in the motion path.
2. Radial Load Capacity and Self-Alignment: The internal spherical bearing can withstand radial forces and swivel freely within a certain angle range, preventing the rods from jamming or generating additional bending moments.
3. Connecting Cylinders, Connecting Rods, and Arms: Acting as a “head connector,” it smoothly transmits motion from linear, rotary, or oscillating mechanisms to the working components.
4. Reduced Wear: Compared to rigid pin connections, the spherical bearing design significantly reduces friction and wear, making it suitable for the frequent movements of high-speed filling
