Our products are not OEM, they are only compatible parts
XGY-95340355
XGY-95340355
| Quantity: | |
|---|---|
KHS filling machine spare parts ,KHS spare part online,KHS Bottle Blowing Machine,KHS spare parts catalog,KHS shop,KHS spare parts catalogue pdf,KHS filling machine manual pdf,KHS machine
Our products are not OEM, they are only compatible parts.
Product Description

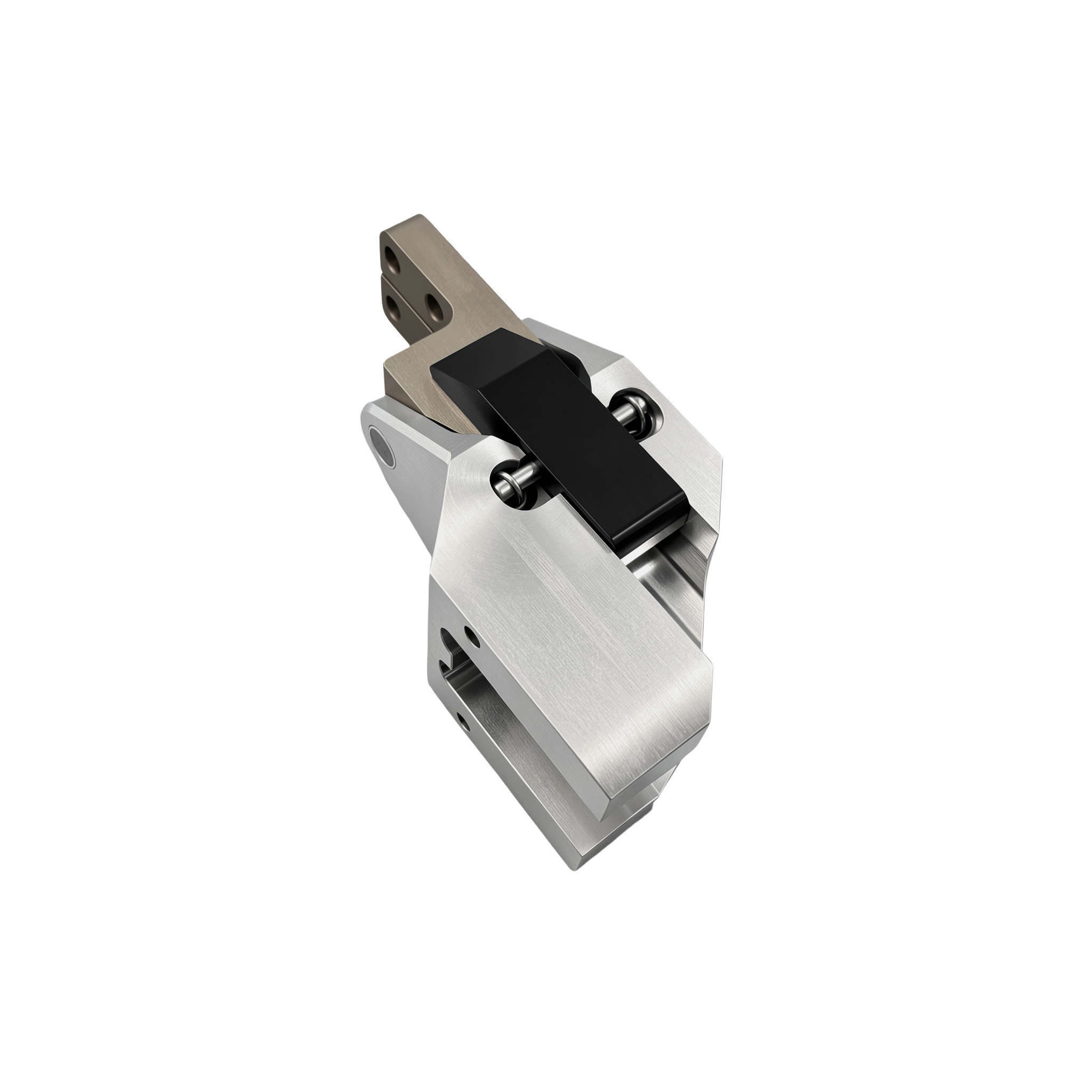

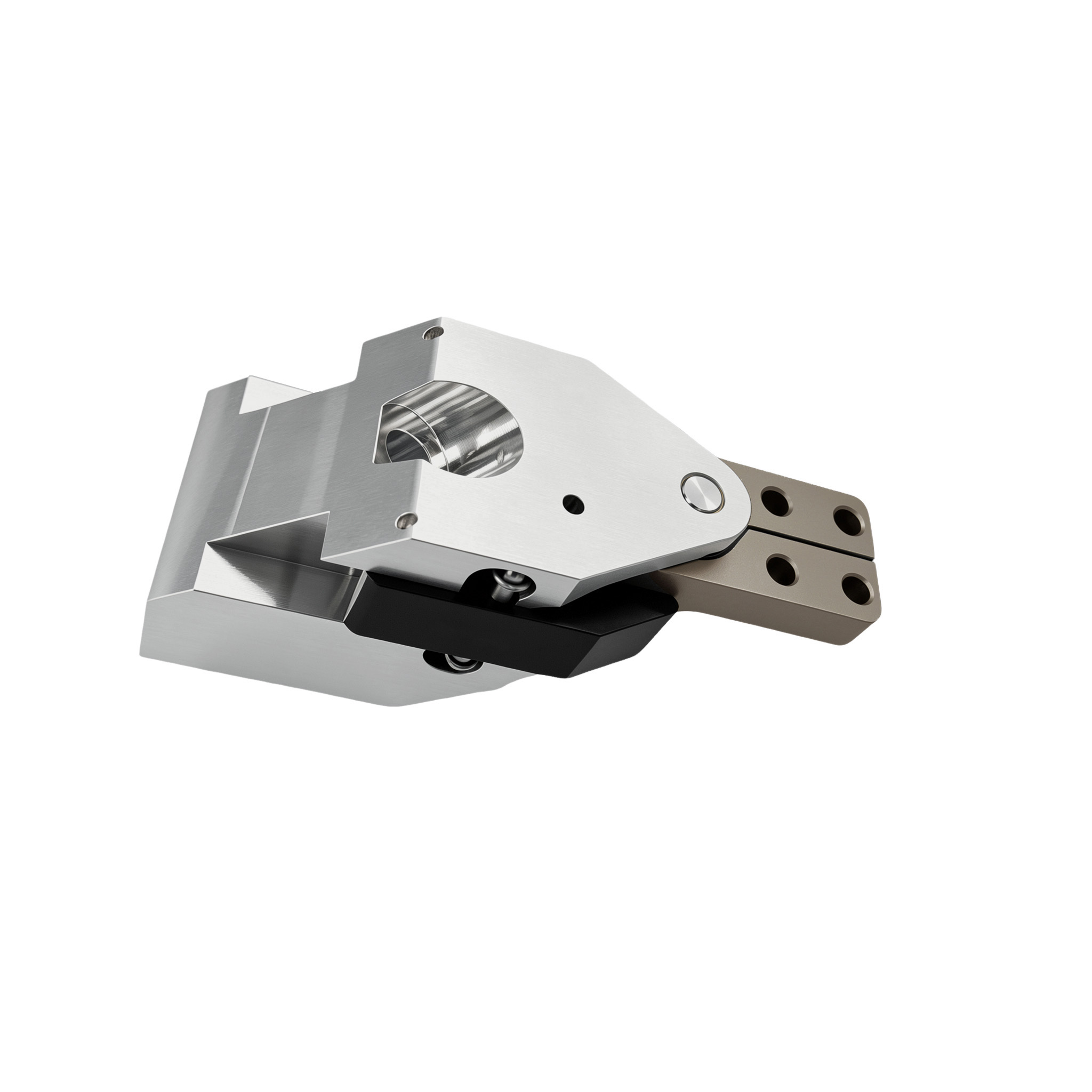

Overall Structure: Precision-machined metal clamping module. The left side features a mounting/drive base with a large-diameter circular hole and positioning/fastening mechanisms for attachment to swing arms, rotary shafts, cylinder connecting rods, or equipment brackets; the right side features an extendable clamping finger/arm with multiple sets of through-holes to reduce weight, accommodate clamping pads or pins, or adapt to different clamping interfaces.
Surface and Materials: The main body is precision-machined stainless steel or aluminum alloy/steel, with a brushed or milled finish. Black components may include guide blocks, wear-resistant sliders, or drive/limit components. Pins, round holes, and mating surfaces are machined to high precision, ensuring overall structural rigidity.
Motion Mechanism: The image shows a lever/articulated clamping head that opens, closes, or swings to clamp via a pivot pin. The clamping fingers on the right can work in conjunction with cams, cylinders, linkages, or spring/drive mechanisms to perform the clamping action.
Applications
In KHS filling and packaging lines for beverages, beer, and liquid foods, these are commonly used for:
Bottle/can/case handling and positioning mechanisms;
Gripping/clamping points on filling machines, labeling machines, capping machines, packaging machines, or conveyor transfer stations;
Container holding devices in star wheels, lifting/lowering mechanisms, and flipping/tipping or buffering sections;
As end-of-arm gripping actuators in conjunction with rotary arms, articulated joints, spring clamps, and similar components.
Specific compatible models and workstations are subject to the official KHS spare parts drawings.
Functions
1. Gripping/Clamping Containers or Workpieces: Uses gripping fingers to position and secure bottles, cans, packaged items, or equipment fixtures.
2. Transfer Motion and Posture Maintenance: Stably maintains the workpiece’s position during high-speed conveyance or at rotating stations, preventing displacement, tipping, or rotation.
3. Opening and Closing Operations: Can be controlled by pneumatic systems, cams, linkages, or mechanical stops to open or close at specified positions.
4. Product protection: The gripping surfaces and hole patterns are designed to accommodate cushioning pads or interchangeable gripping fingers, reducing scratches and indentations on bottle bodies, labels, and sealing areas.
5. Easy changeover and maintenance: The modular design allows for inspection and replacement of gripping fingers, wear parts, and fasteners, minimizing downtime.
Why Choose Us
Precision Manufacturing: Xinguangyuan uses advanced production technology to ensure each liner meets strict dimensional and quality standards.
10+ Years of Experience: Our expertise in the PET and beverage equipment industry ensures deep understanding of Sidel machine requirements.
Flexible Services: We offer OEM services and customization based on drawings or samples, catering to unique machine configurations.
Efficient Shipping: Global shipping via DHL/SF ensures fast delivery, reducing downtime for your production line.
Transparent Terms: Convenient T/T payment options and clear communication ensure a smooth purchasing experience.
*Replacement parts are not manufactured by the original equipment manufacturer. These SPARPAE RTS parts for brands such as KRONES®, SIDEL®, KHS®, SACMI®, AROL®, SIG®, SIPA®, and TECH-LONG® are alternatives to original equipment manufacturer parts; they are primarily manufactured in China and sold worldwide. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
