Product Description

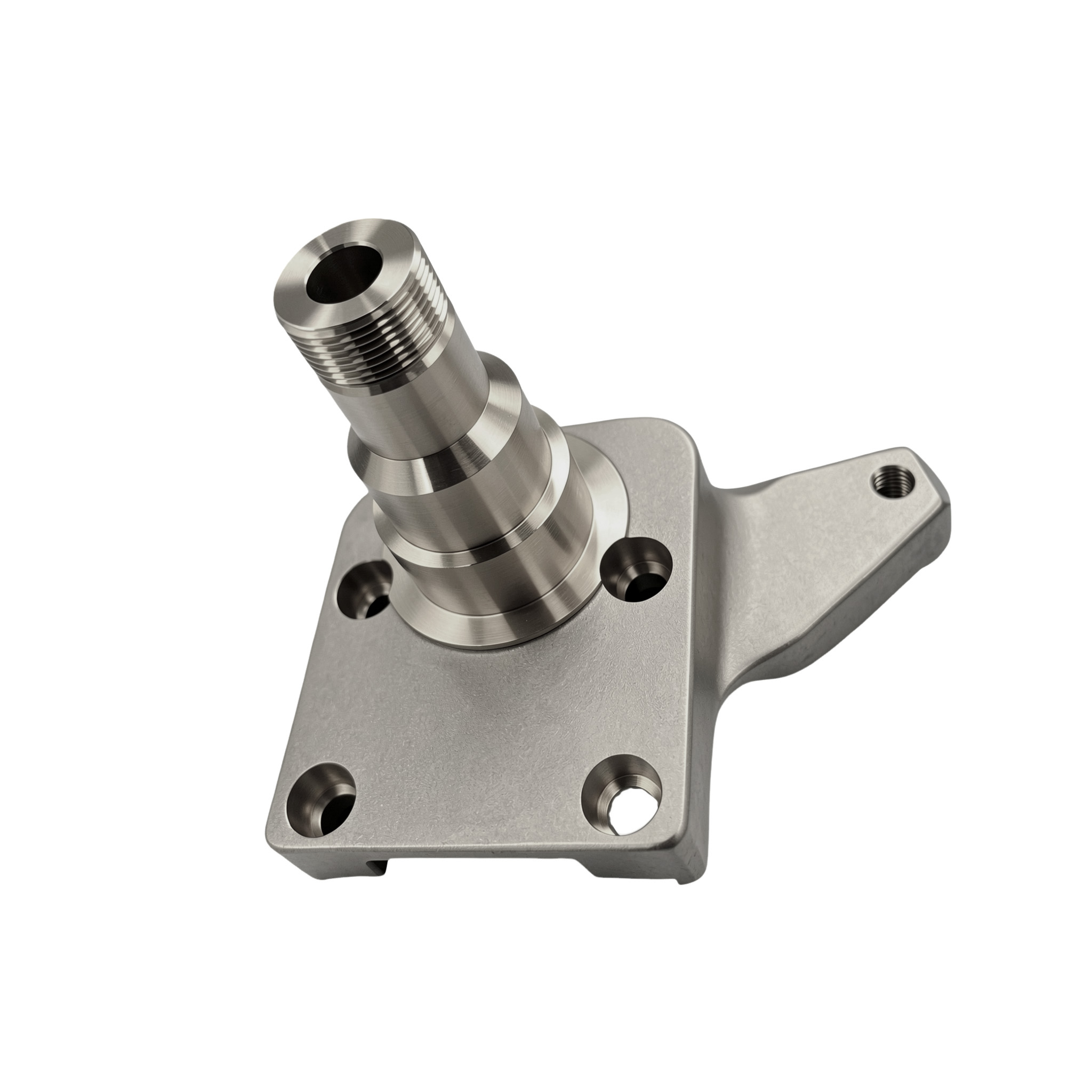

Overall Structure: This part has the typical appearance of a machined component, consisting of an upper mounting flange and a lower stepped shaft/coupling.
Upper Flange: It has an irregular flat shape (resembling a square or trident with notches). The surface has been sandblasted or shot-blasted, resulting in a uniform, matte, gray-black metallic finish (which may have been achieved through surface treatments such as blackening, phosphating, or hard anodizing). The flange surface features multiple countersunk or through holes used to secure the part to a frame or other components with bolts.

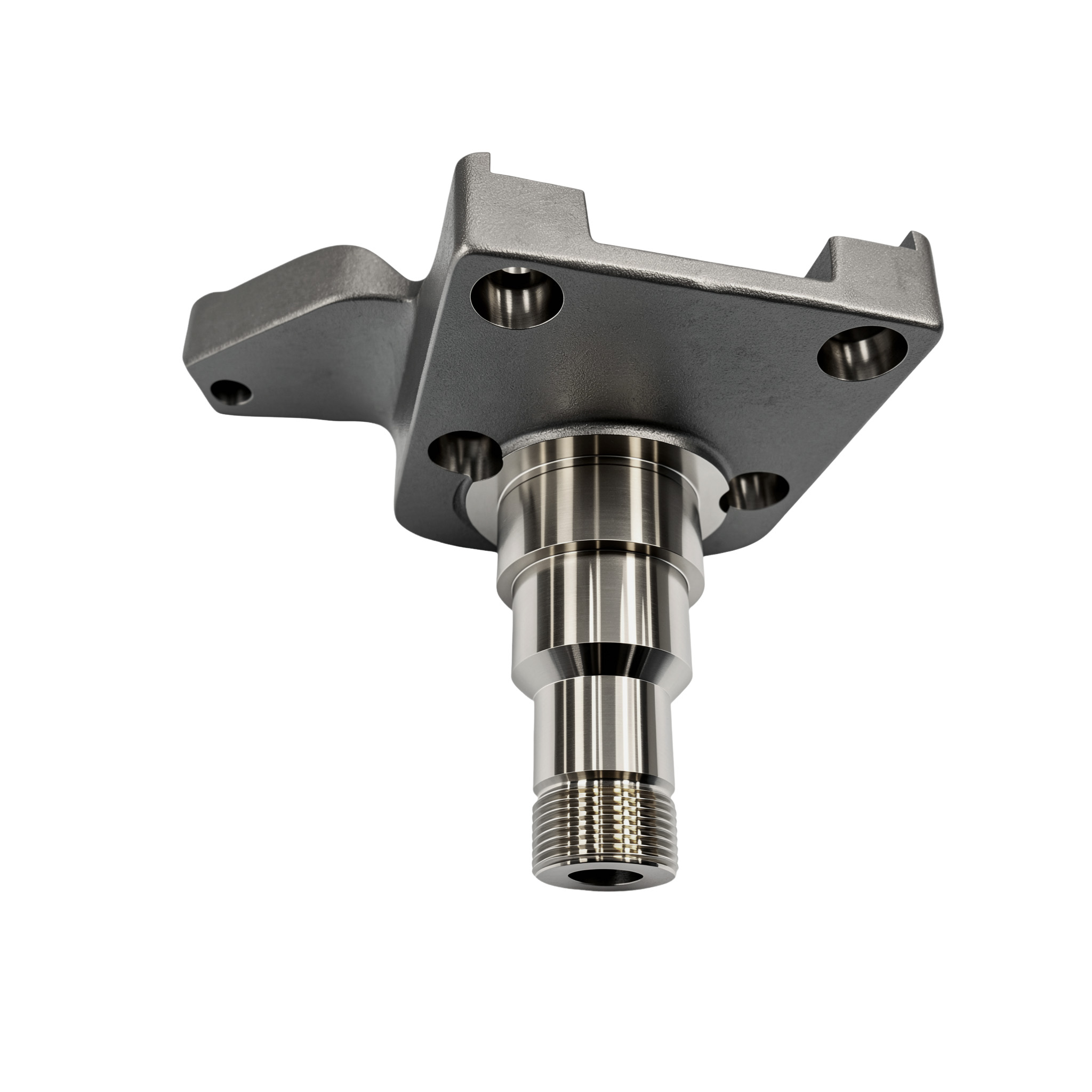

Lower Shaft: A multi-step shaft extends downward from the center of the flange. The section near the flange is a relatively thick, smooth cylindrical segment; the middle section features a chamfer and fine machining marks; and the end is an externally threaded section.
Material and Manufacturing Process: The part exhibits the characteristics of high-precision CNC turning and milling, with a high surface finish. The material is presumed to be high-strength alloy steel or stainless steel to ensure durability under high loads and frequent movement.
Applications
Industry Sectors: Primarily used in food and beverage filling production lines, packaging machinery, or automated logistics conveyor systems.
Specific Workstations: Typically installed on the moving actuators of equipment, such as:
1. The drive link of a filling valve.
2. The rotational pivot point of the label gripping or peeling mechanism on a labeling machine.
3. The torque transmission arm of a capping machine (capping system).
4. The pivot point of a conveyor belt’s turning or sorting mechanism.
Functions
1. Power Transmission and Conversion: Acting as a connecting hub, it transmits linear or rotational motion from a motor or cylinder to the end effector (such as a filling head or gripper), or converts torque into thrust.
2. Support and Positioning: The upper flange structure allows it to be securely mounted on the equipment frame, providing a stable rotational or oscillating pivot point for the moving parts below.
3. Connection and Transition: The stepped shaft and threaded design at the bottom are intended for precise mating with other standard or custom components (such as couplings, bearings, and connecting rods), ensuring accuracy of motion.
Features
1. High Rigidity and Wear Resistance: Since filling and packaging equipment typically requires 24-hour continuous operation, this component must possess high rigidity to resist deformation and be made of wear-resistant materials to extend its service life.
2. High-Precision Fit: Precision machining of the journal and threaded sections ensures low-clearance operation with mating parts, preventing wobbling or jamming during high-speed operation.
3. Corrosion Resistance: Given the food and beverage industry’s stringent hygiene and cleanliness requirements (which often necessitate frequent rinsing), the part’s surface treatment provides excellent rust and corrosion resistance.
4. Modular Design: This standardized swivel arm design facilitates maintenance and replacement, reducing production line downtime and maintenance costs.
Why Choose Us
Precision Manufacturing: Xinguangyuan uses advanced production technology to ensure each liner meets strict dimensional and quality standards.
10+ Years of Experience: Our expertise in the PET and beverage equipment industry ensures deep understanding of Sidel machine requirements.
Flexible Services: We offer OEM services and customization based on drawings or samples, catering to unique machine configurations.
Efficient Shipping: Global shipping via DHL/SF ensures fast delivery, reducing downtime for your production line.
Transparent Terms: Convenient T/T payment options and clear communication ensure a smooth purchasing experience.
