Physical Characteristics

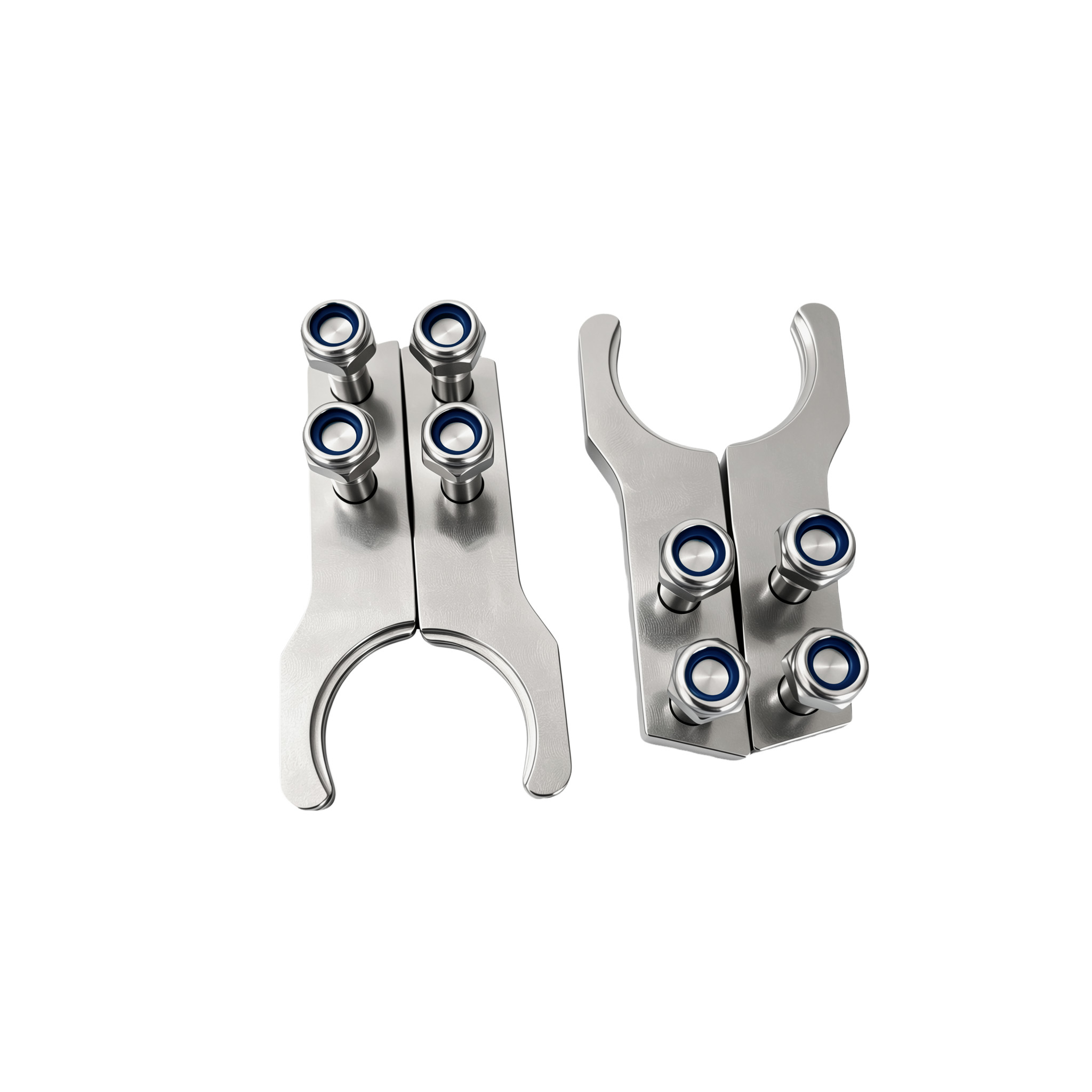

1.Overall Structure: Each set consists of two hinged stainless steel clamping plates joined together to form a U-shaped or arched clamping opening at the bottom; there are 4 sets in total (the figure shows two complete sets of clamps)
2. Material and Surface: Made entirely of food-grade stainless steel (SS304/316) with a mirror-polished surface that is bright, clean, and free of hygiene dead zones
3. Locking Mechanism: Each clamp set is equipped with two nylon-ring lock nuts (DIN 985 type) at the top; the blue nylon rings are clearly visible. The clamps are secured by bolts passing through both halves of the clamp body
4. Clamping Opening: The bottom arched opening is precision-machined; the curved surface conforms to the contour of the workpiece, with smooth, burr-free edges
5. Design: Flat, thin-plate structure; compact design with minimal space requirements
Physical Characteristics
Sanitary Design
Made entirely of stainless steel with a polished surface for easy cleaning, it meets the hygiene requirements of the food and beverage industry and prevents liquid accumulation or hidden dirt in hard-to-reach areas
Reliable Anti-Loosening
Nylon-insert locking nuts securely grip the screw even under high-speed rotation and vibration, preventing the clamping fixture from loosening or shifting
Split-Type Quick-Change
Two-piece design allows for quick assembly and disassembly by simply loosening the nuts. Easy adjustment when changing bottle or can types, reducing changeover time
Stable Clamping
The curved clamping jaws make contact with the surface of the container neck, ensuring even clamping force and preventing container deformation or scratches
Wear-Resistant and Durable
Stainless steel construction offers wear resistance and corrosion resistance, making it suitable for production environments with moisture and corrosive cleaning agents
Precise Alignment
The clamping plates feature high machining precision on their mating surfaces, ensuring excellent coaxiality when assembled and guaranteeing accurate container positioning
Core Functions
1. Container Clamping and Positioning: Installed at the turntable stations of rotary filling machines, this system clamps the neck or rim of bottles or cans to maintain precise positioning during filling, capping, and other processes
2. Neck-Suspended Conveying: Implements a “neck handling” conveying method, where containers travel suspended in the air without contacting the bottle bottom, making it suitable for a wide variety of bottle shapes.
3. Centering and Sealing Assistance: Works in conjunction with the filling valve’s centering bell (or can bell) to ensure precise alignment of the can or bottle opening with the filling valve, enabling a sealed fill.
4. Support for Rapid Changeovers: When switching between production of different container sizes, the clamping plates can be quickly adjusted or replaced by loosening the lock nuts to accommodate containers of varying diameters
5. Vibration Damping and Locking: Under the vibrating conditions of high-speed rotation of the filling machine (typically tens of thousands to over a hundred thousand bottles/cans per hour), the nylon lock nuts ensure that the clamping force does not diminish
What scenarios does it apply to?
KHS Can Filling Lines: Designed to work with Innofill Can DMD/DVD/C series fillers to grip the can openings for isobaric filling
1. KHS PET Bottle Filling Lines: Neck-gripping conveyor systems for Innofill PET NV/DRV series equipment, used for filling PET bottles with water, beverages, cooking oil, and other products
2. KHS Glass Bottle Filling Line: Bottle clamping assemblies for Innofill Glass series filling machines used for beer and carbonated beverage glass bottles
3. Rotary Filling and Capping Combination Machines: In monoblock filling and capping machines, containers are clamped throughout the entire process from filling to capping
4. Applicable container specifications: Grips of varying radii can be customized according to bottle or can mouth diameters, covering a wide range of capacities from 200 ml to 1.5 L
5.Industry applications: Rotary filling production lines for beer, carbonated beverages, fruit juices, drinking water, condiments, personal care products, and more
