Our products are not OEM, they are only compatible parts.
Product Description
Color: Beige (typical natural color of iglidur J)

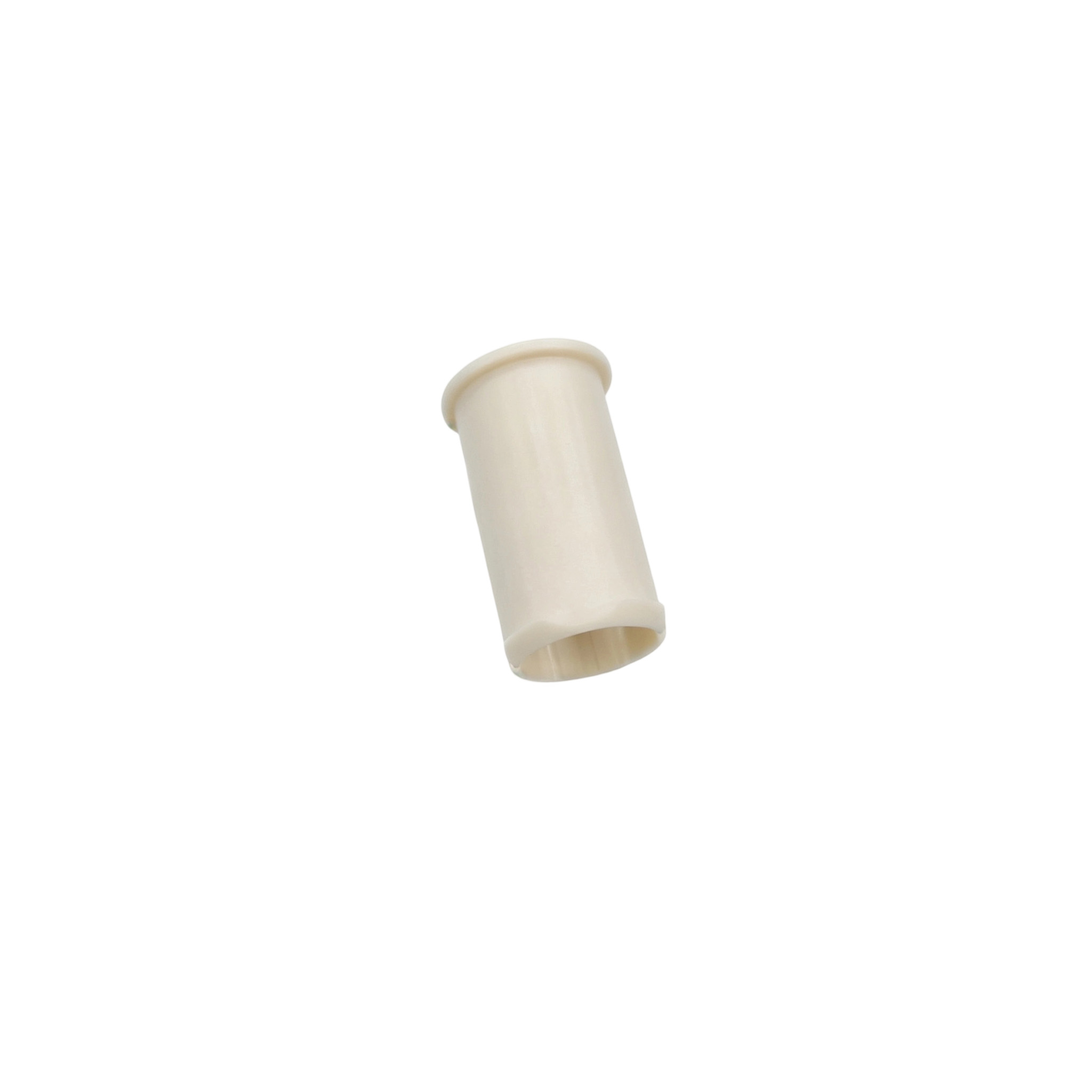

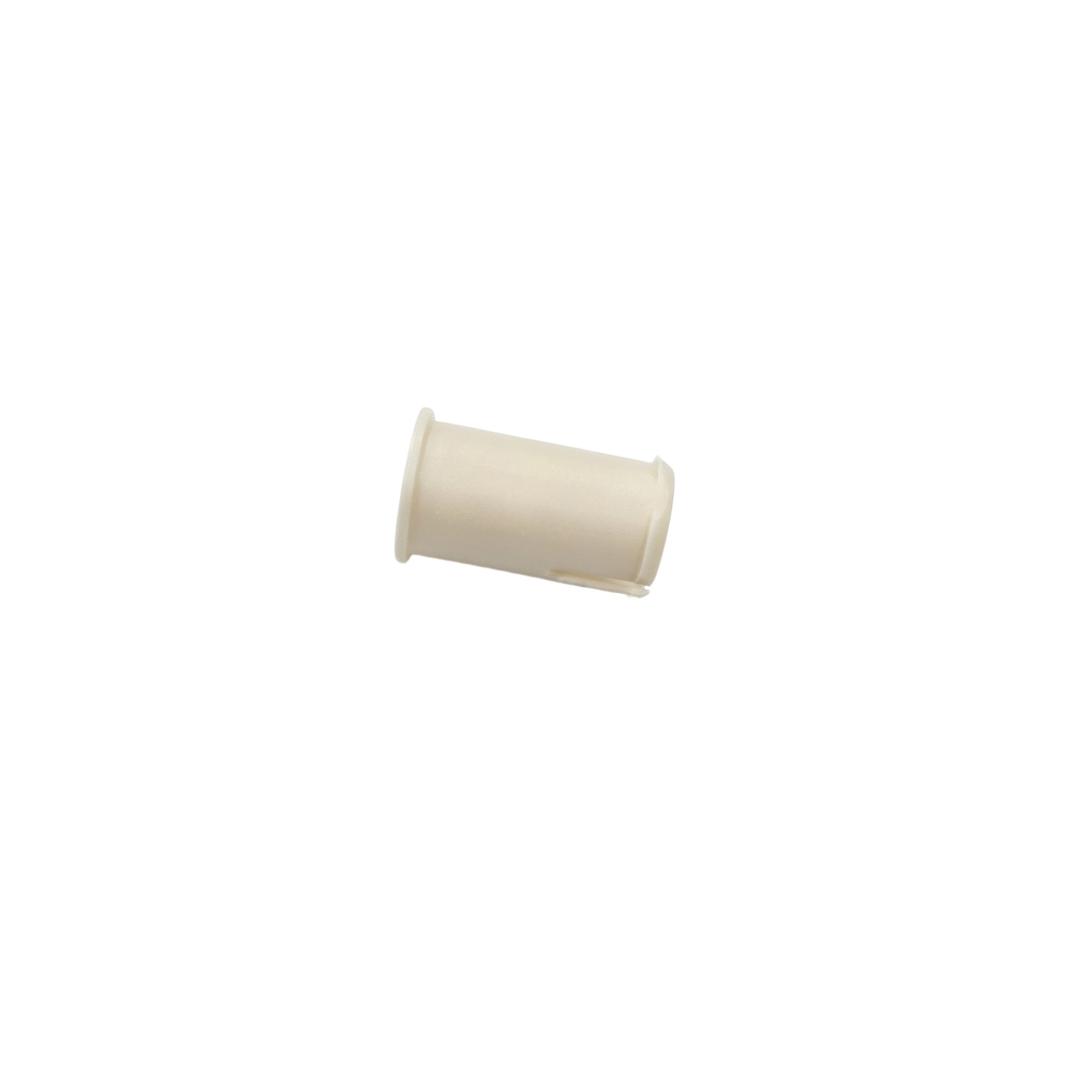

Shape: Cylindrical, with a flange on one end and a sliding bore in the center
Applications
Flange bushings are primarily used in the following applications:
1. Spring guidance for bottle holders (most common)
Location: Bottle holder/bottle support clamping mechanism on the rotating turret of a KHS filling machine
Function: Provides sliding guidance for the extension and retraction of the bottle holder’s clamping spring, ensuring smooth opening and closing of the bottle holder and stable clamping force
Background: The igus website explicitly mentions “Various iglidur J plain bearings for guiding the springs” for use in KHS bottle holders, and they must be installed without lubrication to prevent product contamination
2. Cam Roller Bearings
Location: On the roller shafts of the bottle tray lifting cam mechanism
Function: Acts as a rotating sliding bearing for the cam roller, ensuring smooth rolling along the cam track and converting the cam’s curved motion into the vertical movement of the bottle tray
Advantage: iglidur J flanged bushings ensure clean, uniform rolling of the plastic cam roller along the cam track
3. Clamp Star Clamping Element Bearings
Location: On the rotating shafts of the clamping elements for the bottle inlet/outlet star wheels and the clamp star
Function: Provides sliding support for the swinging and rotating motion of the star wheel clamping claws, ensuring flexible operation of the clamping elements
4. Bottle/Can Holder Lifting Guide Bushings
Location: On the guide rods of the bottle/can holder lifting mechanism
Function: Provides low-friction guidance for the linear reciprocating motion of the lifting guide rods, ensuring vertical movement and precise centering of the bottle/can holders
5. Filling Valve Auxiliary Guides
Location: Sliding points on auxiliary mechanisms of the filling valve assembly (e.g., centering hood lifting, valve stem guidance)
Function: Provides lubrication-free, sanitary-grade sliding guidance
Core Features
1. Lubrication-free sliding guidance: Provides low-friction, maintenance-free sliding support for rotating shafts or linear guide rods, preventing lubricant contamination of beverages at the source.
2. Axial positioning: The flanged design ensures that, once the bushing is pressed into the mounting hole, the flange edges fit snugly against the mounting surface, preventing the bushing from shifting axially or coming loose during movement.
3. Wear Protection: As a wear part, the bushing withstands friction and wear, protecting the more expensive stainless steel or aluminum shafts and mounting seats from wear.
4. Vibration Damping and Noise Reduction: The damping properties of the plastic material absorb motion vibrations and reduce equipment operating noise.
5. Corrosion Resistance and Hygiene: Resists rust and corrosion in humid filling environments with frequent use of cleaning agents, meeting food hygiene requirements.
6. Low-Cost and Easy Replacement: As standard wear parts, they are inexpensive and feature a press-fit installation, making replacement convenient
