Our products are not OEM, they are only compatible parts
XGY-94181338
XGY-94181338
| Quantity: | |
|---|---|
KHS filling machine spare parts ,KHS spare part online,KHS Bottle Blowing Machine,KHS spare parts catalog,KHS shop,KHS spare parts catalogue pdf,KHS filling machine manual pdf,KHS machine
Our products are not OEM, they are only compatible parts.
Physical Characteristics

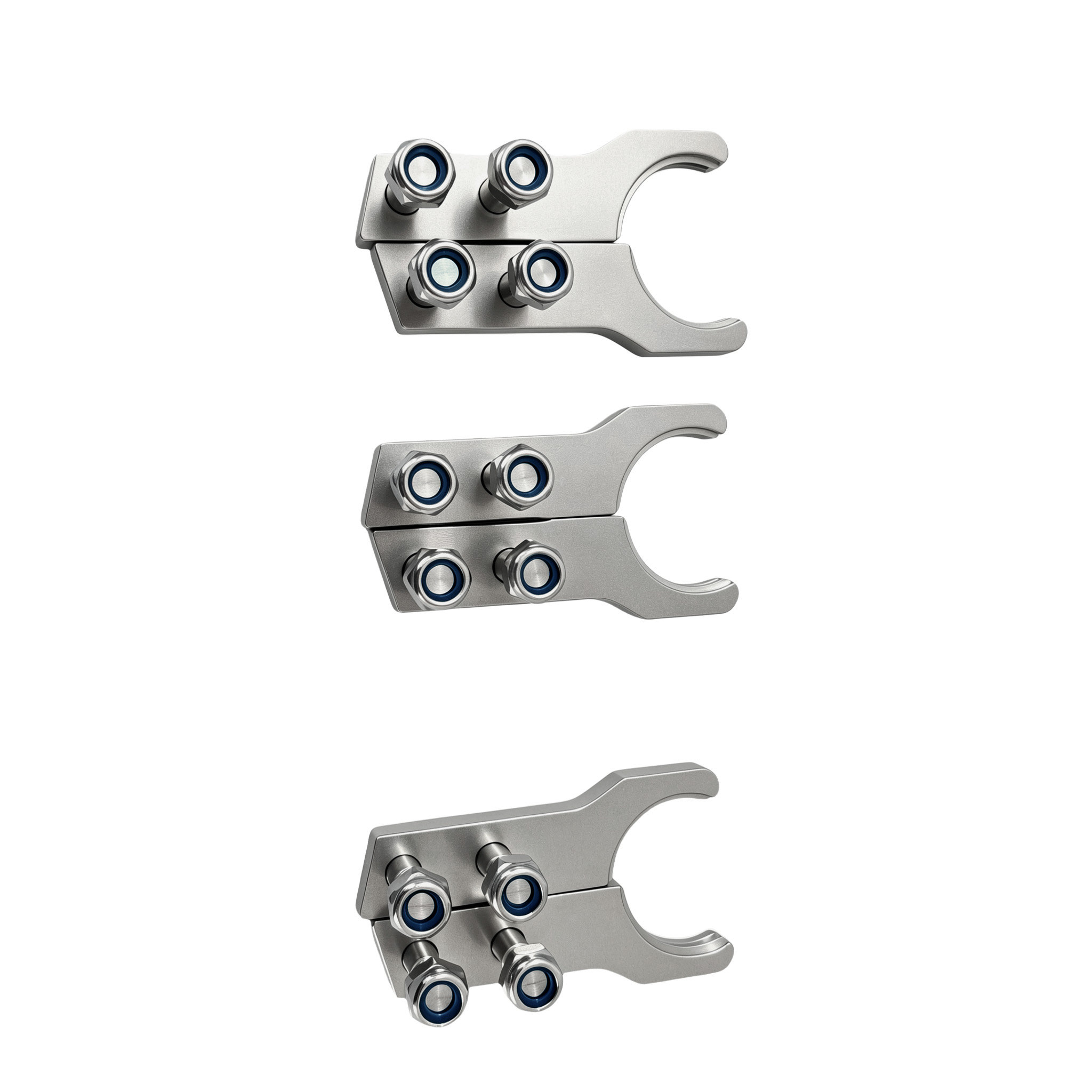

1.Overall Shape: Single-piece L-shaped / hook-shaped stainless steel plate; one end features a flat mounting surface, while the other end is bent downward to form a curved hook.
2.Material and Finish: Food-grade stainless steel (SS304/316), machined as a single piece; brushed or mirror-polished surface with a strong metallic finish
3.Locking Mechanism: Two anti-loosening nuts (DIN 985 type) with blue nylon washers are mounted vertically on the flat mounting surface; bolts pass through the plate to lock the clamp securely to the equipment column or guide rod
4.Hook Structure: The curved opening is precision-machined with a smooth arc surface that fits snugly against the diameter of the cylindrical guide rod or shaft being clamped
5. Structural Features: Unlike the split-jaw design shown in the previous image, this is a single-piece cantilever hook structure that relies on the hook opening for support and bolt tightening to achieve secure fastening
Physical Characteristics
1. Sanitary Design
Made entirely of stainless steel with a smooth, seamless surface that is easy to clean and disinfect, meeting the hygiene standards of the food and beverage industry.
2. Anti-Loosening Locking Mechanism
Nylon-insert anti-loosening nuts maintain a secure grip even under the high-speed rotation and vibration of the filling machine, preventing the fixture from shifting or loosening.
3. One-Piece Quick-Installation
Simply snap the hook onto the guide rod and tighten the two nuts to secure it. This design allows for easy assembly and disassembly, ensuring high efficiency in maintenance and changeovers.
4. Precise Positioning
The curved hook opening is precisely matched to the guide rod and shaft diameter, ensuring high coaxiality and stable operation of lifting or rotating components.
5. Reliable Support
The cantilever hook structure can withstand a certain amount of axial load, serving to support or limit the movement of lifting components.
6. Wear- and Corrosion-Resistant
Stainless steel construction is suitable for environments with moisture and detergent spray, ensuring no rust or deformation even after long-term use.
Core Functions
1.Can Bell / Centering Hood Lift Guide Rod Clamp: In KHS can filling machines (Innofill Can series), the can bell moves up and down via a lift rod to seal the can opening. This fixture is used to guide and secure the lift guide rod, ensuring smooth movement of the can bell and precise centering.
2. Filling Valve Clamping Plate / Bracket: Used to securely clamp the filling valve assembly to the valve seat on the filling machine’s turntable, or to provide auxiliary support for the valve assembly.
3. Lifting Mechanism Limit Stop / Guide: Works in conjunction with the bottle/can lifting mechanism to provide mechanical limit stops or guidance for the lifting stroke, preventing operational misalignment.
4. Star Wheel / Conveyor Component Fixing: Used to secure the positions of conveyor and positioning components such as bottle/can inlet and outlet star wheels and guide plates.
5. Quick Changeover Adjustment: By loosening the lock nut, the clamp position can be adjusted up or down along the guide rod to accommodate production changeovers for containers of different heights and specifications.
What scenarios does it apply to?
KHS Can Filling Lines: Can bell lifting and guiding systems, and filling valve mounting assemblies for the Innofill Can DMD/DVD/C series and other filling machines
KHS PET Bottle Filling Lines: Lifting guide rods and centering hood brackets for the Innofill PET NV/DRV series equipment
Rotary Filling and Capping Machines: Lifting and guiding systems, as well as component mounting assemblies for the filling and capping stations
Applicable Conditions: Medium- to high-speed rotary filling production lines with a capacity ranging from tens of thousands to over 100,000 bottles/cans per hour, operating in humid environments with frequent detergent spraying
Industry Scope: Food and beverage filling industries, including beer, carbonated beverages, fruit juices, bottled water, condiments, and more
*Replacement parts are not manufactured by the original equipment manufacturer. These SPARPAE RTS parts for brands such as KRONES®, SIDEL®, KHS®, SACMI®, AROL®, SIG®, SIPA®, and TECH-LONG® are alternatives to original equipment manufacturer parts; they are primarily manufactured in China and sold worldwide. All product names, trademarks, and brands mentioned are the property of their respective owners, used only for compatibility reference.
