Our products are not OEM, they are only compatible parts
XGY-01158263201
XGY-01158263201
| Quantity: | |
|---|---|
Our products are not OEM, they are only compatible parts.
Product Description

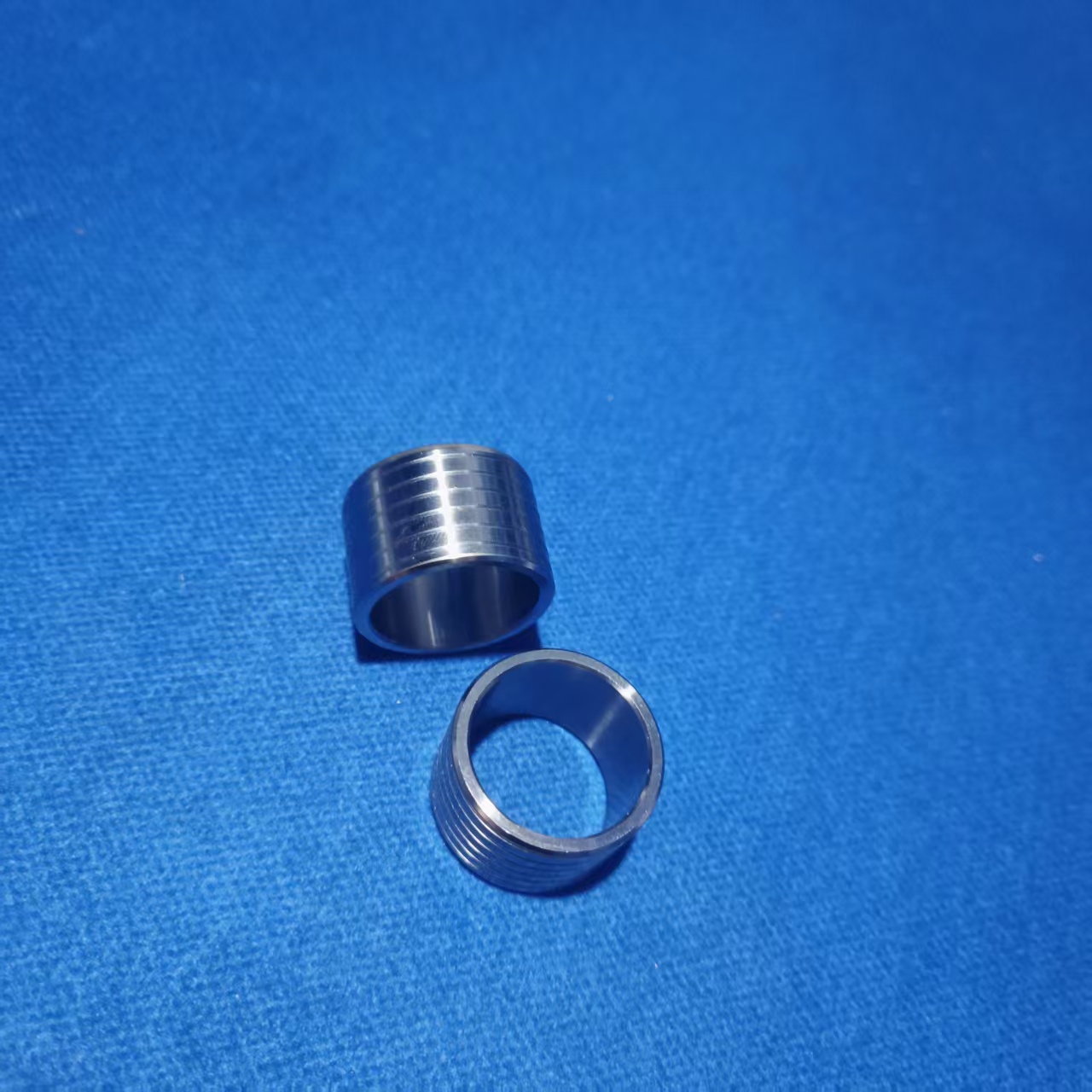

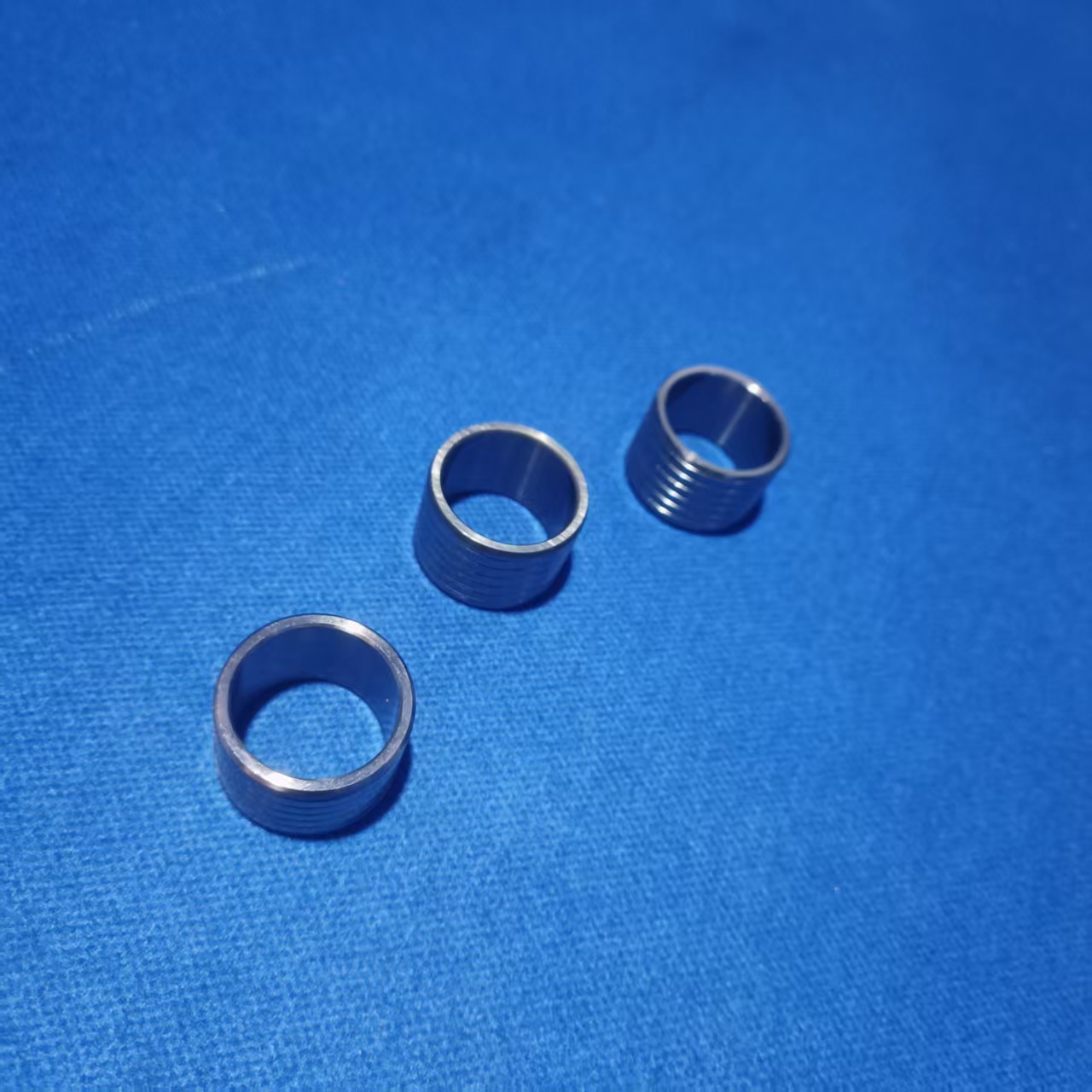

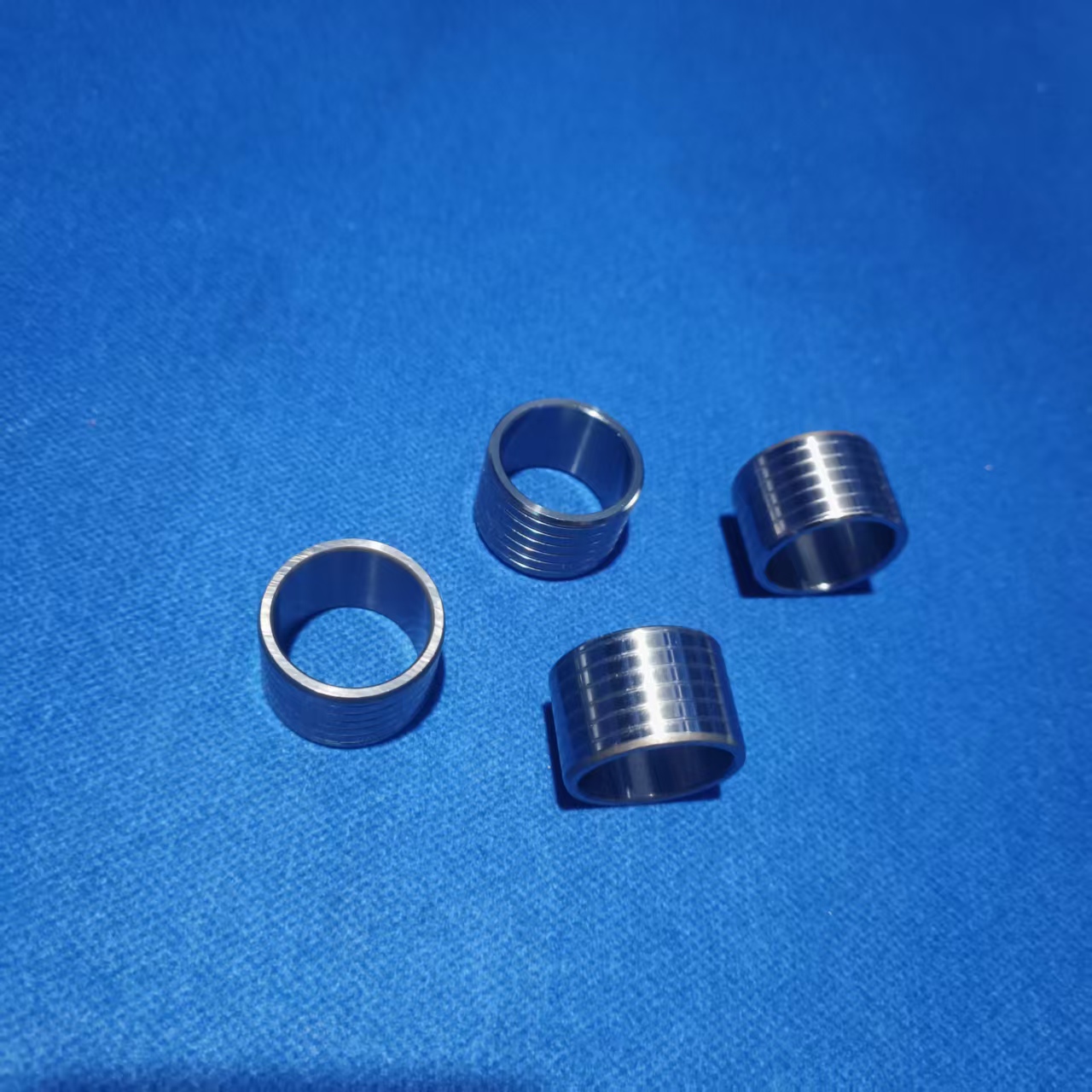

High-precision machined metal ring parts with grooves. The parts are short cylindrical sleeves with a natural silver-gray metallic finish (typically precision-turned from aluminum alloy, stainless steel, or high-strength steel). The middle section of the outer circumference features a distinct annular groove (commonly used for installing snap rings, O-rings, or as a stop/lubrication groove). On the side wall of one of the parts standing upright, there are tiny radial through-holes or blind holes (used for inserting pins, set screws, or injecting oil). The inner wall is smooth, and the part as a whole has a hollow ring structure with uniform wall thickness.
Specific Applications
In Sidel high-speed production lines (such as blow molding machines, filling machines, and star wheels), these rings are commonly used as auxiliary components for shaft fixation, guidance, or sealing. Common specific applications include:
1. Rotating turntables and main shaft mechanisms: Fitted over the drive shaft or the outer side of a bearing, serving as axial spacers, cover liners, or bearing outer ring stops.
2. Pneumatic/hydraulic actuators: Used as guide sleeves, sealing rings, or buffer rings at the ends of piston rods.
Molds and follow-up mechanisms: Used as wear-resistant bushings for precision sliding parts, working in conjunction with internal pins to achieve precise follow-up motion.
Functions
1. Axial Limiting and Locking: By utilizing external grooves in conjunction with elastic retaining rings, or through their own stepped end faces, they securely lock bearings, gears, sliders, and other components in place, preventing axial movement during high-speed operation.
2. Guidance and Friction-Reducing Support: Smooth inner bores are fitted over shafts or guide posts to serve as low-clearance sliding bearings or bushings, reducing wear caused by high-frequency reciprocating motion.
3. Positioning and Sealing Isolation: Small side holes allow for the insertion of set screws to prevent rotation or the injection of grease; when paired with rubber O-rings, they provide a sealed barrier against cleaning fluids or gases.
Features
1. High Concentricity and Wear Resistance: The inner and outer diameters are precision-turned and ground, with extremely tight dimensional tolerances and high cylindricity, ensuring no runout and low noise at high speeds.
2. Corrosion Resistance and Easy Cleaning: The metal construction withstands the frequent CIP/SIP acid, alkali, and high-temperature cleaning cycles typical of beverage plants, as well as high-humidity environments, preventing rust and contamination of production lines.
3. Compact, Integrated Design: Featuring integrated features such as locking grooves and positioning holes, this is a highly customized, standard quick-change small spare part from Sidel.
Disclaimer
Sidel is a registered trademark. Our Ring is a compatible replacement part and not manufactured or endorsed by Sidel.
