Our products are not OEM, they are only compatible parts
XGY-1071552802
XGY-1071552802
| Quantity: | |
|---|---|
.
Our products are not OEM, they are only compatible parts.
Product Description

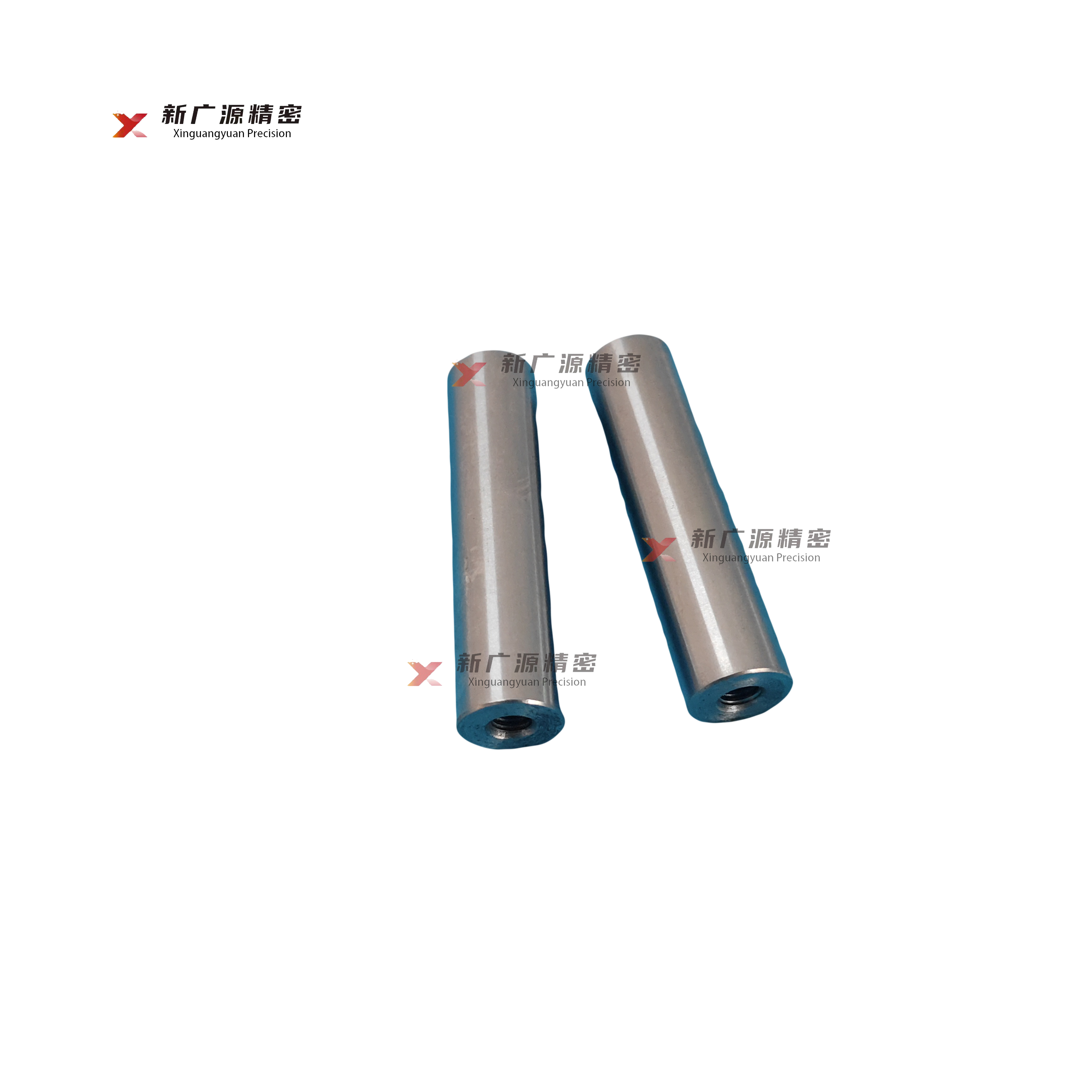

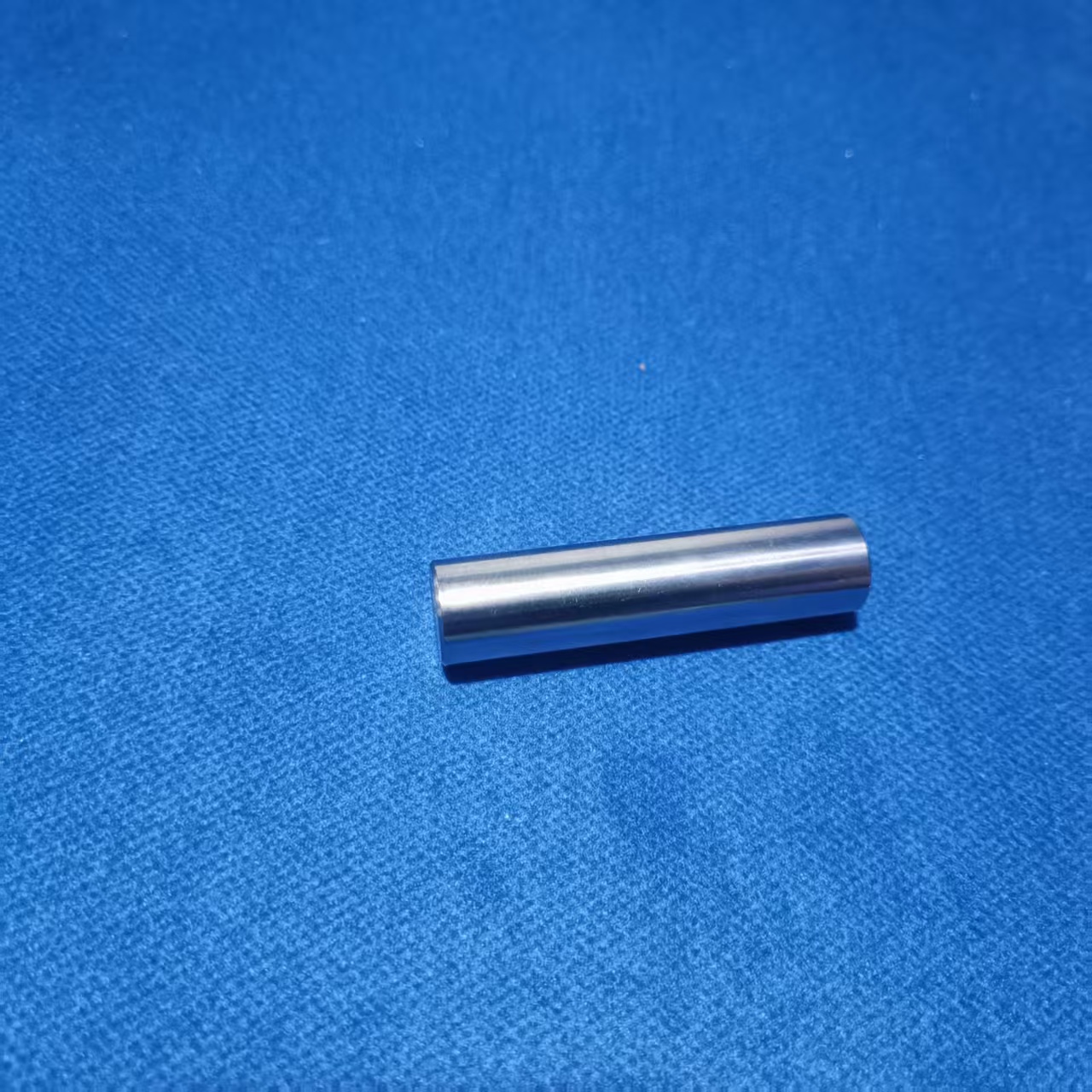

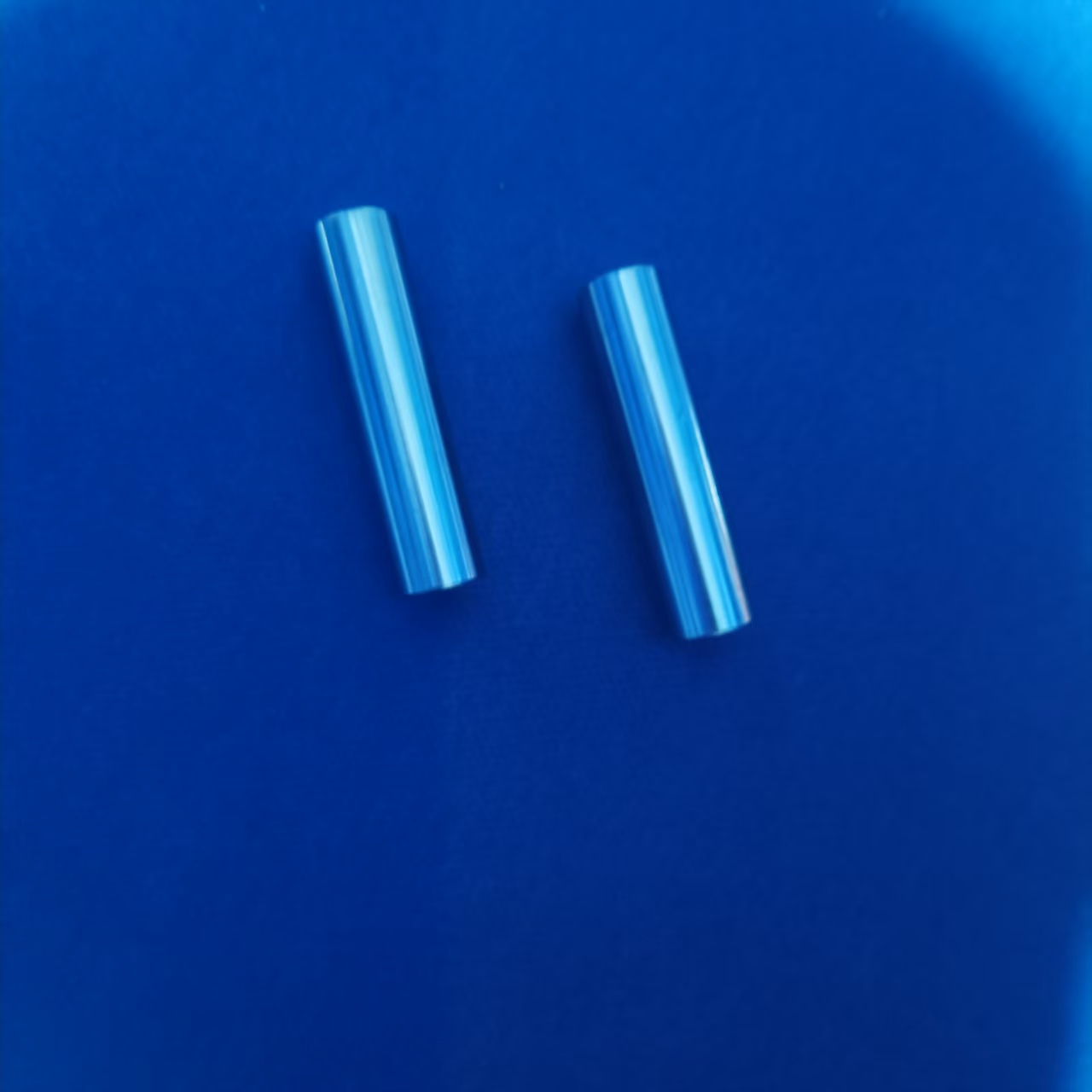

The part has a smooth, silvery-gray metallic finish (typically stainless steel, aluminum alloy, or precision-finished carbon steel). It is shaped like a short cylinder, with a surface that has been precision-turned and polished, and features standard safety chamfers at both ends to prevent burrs and scratches. From a light-and-shadow perspective, it may be a solid pin or a thin-walled hollow sleeve with uniform wall thickness. The surface has no visible external threads or protruding shoulders, making it a minimalist yet highly precise basic transmission component with extremely tight tolerance requirements.
Specific Applications
In Sidel high-speed production lines (such as SBO blow molding machines, EvoFILL filling machines, capping machines, and star wheels), these connecting rods typically serve as pivotal components in mechanical linkage mechanisms. Common specific applications include:
1. Mold opening/closing and bottom mold flipping mechanisms: Acting as articulated connecting rods between forks, pull rods, or cam followers (mating pins for fork components).
2. Pneumatic/servo actuators: As an intermediate connecting shaft linking the cylinder piston rod to grippers, stops, or guide sliders.
3. Conveyor star wheels and guide rail fine adjustment: Used as rotational pivot points or positioning pins for guardrails and bottle-clamping mechanisms.
Functions
1. Articulation and force transmission: Transmits linear or oscillating mechanical power between two or more points, precisely conveying the motion from the drive source (cylinder/cam) to the working end.
2. Rotational Support and Guidance: When inserted as a pin into a U-shaped fork or bearing housing, it provides a low-friction rotational center and withstands shear forces from high-frequency reciprocating or micro-oscillatory motions.
3. Spacing Maintenance (for Sleeve Types): If designed as a hollow sleeve, it can also serve as a spacer to maintain a specific distance, ensuring absolute consistency in assembly clearances.
Sidel is a registered trademark. Our connecting rod is a compatible replacement part and not manufactured or endorsed by Sidel.
